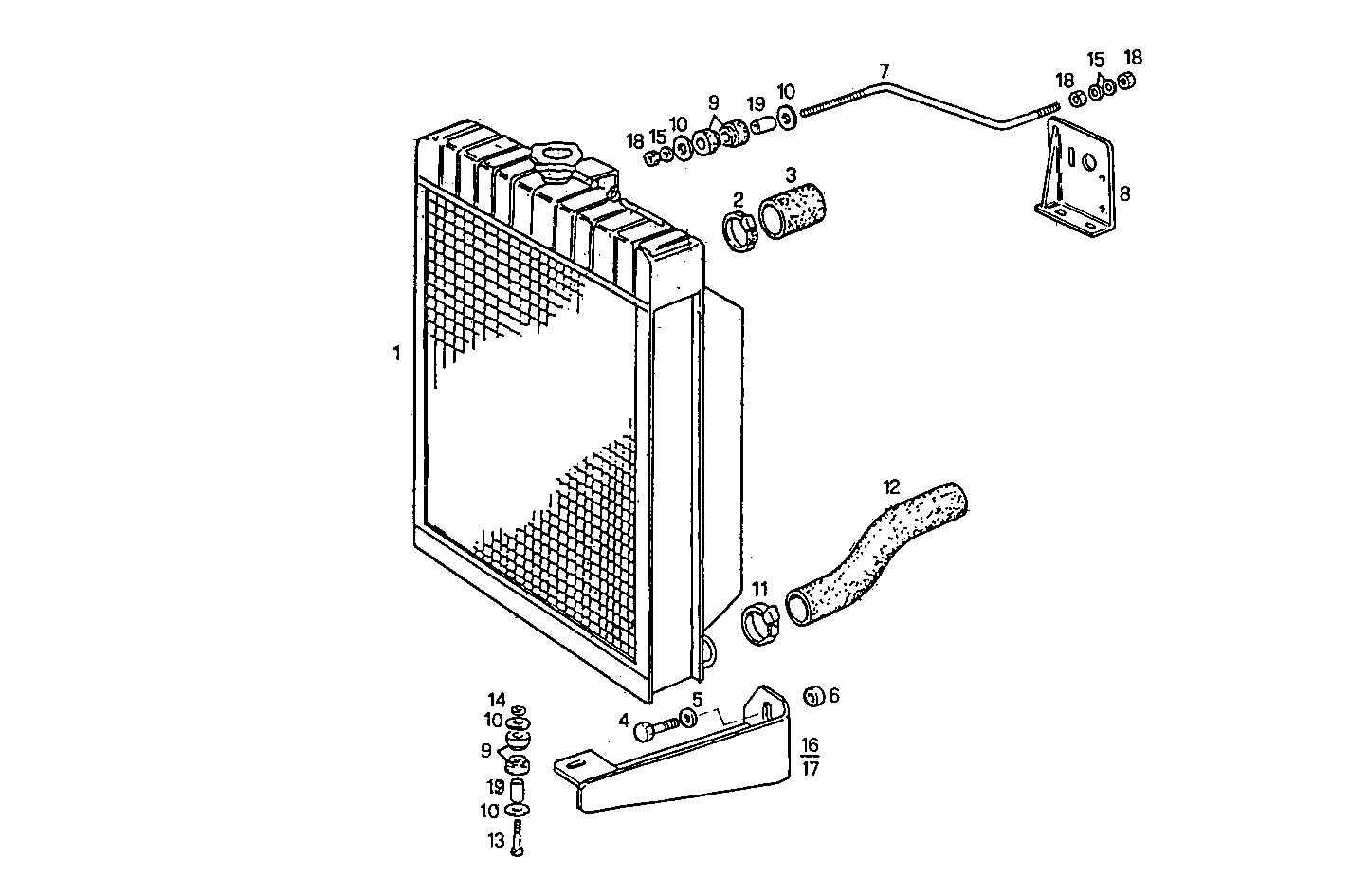

RADIATOR FOR SETTING TILL MAX POWER
8065E00.00A004 — 8065E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025606 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17764891 | CLIP CLIP | 1 | |
| 3 | 8024783 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 4 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 17092174 | SPRING WASHER SPRING WASHER | 4 | |
| 6 | 4934451 | SPACING BAR SPACING BAR | 4 | |
| 7 | 8024390 | TIE ROD TIE ROD | 1 | |
| 8 | 8020521 | RETAINER RETAINER | 1 | |
| 9 | 741569 | RUBBER PAD RUBBER PAD | 6 | |
| 10 | 741570 | WASHER WASHER | 6 | |
| 11 | 17764791 | CLIP CLIP | 1 | |
| 12 | 8025615 | WATER HOSE WATER HOSE | 1 | |
| 13 | 16608524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17090271 | WASHER WASHER | 2 | |
| 15 | 17091074 | WASHER WASHER | 2 | |
| 16 | 8104586 | SUPPORT SUPPORT | 1 | |
| 17 | 8104584 | SUPPORT SUPPORT | 1 | |
| 18 | 17038421 | HEXAGON NUT HEXAGON NUT | 4 | |
| 19 | 8108634 | SPACING BAR SPACING BAR | 3 |
