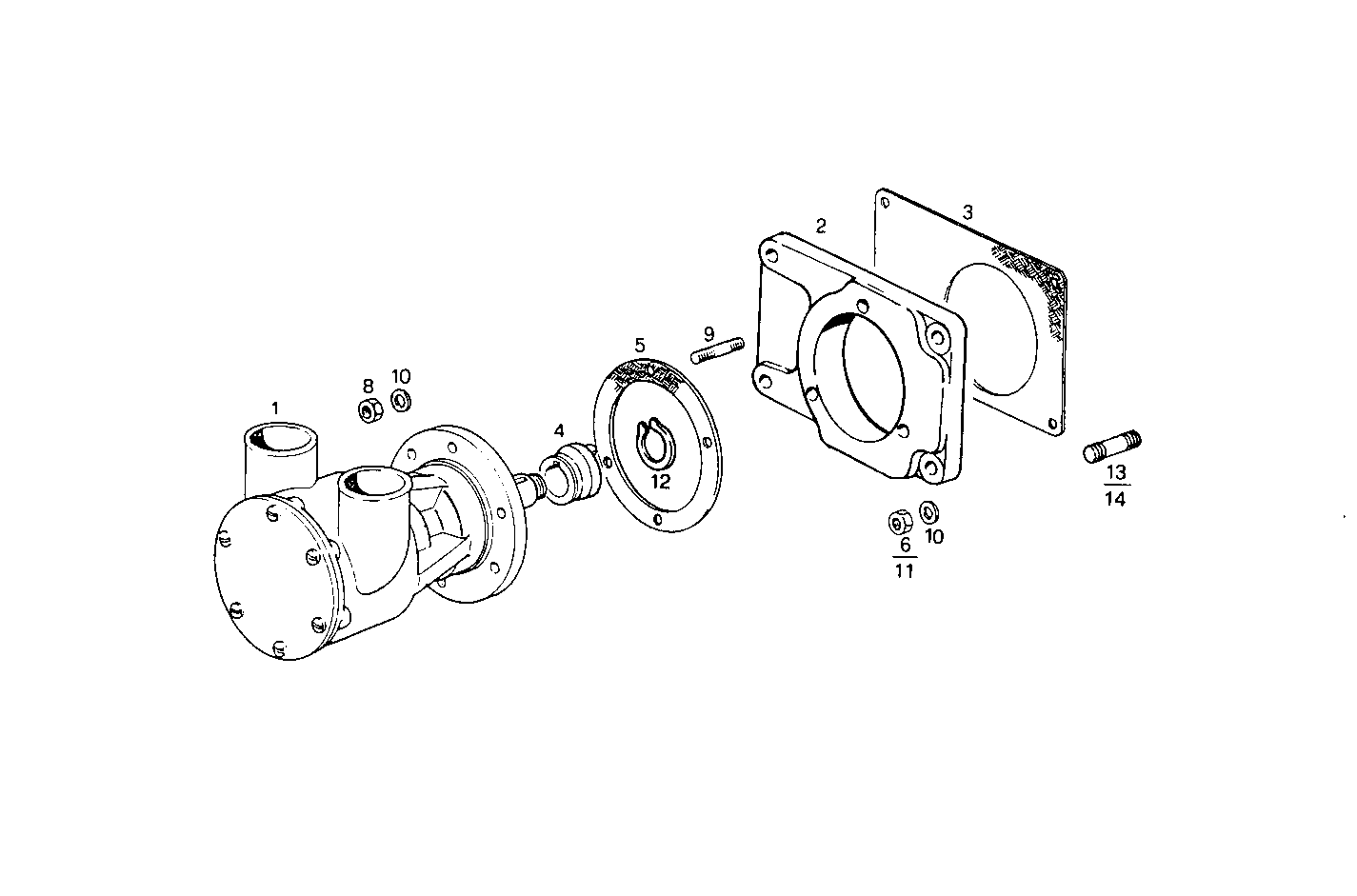

SEA WATER PUMP
8065M12.00 — 8065M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8027301 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 8027305 | SUPPORT SUPPORT | 1 | |
| 3 | 500318720 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 8023393 | PTO CLUTCH PTO CLUTCH | 1 | |
| 5 | 8008734 | GASKET GASKET | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 9 | 16729324 | STUD STUD | 3 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 11 | 16979431 | NUT NUT | 2 | |
| 12 | 17084476 | CIRCLIP CIRCLIP | 1 | |
| 13 | 16746524 | STUD STUD | 2 | |
| 14 | 16746624 | STUD STUD | 2 |
