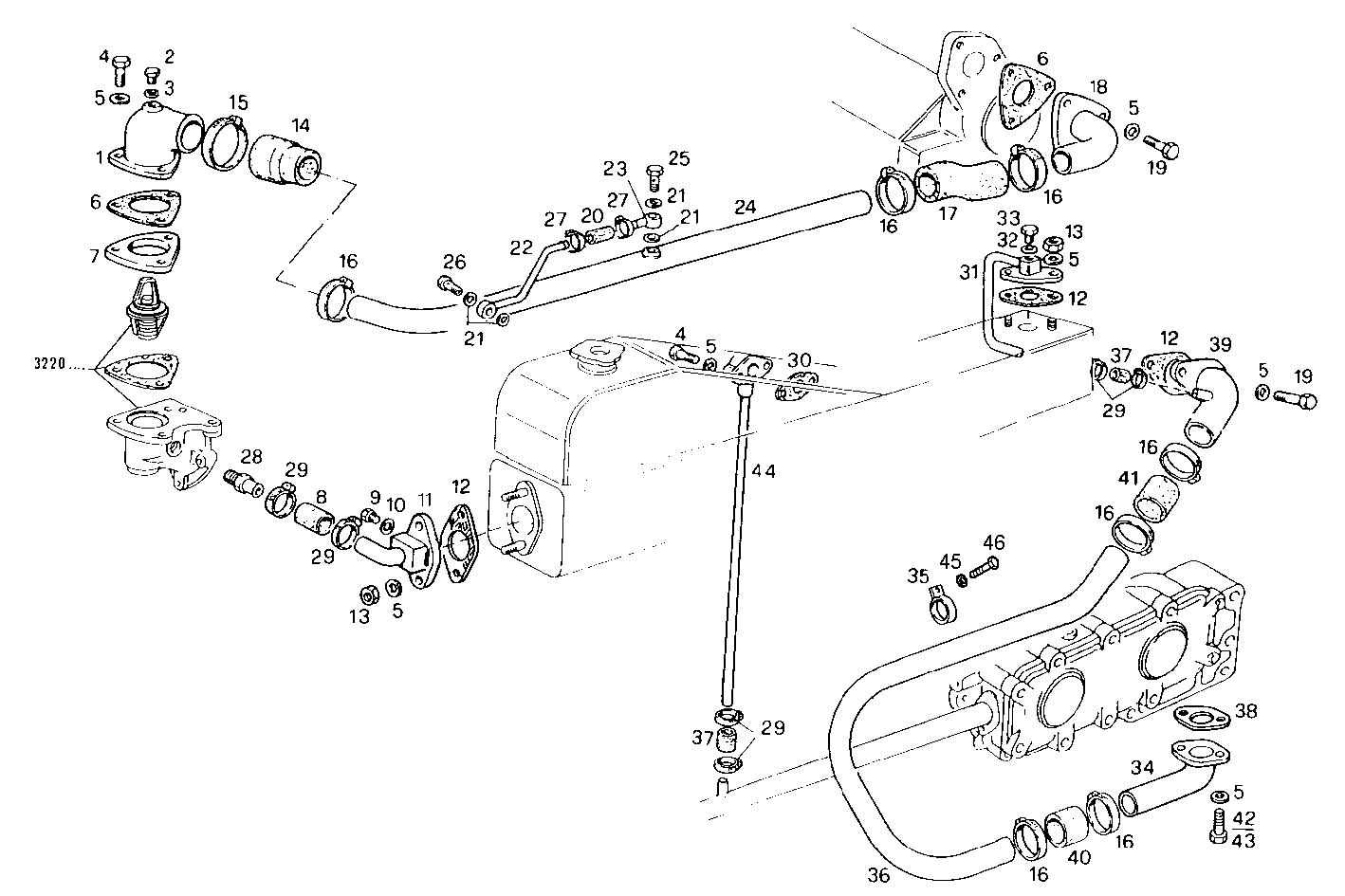

WATER LINES
8065M12.00 — 8065M12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107202 | WATER PIPE WATER PIPE | 1 | |
| 2 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 3 | 4858607 | WASHER WASHER | 1 | |
| 4 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 16 | |
| 6 | 98420754 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 7 | 8107226 | SPACING BAR SPACING BAR | 1 | |
| 8 | 98418717 | WATER HOSE WATER HOSE | 1 | |
| 9 | 16992340 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 8107731 | WATER PIPE WATER PIPE | 1 | |
| 12 | 8009640 | GASKET GASKET | 3 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 14 | 98447313 | WATER HOSE WATER HOSE | 1 | |
| 15 | 17764893 | CLIP CLIP | 7 | |
| 16 | 17764793 | CLIP CLIP | 7 | |
| 17 | 4927830 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 18 | 8107720 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 21 | 4858607 | WASHER WASHER | 4 | |
| 21 | 8110257 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8011350 | WATER PIPE WATER PIPE | 1 | |
| 23 | 4722869 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 24 | 8111187 | WATER PIPE WATER PIPE | 1 | |
| 25 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 26 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 27 | 18088293 | CLIP CLIP | 4 | |
| 28 | 4760312 | THREADED UNION THREADED UNION | 1 | |
| 29 | 17764693 | CLIP CLIP | 6 | |
| 30 | 4853970 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 31 | 8107733 | WATER PIPE WATER PIPE | 1 | |
| 32 | 4858609 | WASHER WASHER | 1 | |
| 33 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 34 | 8026668 | WATER PIPE WATER PIPE | 1 | |
| 35 | 8027280 | CLIP CLIP | 1 | |
| 36 | 8027037 | WATER PIPE WATER PIPE | 1 | |
| 37 | 17737687 | WATER HOSE WATER HOSE | 1 | |
| 38 | 4779623 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 39 | 8107434 | WATER PIPE WATER PIPE | 1 | |
| 40 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 41 | 4644083 | WATER HOSE WATER HOSE | 1 | |
| 42 | 16043721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 43 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 44 | 8027040 | WATER HOSE WATER HOSE | 1 | |
| 45 | 17816214 | SPACER SPACER | 1 | |
| 46 | 16602224 | HEXAGON BOLT HEXAGON BOLT | 1 |
