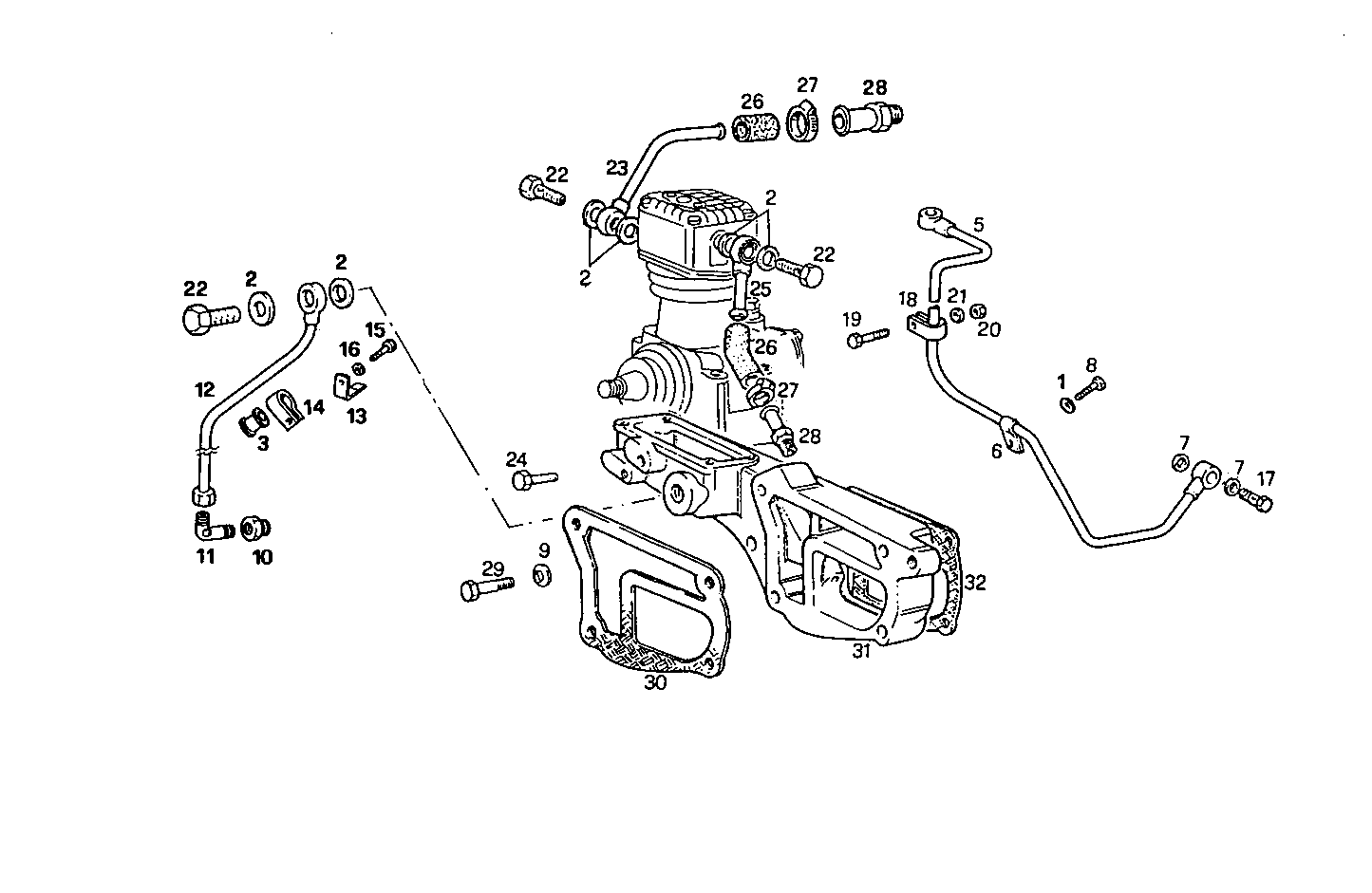

AIR COMPRESSOR
8065SE00.00 — 8065SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17095104 | WASHER WASHER | 1 | |
| 2 | 4858609 | WASHER WASHER | 8 | |
| 3 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 4 | 4608943 | OIL LINE OIL LINE | 1 | |
| 5 | 8110959 | WATER PIPE WATER PIPE | 1 | |
| 6 | 4933030 | RETAINER RETAINER | 1 | |
| 7 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 8 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 10 | 8008802 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 8110268 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8022328 | OIL LINE OIL LINE | 1 | |
| 13 | 8107409 | RETAINER RETAINER | 1 | |
| 14 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 18 | 17316190 | PIPE CLIP PIPE CLIP | 1 | |
| 19 | 16602124 | SCREW SCREW | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 21 | 17094914 | WASHER WASHER | 1 | |
| 22 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 23 | 8010977 | WATER PIPE WATER PIPE | 1 | |
| 24 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 25 | 8010879 | WATER PIPE WATER PIPE | 1 | |
| 26 | 98425477 | WATER HOSE WATER HOSE | 2 | |
| 27 | 12179590 | CLIP CLIP | 4 | |
| 28 | 4616630 | THREADED UNION THREADED UNION | 2 | |
| 29 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 30 | 98400776 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 31 | 4601828 | SUPPORT SUPPORT | 1 | |
| 32 | 98400779 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 |
