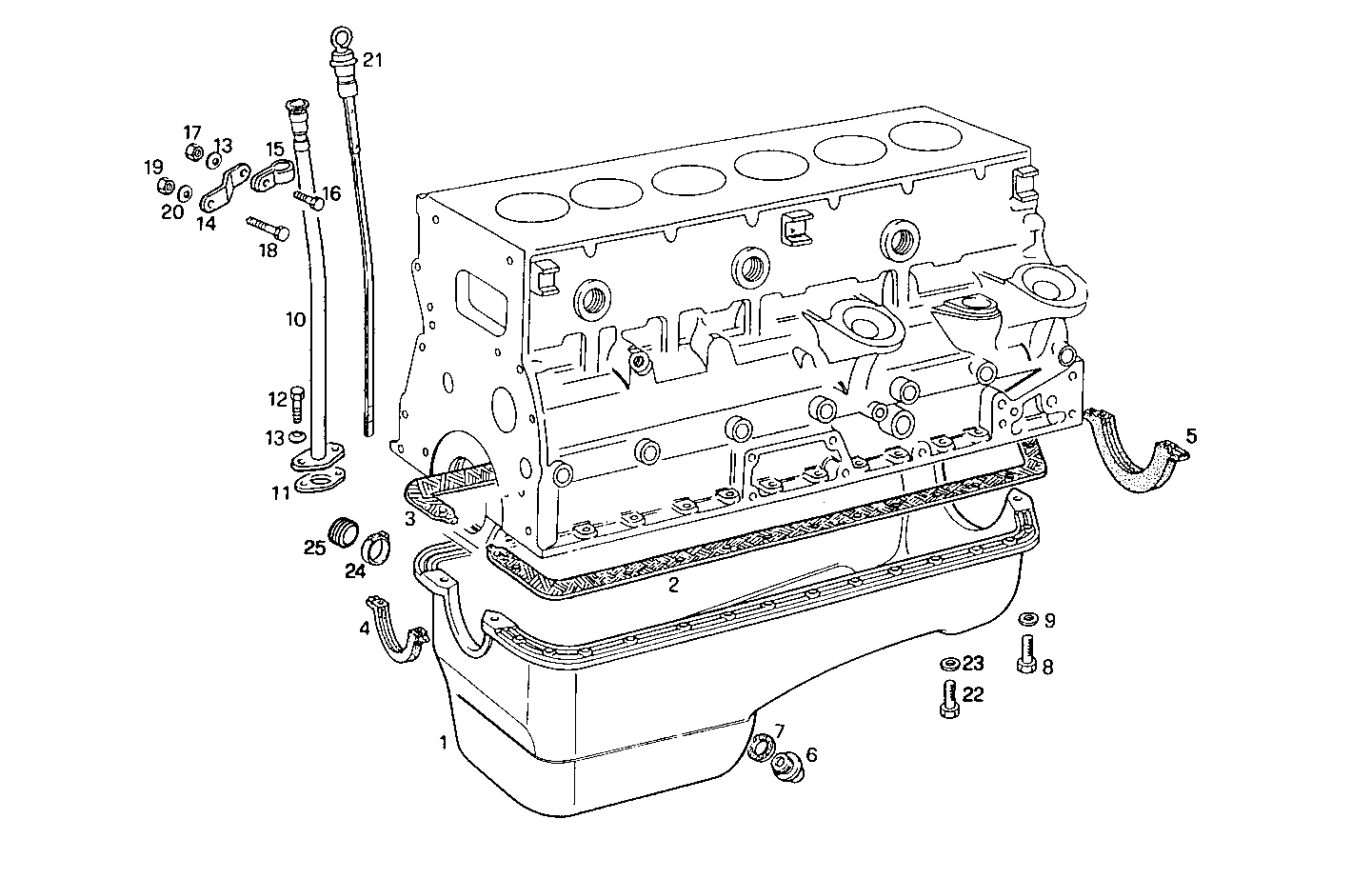

OIL SUMP
8065SE00.00 — 8065SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112361 | OIL SUMP OIL SUMP | 1 | |
| 2 | 8030309 | GASKET GASKET | 1 | |
| 3 | 8030308 | GASKET GASKET | 1 | |
| 4 | 4031577 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 5 | 4600753 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 6 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 10263460 | WASHER WASHER | 1 | |
| 8 | 10923021 | HEXAGON BOLT HEXAGON BOLT | 29 | |
| 9 | 17095004 | WASHER WASHER | 29 | |
| 10 | 8112429 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 11 | 98401052 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 12 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 14 | 4929652 | RETAINER RETAINER | 1 | |
| 15 | 4930515 | CLIP CLIP | 1 | |
| 16 | 16043521 | SCREW SCREW | 1 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 17088474 | WASHER WASHER | 1 | |
| 21 | 8112430 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 22 | 10923421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 23 | 17095014 | WASHER WASHER | 2 | |
| 24 | 4849356 | PLUG PLUG | 1 | |
| 25 | 17764791 | CLIP CLIP | 1 |
