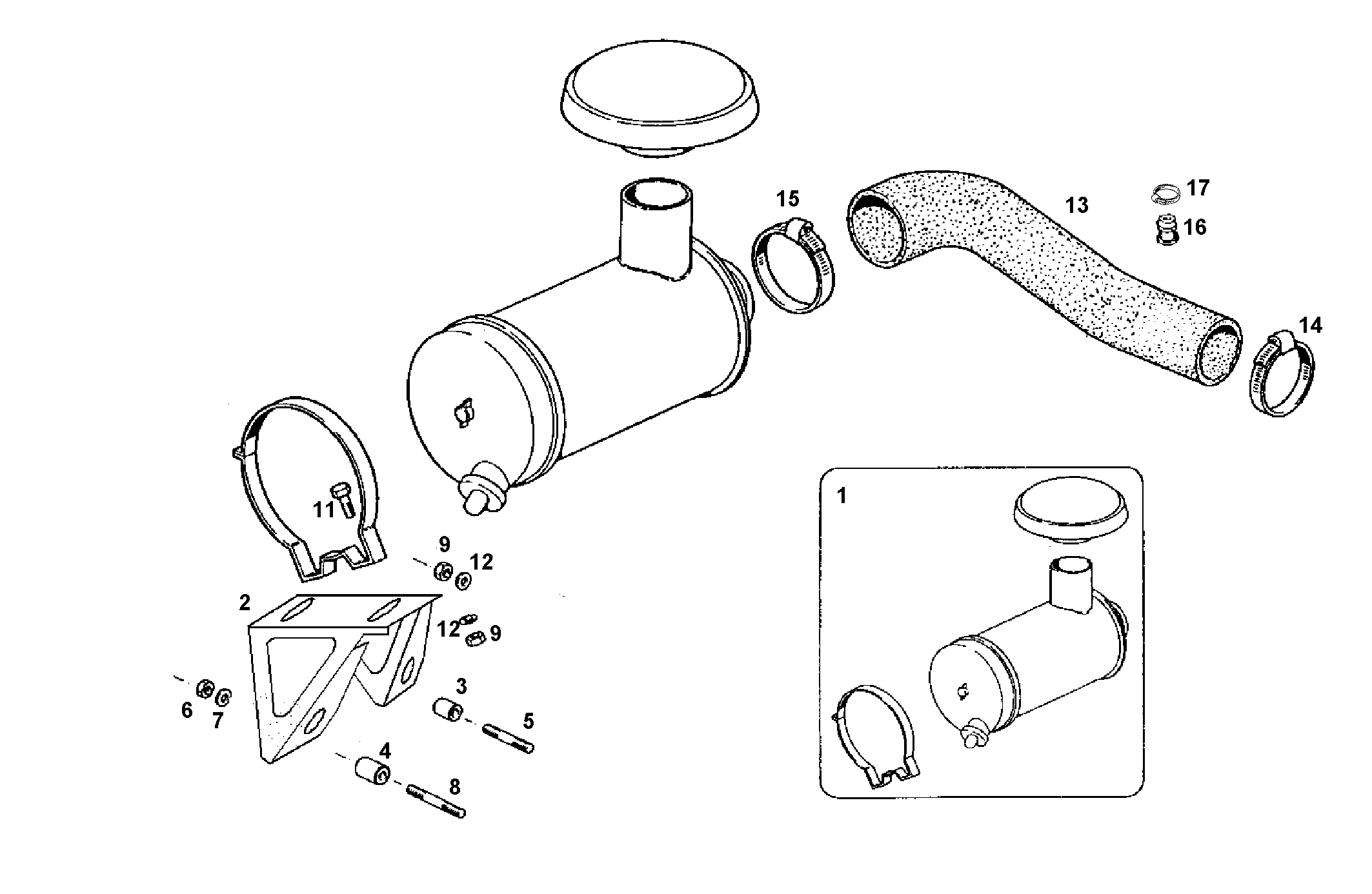

DRY AIR CLEANER
8065SE00.00A801 — 8065SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031857 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 503110073 | SUPPORT SUPPORT | 1 | |
| 3 | 8015452 | SPACING BAR SPACING BAR | 1 | |
| 4 | 8015453 | SPACING BAR SPACING BAR | 1 | |
| 5 | 16729524 | STUD STUD | 1 | |
| 6 | 17038131 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 16731524 | STUD STUD | 1 | |
| 9 | 17037921 | NUT NUT | 3 | |
| 11 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 13 | 8020620 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 14 | 17765191 | CLIP CLIP | 1 | |
| 15 | 17765391 | CLIP CLIP | 1 | |
| 16 | 8033284 | PLUG PLUG | 1 | |
| 17 | 18088493 | CLIP CLIP | 1 |
