AIR COMPRESSOR
8065SRE10.00 — 8065SRE10

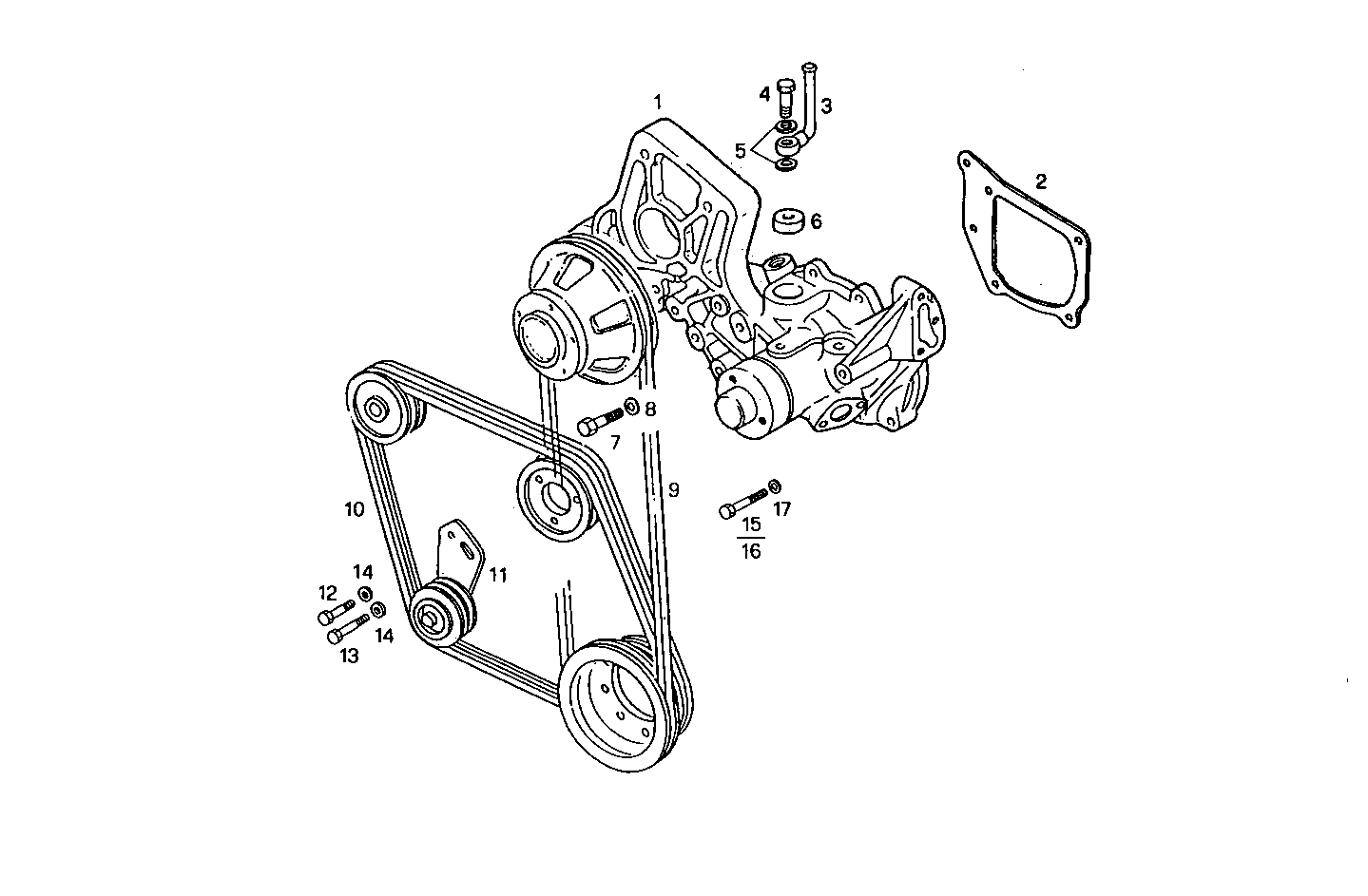

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98415831 | WATER PUMP WATER PUMP | 1 | |
| 2 | 4842822 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8016621 | WATER PIPE WATER PIPE | 1 | |
| 4 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 5 | 4858607 | WASHER WASHER | 2 | |
| 6 | 8013358 | PLUG PLUG | 1 | |
| 7 | 16045721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 98454857 | V-BELT V-BELT | 1 | |
| 10 | 4838851 | V-BELT V-BELT | 1 | |
| 11 | 98429847 | BELT TENSIONER BELT TENSIONER | 1 | |
| 12 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 11227921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17793904 | WASHER WASHER | 2 | |
| 15 | 15971921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 15972321 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 17 | 17090174 | SPRING WASHER SPRING WASHER | 4 |
