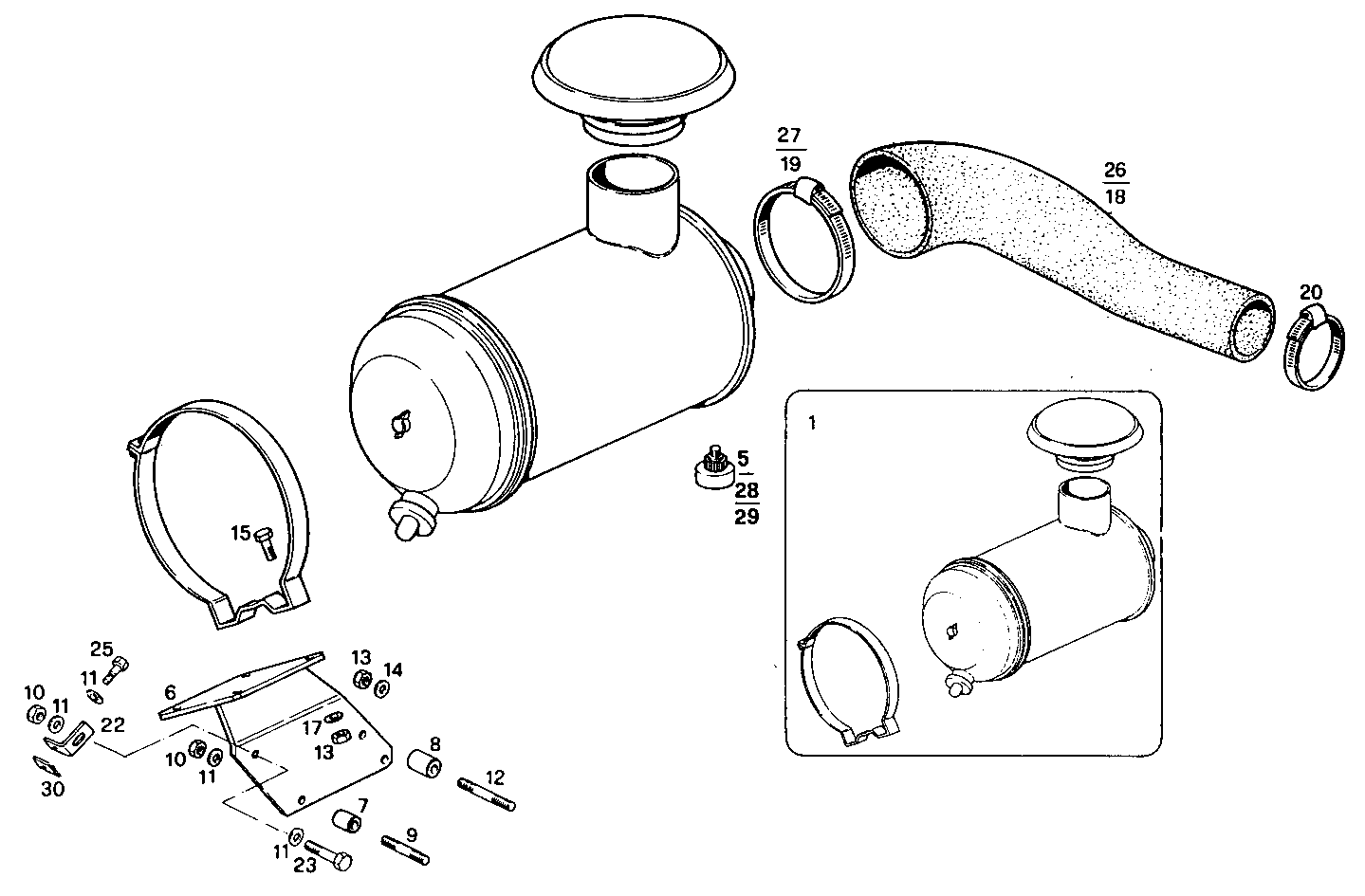

DRY AIR CLEANER
8065SRE10.00 — 8065SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016739 | AIR CLEANER AIR CLEANER | 1 | |
| 5 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 6 | 8014570 | SUPPORT SUPPORT | 1 | |
| 7 | 8016787 | SPACING BAR SPACING BAR | 1 | |
| 8 | 8005312 | SPACING BAR SPACING BAR | 2 | |
| 9 | 13518121 | STUD STUD | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 16732324 | STUD STUD | 2 | |
| 13 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 | |
| 14 | 17090474 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 18 | 8016788 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 17765791 | CLIP CLIP | 1 | |
| 20 | 17765191 | CLIP CLIP | 1 | |
| 22 | 8011468 | RETAINER RETAINER | 1 | |
| 23 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 16606024 | SCREW SCREW | 1 | |
| 26 | 8017041 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 27 | 17765391 | CLIP CLIP | 1 | |
| 28 | 8022540 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 29 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 30 | 8101217 | PLATE PLATE | 1 |
