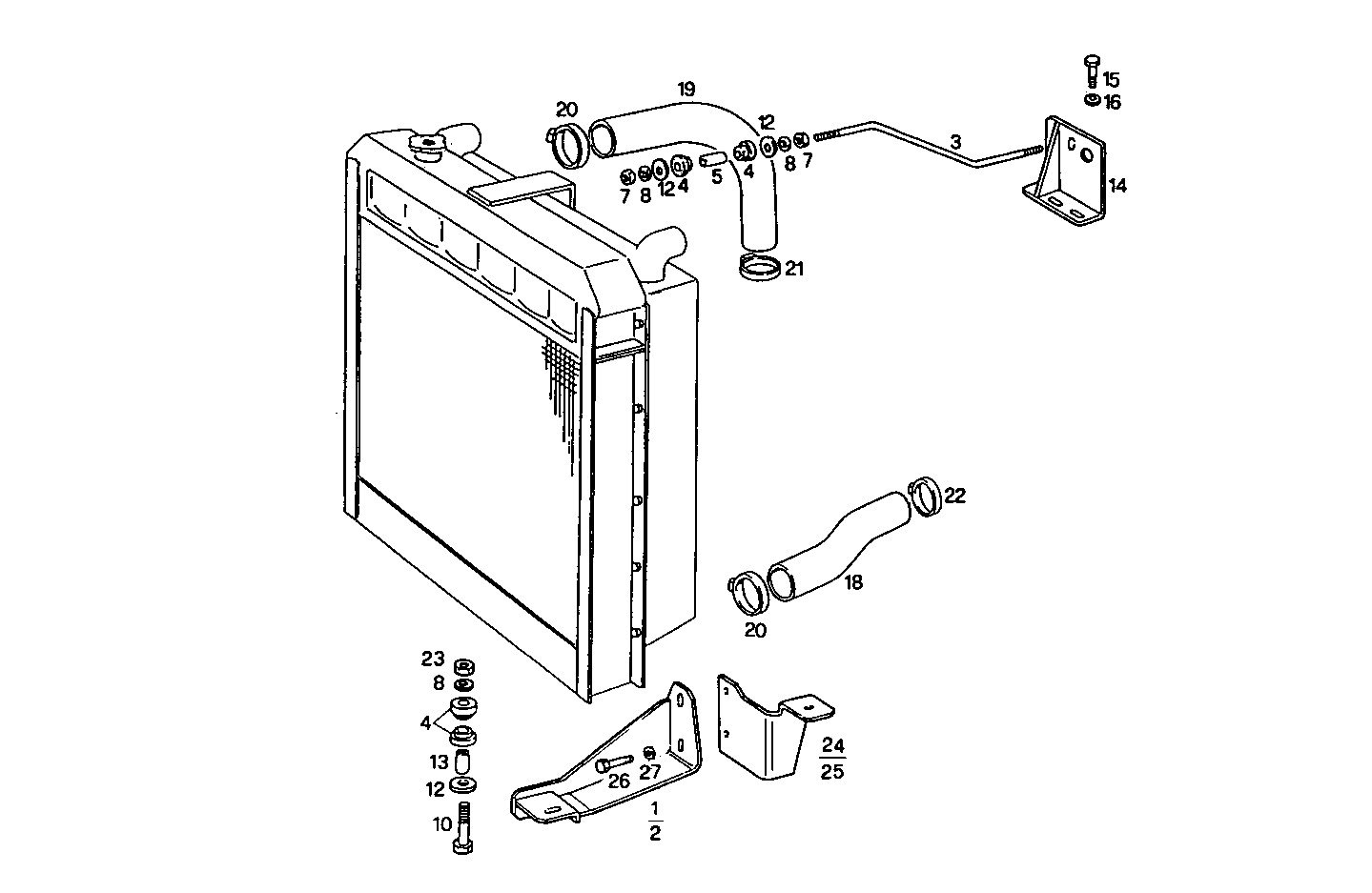

RADIATOR
8065SRU26.04A581 — 8065SRU26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008619 | SUPPORT SUPPORT | 1 | |
| 2 | 8008618 | SUPPORT SUPPORT | 1 | |
| 3 | 8113317 | TIE ROD TIE ROD | 1 | |
| 4 | 741569 | RUBBER PAD RUBBER PAD | 6 | |
| 5 | 741571 | SPACING BAR SPACING BAR | 1 | |
| 6 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 7 | 17038621 | NUT NUT | 6 | |
| 8 | 17091374 | SPRING WASHER SPRING WASHER | 6 | |
| 10 | 16610724 | SCREW SCREW | 2 | |
| 12 | 741570 | WASHER WASHER | 6 | |
| 13 | 8108634 | SPACING BAR SPACING BAR | 2 | |
| 14 | 8020521 | RETAINER RETAINER | 1 | |
| 15 | 16605424 | SCREW SCREW | 2 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 17 | 8008234 | WATER PIPE WATER PIPE | 1 | |
| 18 | 8024997 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 19 | 8025744 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 20 | 98490783 | CLIP CLIP | 2 | |
| 21 | 17764891 | CLIP CLIP | 1 | |
| 22 | 17764791 | CLIP CLIP | 1 | |
| 23 | 17038421 | HEXAGON NUT HEXAGON NUT | 2 | |
| 24 | 8106383 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 25 | 8106384 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 26 | 11390521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 27 | 17092171 | WASHER WASHER | 4 |
