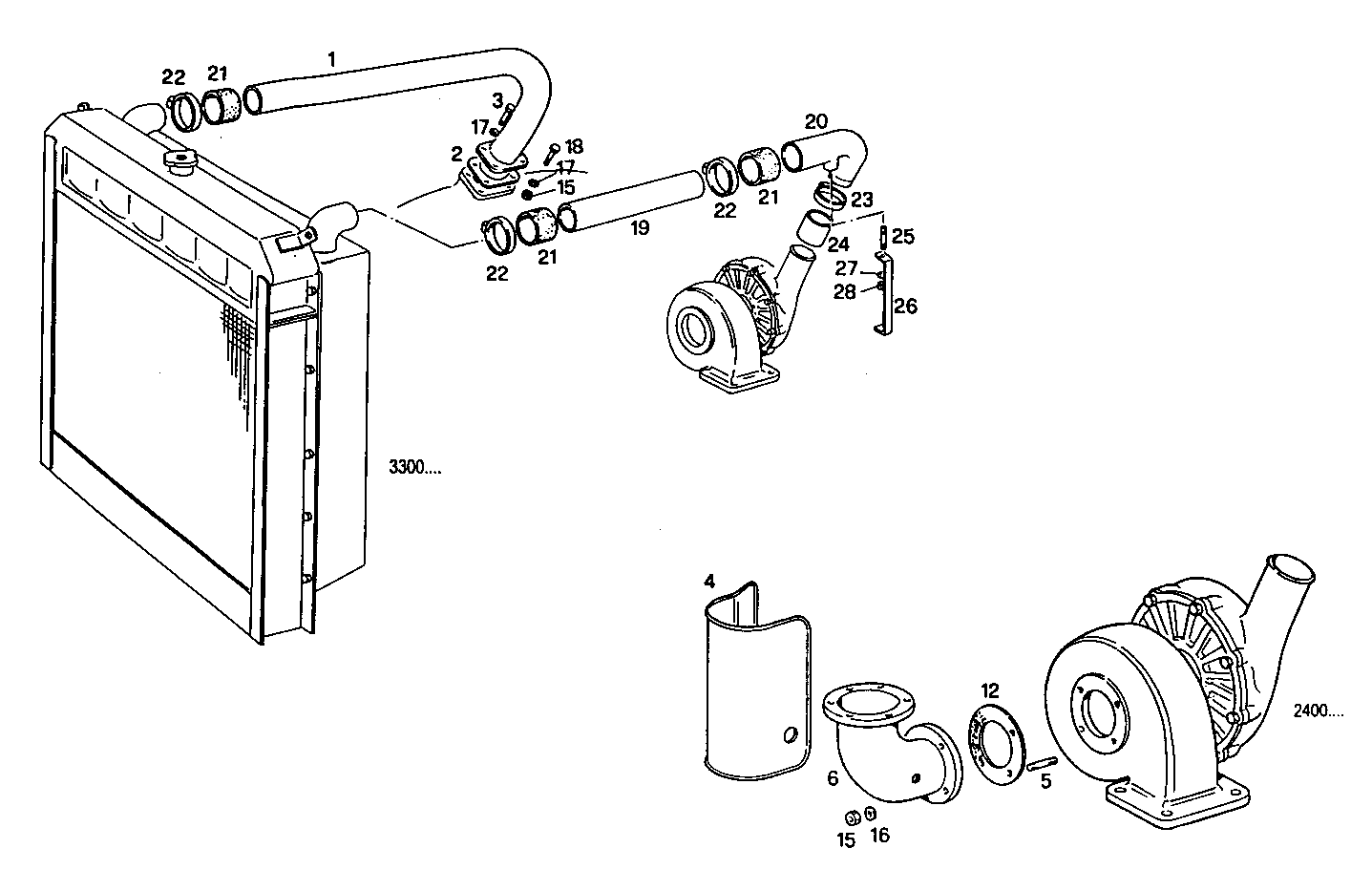

SUPERCHARGING LINES
8065SRU26.04A581 — 8065SRU26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022100 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 98400790 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 8008237 | PROTECTION PROTECTION | 1 | |
| 5 | 16729424 | STUD STUD | 4 | |
| 6 | 8105001 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 12 | 4734747 | GASKET GASKET | 1 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 16 | 17089471 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 17094914 | WASHER WASHER | 4 | |
| 18 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 8018708 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 8008230 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 21 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 22 | 8019910 | CLIP CLIP | 6 | |
| 23 | 4830090 | CLIP CLIP | 2 | |
| 24 | 98421377 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 13449221 | STUD STUD | 1 | |
| 26 | 8008232 | RETAINER RETAINER | 1 | |
| 27 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 28 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 |
