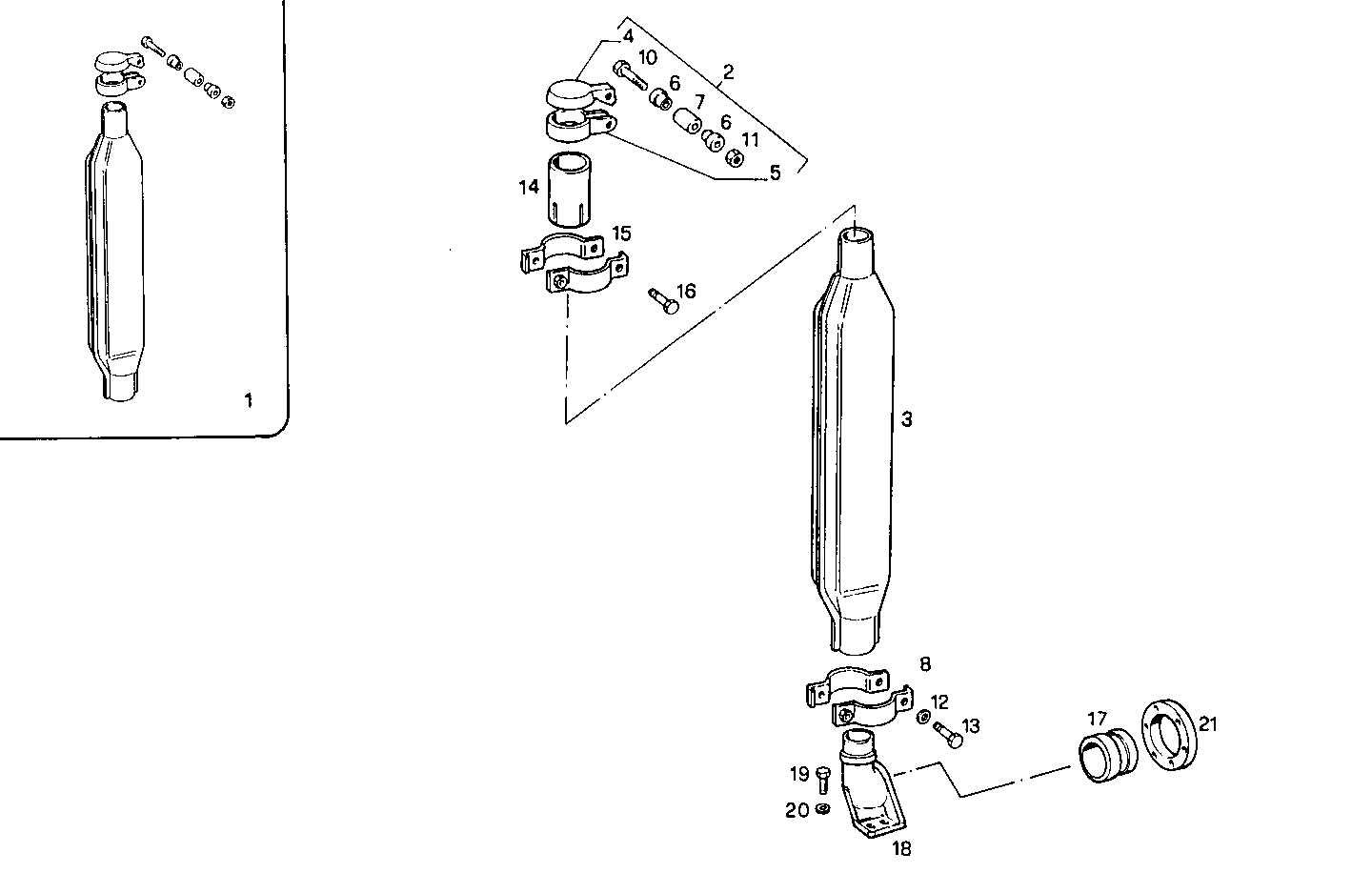

VERTICAL SILENCER
8065SU00.00 — 8065SU00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014907 | SILENCER SILENCER | 1 | |
| 2 | 5140885 | COVER COVER | 1 | |
| 3 | 5146629 | SILENCER SILENCER | 1 | |
| 4 | 5134341 | COVER COVER | 1 | |
| 5 | 5134340 | CLIP CLIP | 1 | |
| 6 | 5134344 | BUSH BUSH | 2 | |
| 7 | 5134343 | SPACING BAR SPACING BAR | 1 | |
| 8 | 5116800 | CLIP CLIP | 2 | |
| 10 | 16602424 | SCREW SCREW | 1 | |
| 11 | 17156821 | NUT NUT | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 8015188 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 15 | 5116798 | CLIP CLIP | 2 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 4719238 | CIRCLIP CIRCLIP | 1 | |
| 18 | 4719116 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 19 | 11306921 | SCREW SCREW | 2 | |
| 20 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 98402022 | FLANGE FLANGE | 1 |
