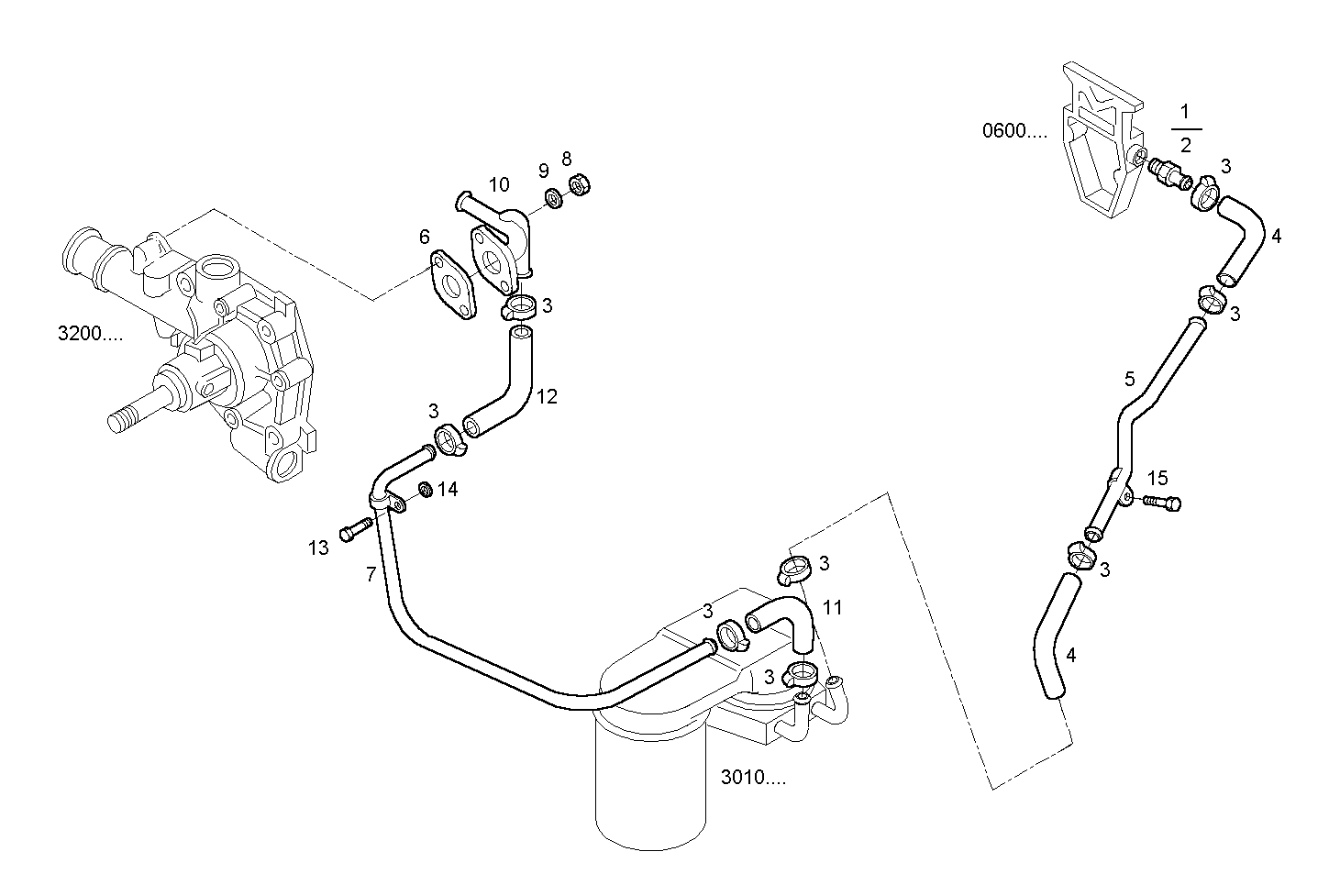

WATER LINES
8140.43.3941 — 8140.43
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98433822 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 2 | 99447076 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 3 | 18088392 | CLIP CLIP | 8 | |
| 4 | 98433754 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 5 | 500332068 | WATER PIPE WATER PIPE | 1 | |
| 6 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 98433796 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 98433830 | WATER PIPE WATER PIPE | 1 | |
| 11 | 99443116 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 500361357 | WATER HOSE WATER HOSE | 1 | |
| 13 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 7303601 | SPACING BAR SPACING BAR | 1 | |
| 15 | 16597924 | HEXAGON BOLT HEXAGON BOLT | 1 |
