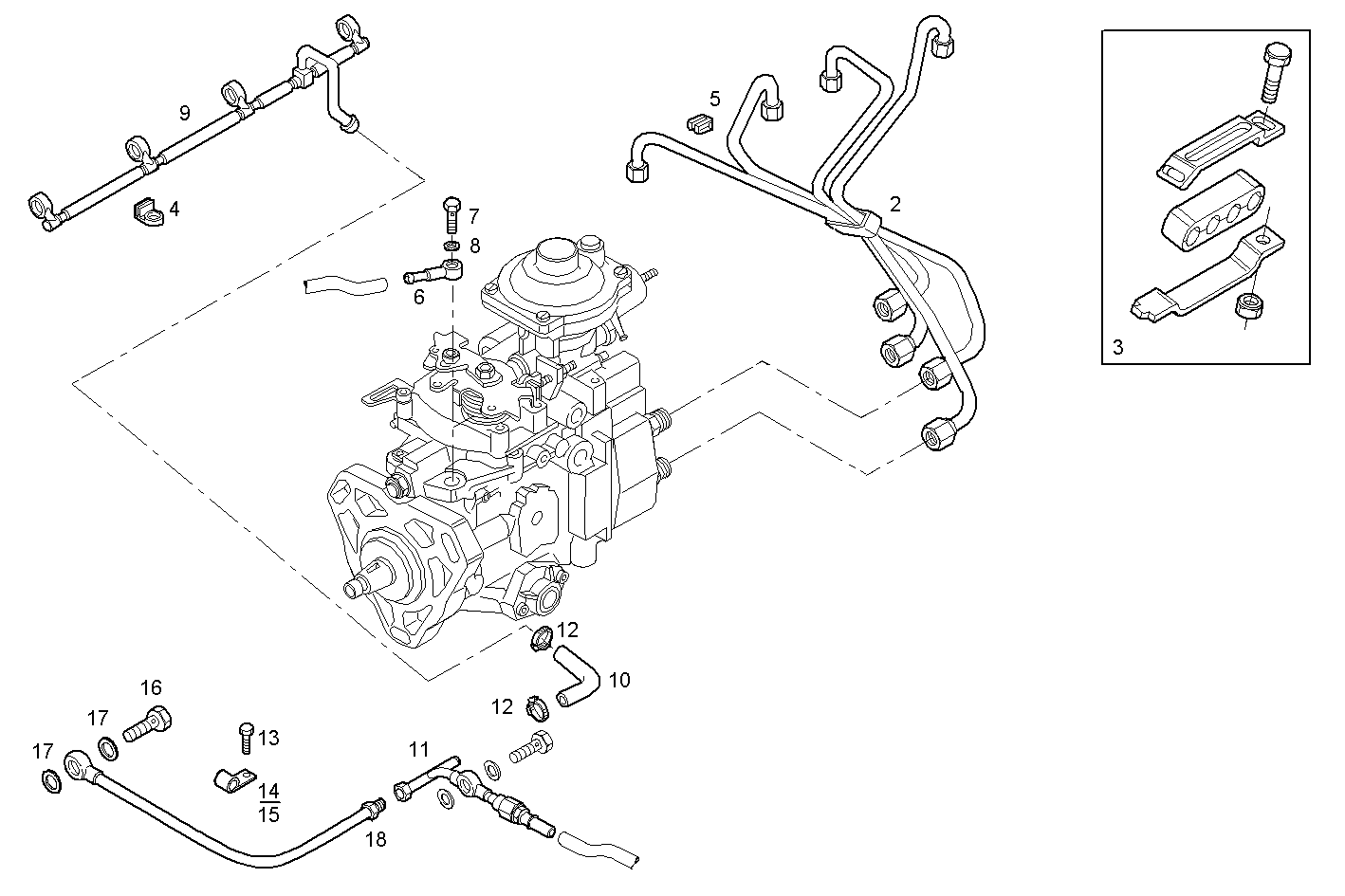

INJECTION PIPES
8140.43C.2590 — 8140.43
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 2 | 99443745 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 3 | 500302833 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 4734007 | RETAINER RETAINER | 1 | |
| 5 | 4734008 | RETAINER RETAINER | 1 | |
| 6 | 500327420 | THREADED UNION THREADED UNION | 1 | |
| 7 | 10181711 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 4858607 | WASHER WASHER | 4 | |
| 9 | 7303520 | FUEL LINE FUEL LINE | 1 | |
| 10 | 17724587 | RUBBER HOSE RUBBER HOSE | 1 | |
| 11 | 500332069 | FUEL LINE FUEL LINE | 1 | |
| 12 | 18088192 | CLIP CLIP | 2 | |
| 13 | 16596924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17314590 | RETAINER RETAINER | 2 | |
| 15 | 17314490 | CLIP CLIP | 1 | |
| 16 | 7303136 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 10260160 | SEAL GASKET SEAL GASKET | 2 | |
| 18 | 500352220 | FUEL LINE FUEL LINE | 1 |
