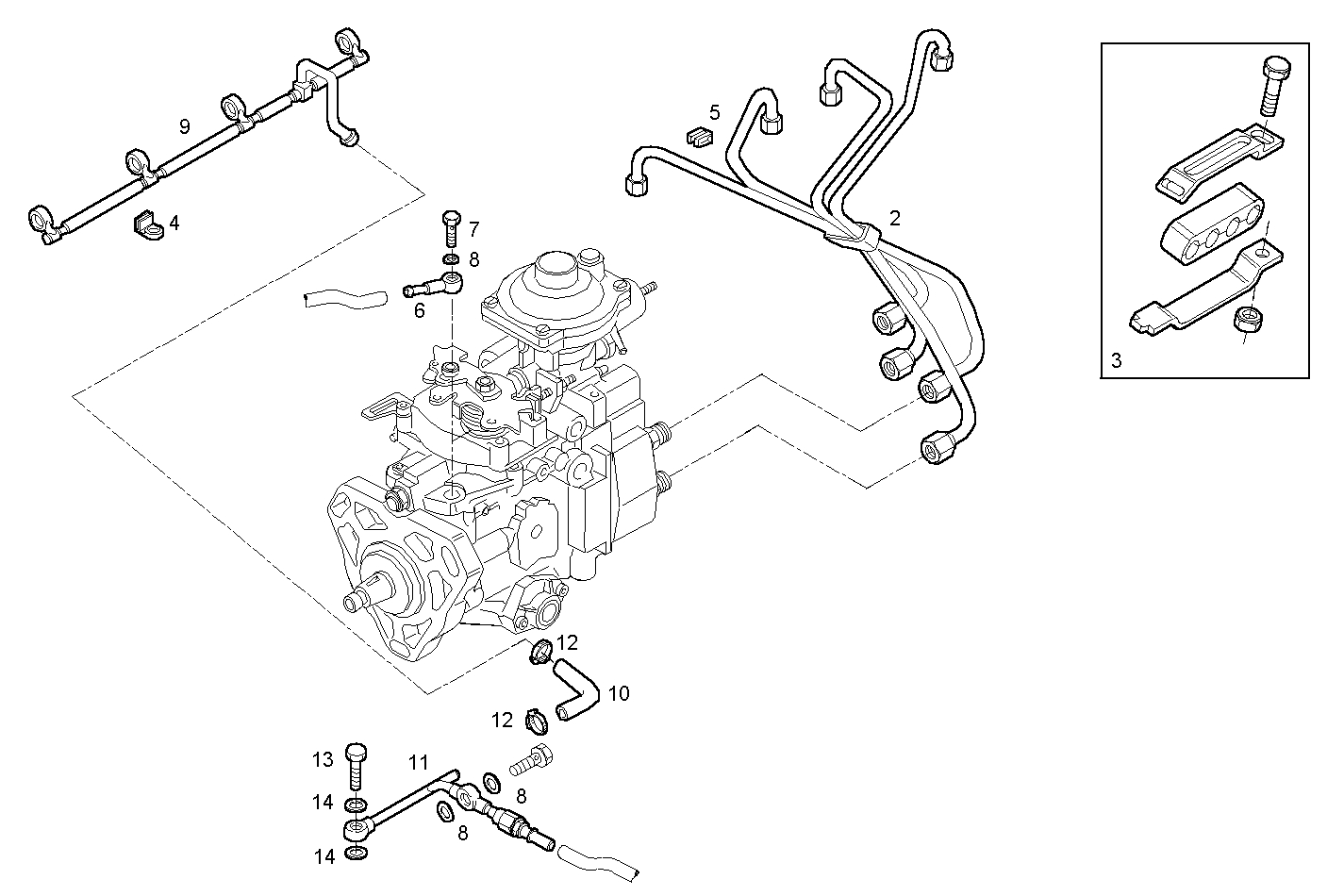

INJECTION PIPES
8140.43C.3941 — 8140.43
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 2 | 99443745 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 3 | 500302833 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 4734007 | RETAINER RETAINER | 1 | |
| 5 | 4734008 | RETAINER RETAINER | 1 | |
| 6 | 4722869 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 7 | 10181711 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 8 | 4858607 | WASHER WASHER | 4 | |
| 9 | 7303520 | FUEL LINE FUEL LINE | 1 | |
| 10 | 17724587 | RUBBER HOSE RUBBER HOSE | 1 | |
| 11 | 500366224 | INJECTION LINE INJECTION LINE | 1 | |
| 12 | 18088192 | CLIP CLIP | 2 | |
| 13 | 7303136 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 14 | 10260160 | SEAL GASKET SEAL GASKET | 2 |
