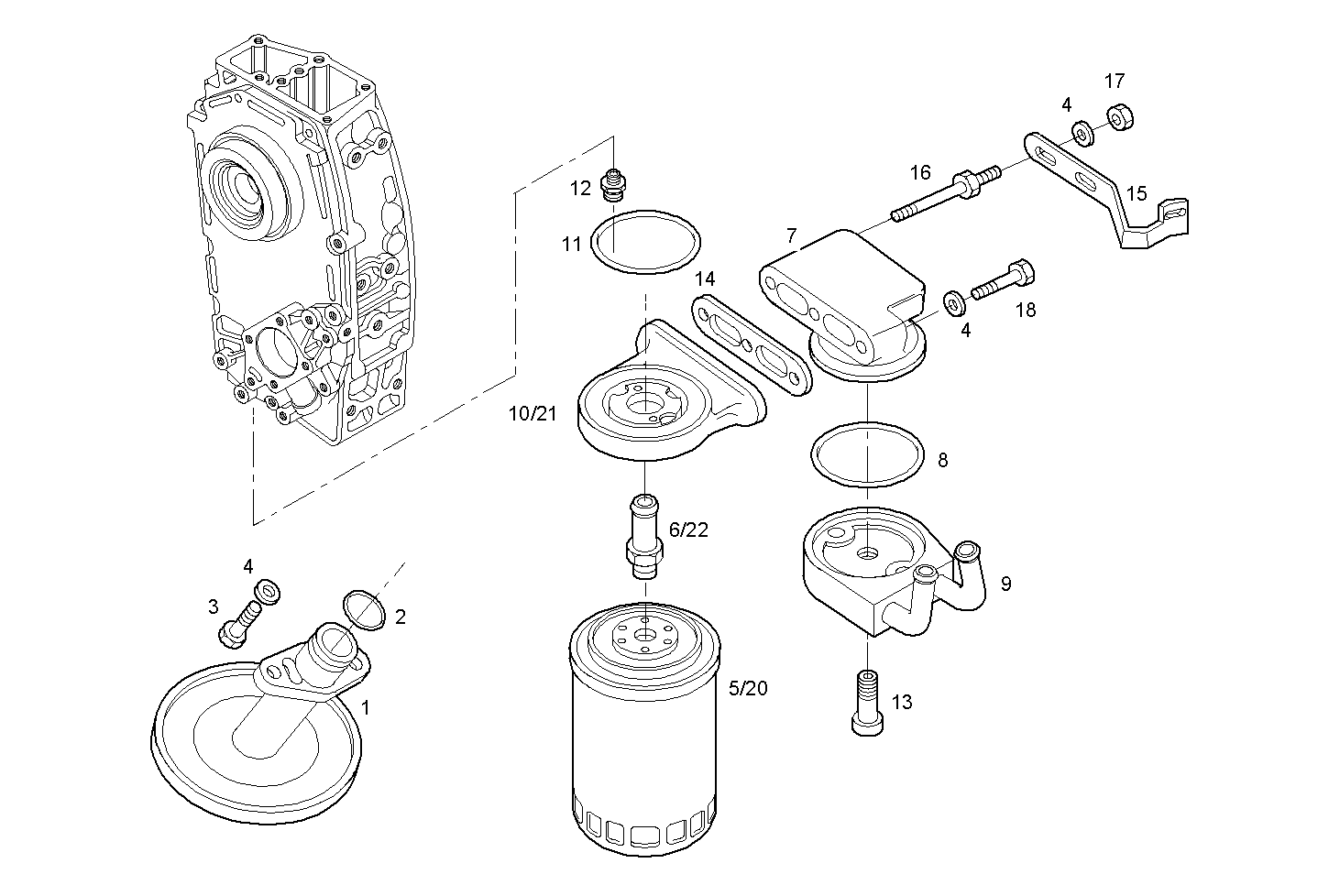

LUBE OIL LINES
8140.43C.3941 — 8140.43
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99482981 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 2 | 17282281 | O-RING O-RING | 1 | |
| 3 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 500337673 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 6 | 7301914 | THREADED UNION THREADED UNION | 1 | |
| 7 | 98496655 | SUPPORT SUPPORT | 1 | |
| 8 | 500343605 | O-RING O-RING | 1 | |
| 9 | 98480768 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 10 | 99488292 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 11 | 17290181 | O-RING O-RING | 1 | |
| 12 | 4737557 | DOWEL PIN DOWEL PIN | 1 | |
| 13 | 98480769 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 98425765 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 500300395 | RETAINER RETAINER | 1 | |
| 16 | 4836699 | THREADED PIN THREADED PIN | 2 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 18 | 16606024 | SCREW SCREW | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 20 | 2992188 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 21 | 504102370 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 22 | 504102371 | THREADED UNION THREADED UNION | 1 |
