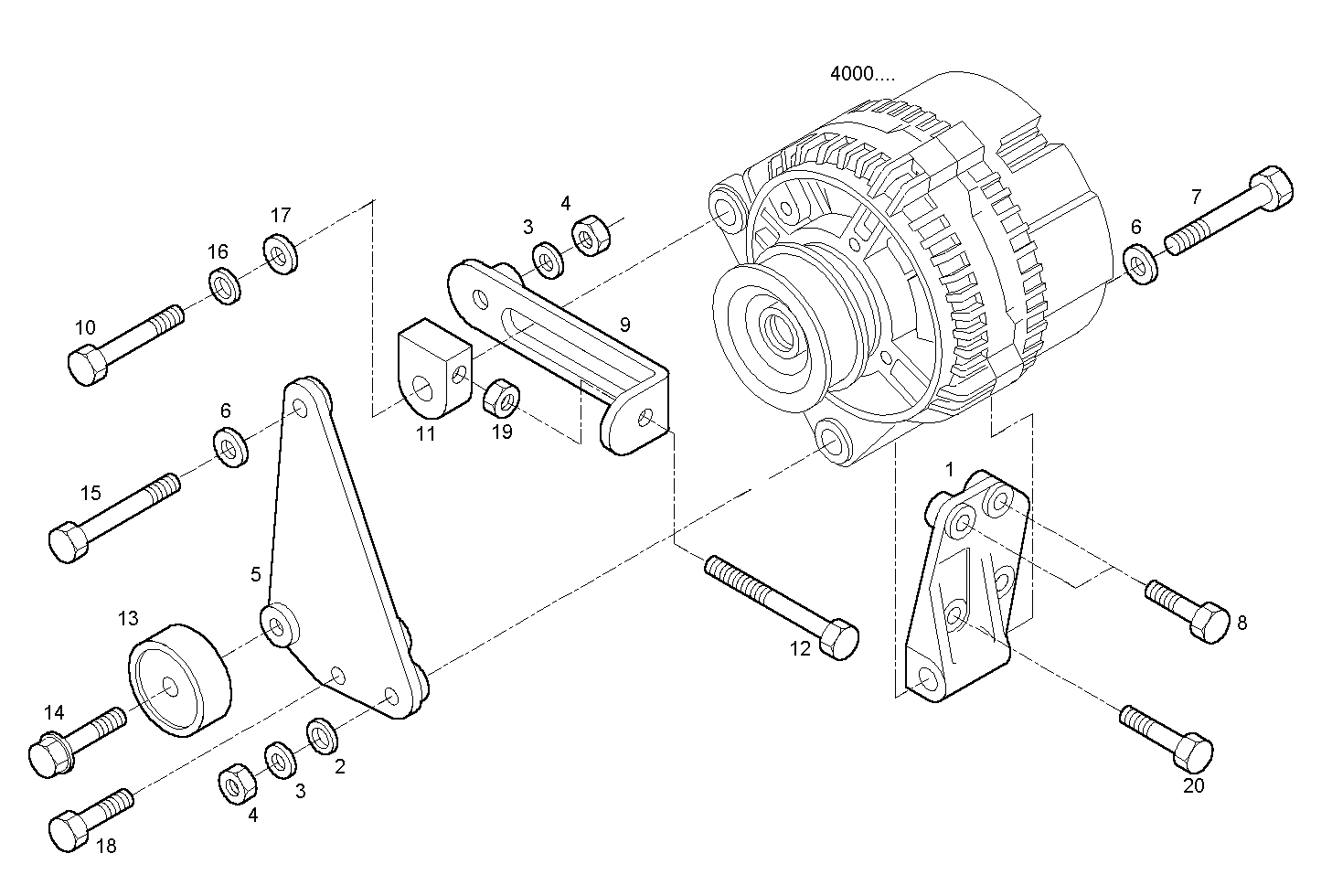

MOUNT
8140.43C.3941 — 8140.43
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500357890 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 4726707 | WASHER WASHER | 1 | |
| 3 | 17091174 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 17038631 | HEXAGON NUT HEXAGON NUT | 2 | |
| 5 | 500358390 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 17097324 | WASHER WASHER | 2 | |
| 7 | 15542224 | SCREW SCREW | 1 | |
| 8 | 500339962 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 99460547 | BELT TENSIONER BELT TENSIONER | 1 | |
| 10 | 16608324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 98430360 | DOWEL DOWEL | 1 | |
| 12 | 15214524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 98448218 | DRIVE BEARING DRIVE BEARING | 1 | |
| 14 | 16707134 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 1 | |
| 15 | 15541824 | SCREW SCREW | 1 | |
| 16 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 17097124 | WASHER WASHER | 1 | |
| 18 | 16289224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 99481696 | HEXAGON BOLT HEXAGON BOLT | 1 |
