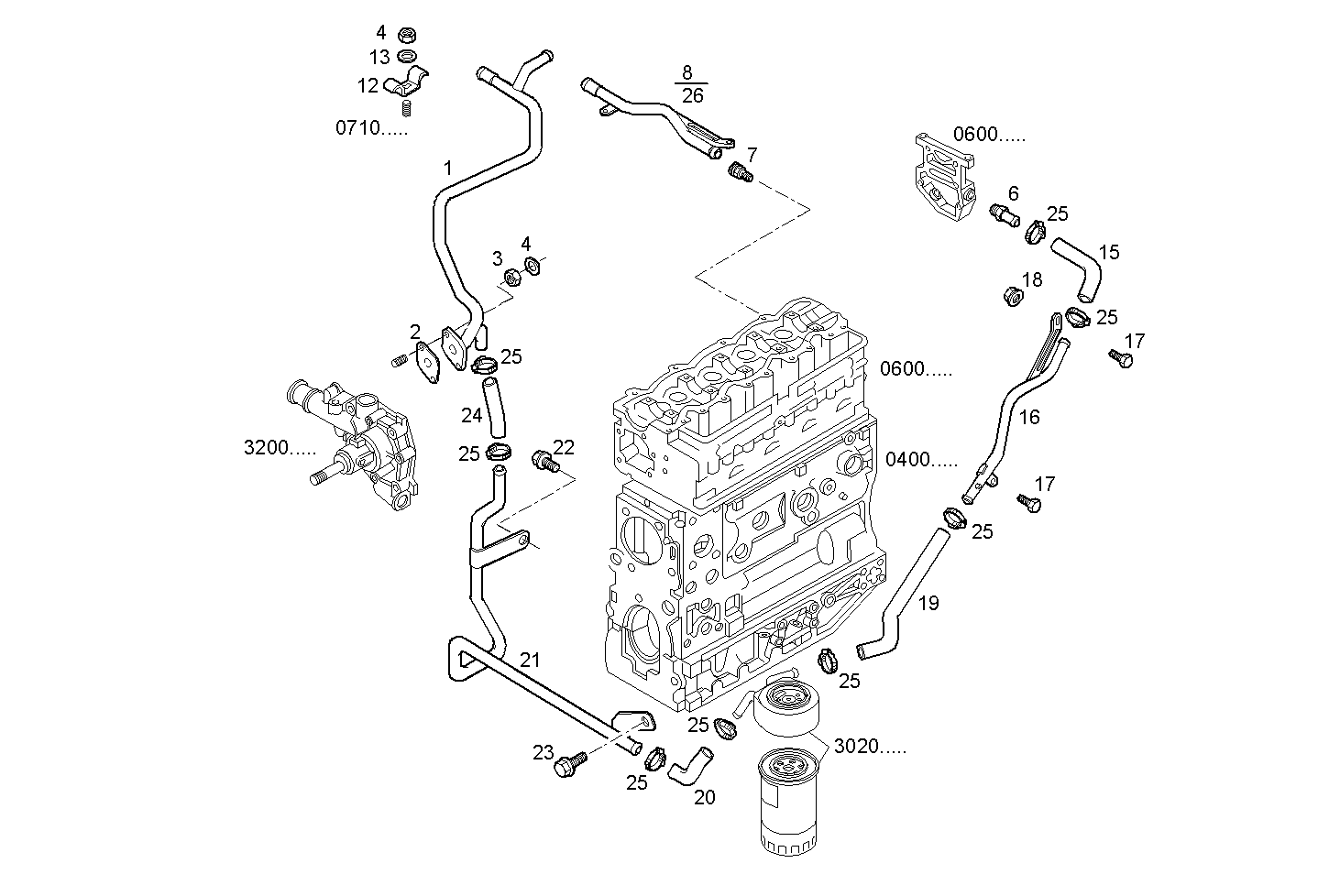

WATER LINES
8140.43S.4400 — 8140.43
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500326396 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 6 | 99447076 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 7 | 500328152 | THREADED UNION THREADED UNION | 1 | |
| 8 | 500326889 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 12 | 500358396 | RETAINER RETAINER | 1 | |
| 13 | 17089574 | WASHER WASHER | 1 | |
| 15 | 98433754 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 99463355 | WATER PIPE WATER PIPE | 1 | |
| 17 | 16597924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17044731 | HEXAGON NUT HEXAGON NUT | 1 | |
| 19 | 99463357 | WATER HOSE WATER HOSE | 1 | |
| 20 | 99463358 | HEATEXCHANG.HOSE HEATEXCHANG.HOSE | 1 | |
| 21 | 99463356 | WATER PIPE WATER PIPE | 1 | |
| 22 | 16288424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 23 | 16282324 | SCREW SCREW | 1 | |
| 24 | 1904633 | WATER HOSE WATER HOSE | 1 | |
| 25 | 98463347 | CLIP CLIP | 8 | |
| 26 | 504039217 | CONNECTION PIPE CONNECTION PIPE | 1 |
