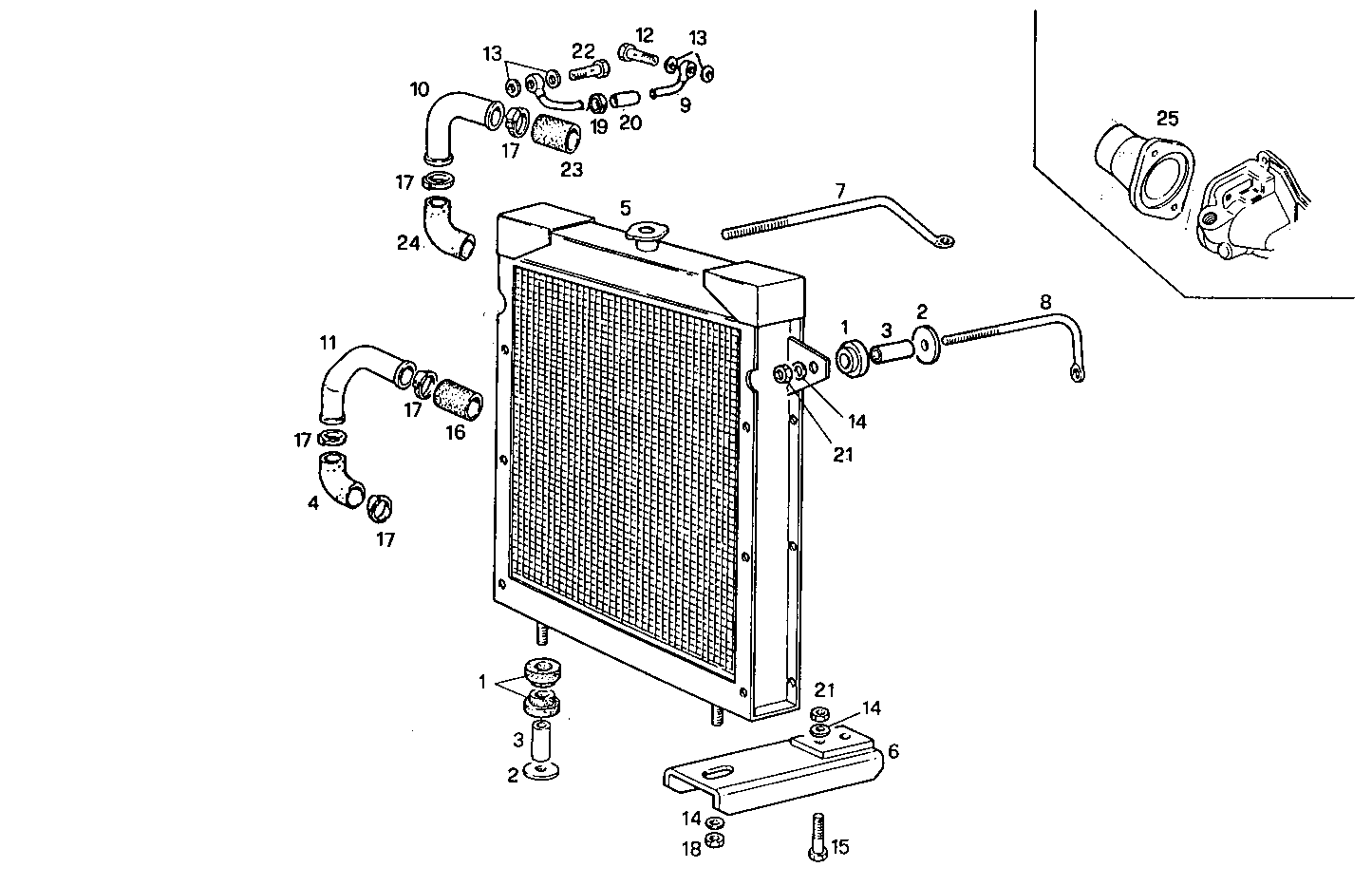

RADIATOR FOR SETTING TILL MAX POWER
8140C00.00 — 8140C00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 741569 | RUBBER PAD RUBBER PAD | 8 | |
| 2 | 741570 | WASHER WASHER | 8 | |
| 3 | 741571 | SPACING BAR SPACING BAR | 4 | |
| 4 | 8017516 | WATER HOSE WATER HOSE | 1 | |
| 5 | 4934548 | WATER RADIATOR WATER RADIATOR | 1 | |
| 6 | 8107491 | SUPPORT SUPPORT | 2 | |
| 7 | 8019017 | TIE ROD TIE ROD | 1 | |
| 8 | 8019016 | TIE ROD TIE ROD | 1 | |
| 9 | 98405463 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8019018 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8019019 | WATER PIPE WATER PIPE | 1 | |
| 12 | 4806154 | FILLER NECK FILLER NECK | 1 | |
| 13 | 98474305 | WASHER WASHER | 4 | |
| 14 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 15 | 16607424 | SCREW SCREW | 4 | |
| 16 | 8019020 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 17764791 | CLIP CLIP | 8 | |
| 18 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 19 | 18087991 | CLIP CLIP | 2 | |
| 20 | 8007998 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 21 | 17038121 | HEXAGON NUT HEXAGON NUT | 8 | |
| 22 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 23 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 24 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 7301254 | COVER COVER | 1 |
