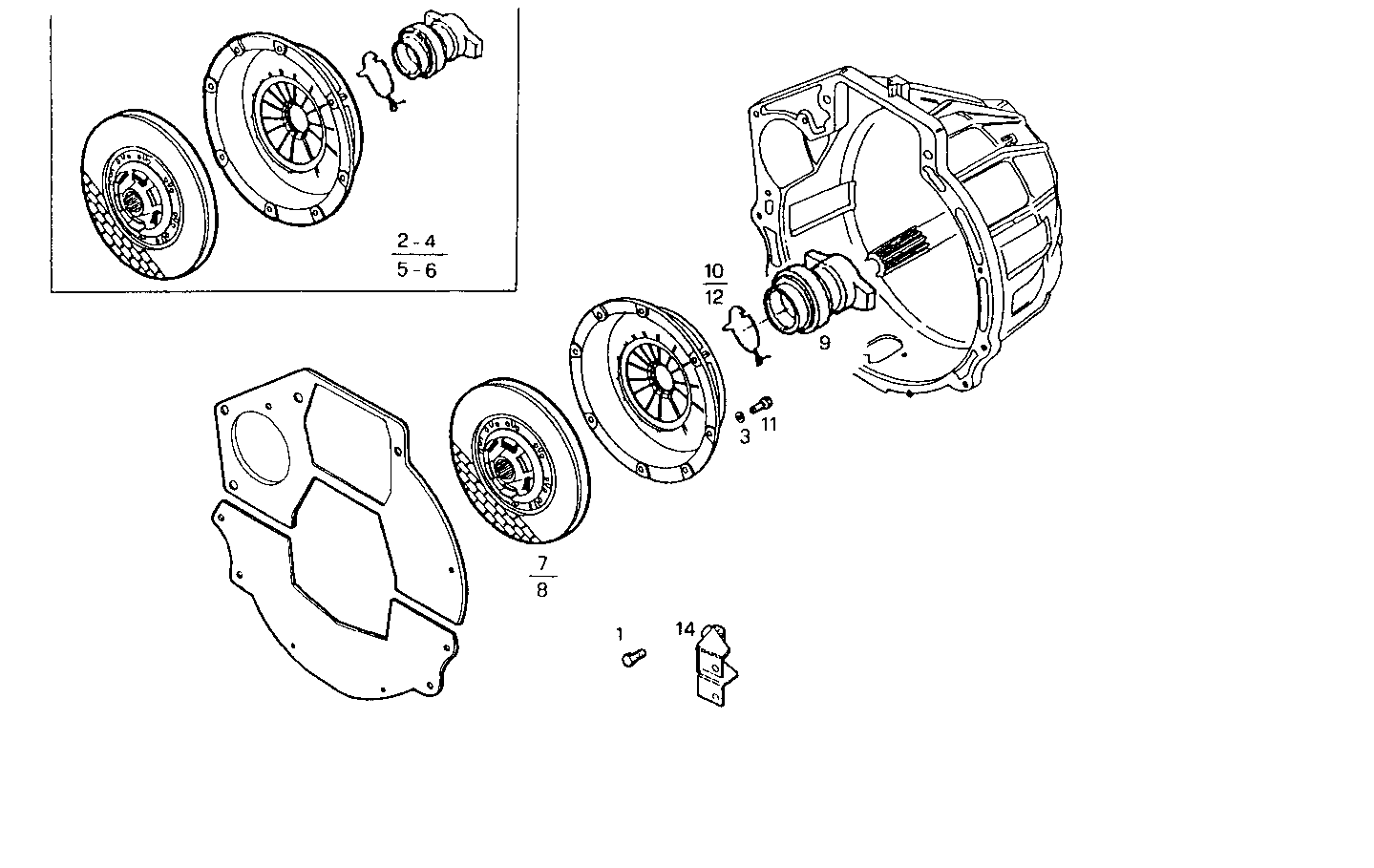

AUTOMOTIVE CLUTCH 9'' 1/4''
8140C00.00A006 — 8140C00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 15971921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 1904797 | CLUTCH CLUTCH | 1 | |
| 3 | 17089471 | SPRING WASHER SPRING WASHER | 6 | |
| 4 | 1908520 | CLUTCH CLUTCH | 1 | |
| 5 | 1908552 | CLUTCH CLUTCH | 1 | |
| 6 | 1908555 | CLUTCH CLUTCH | 1 | |
| 7 | 98460675 | CLUTCH DISC CLUTCH DISC | 1 | |
| 8 | 98471680 | CLUTCH DISC CLUTCH DISC | 1 | |
| 9 | 1905290 | RELEASE SLEEVE RELEASE SLEEVE | 1 | |
| 10 | 93194156 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 11 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 12 | 93194160 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 14 | 93813956 | FASTENING BRACKET FASTENING BRACKET | 1 |
