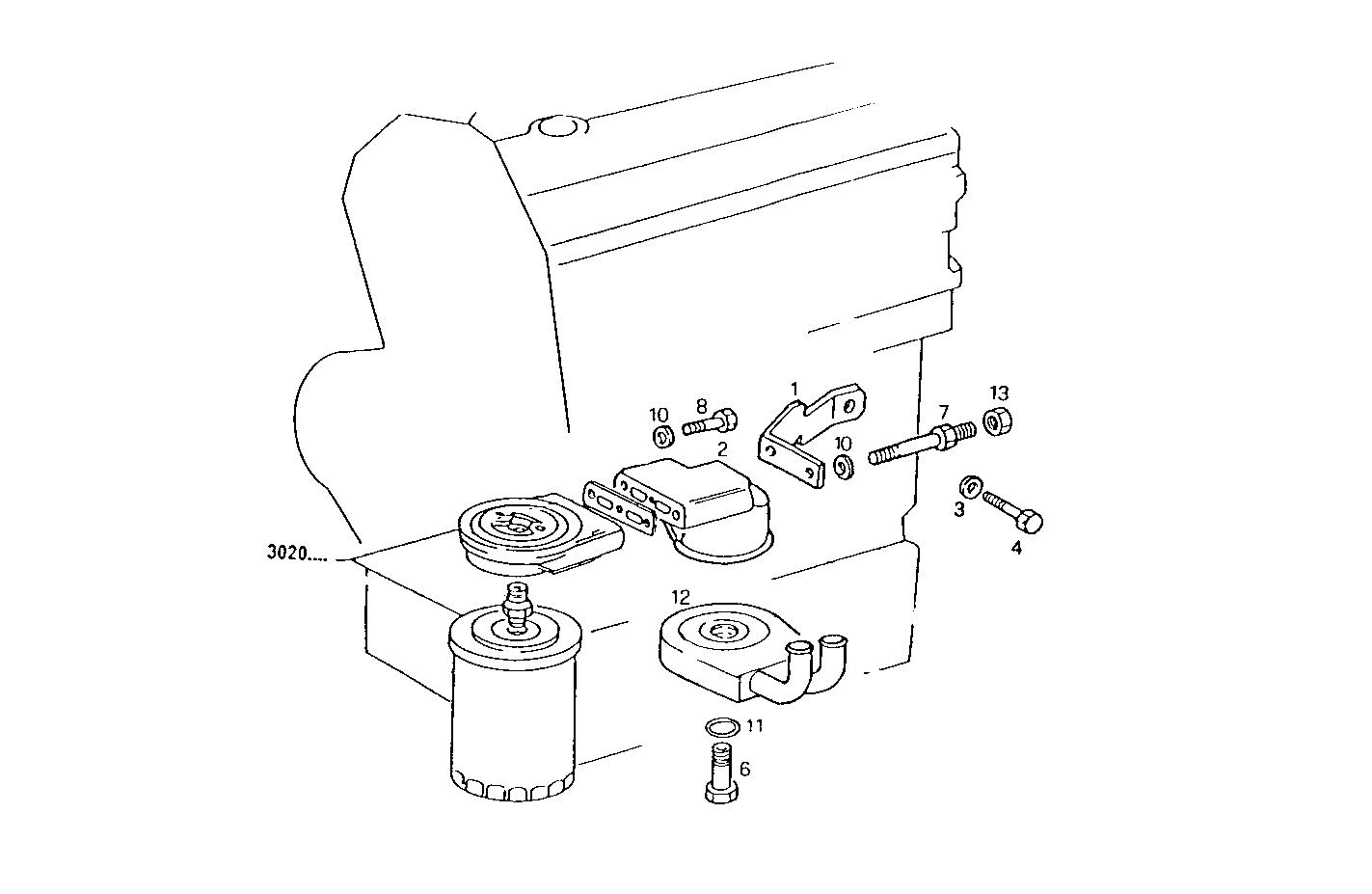

OIL - WATER HEAT EXCHANGER
8140C00.00A006 — 8140C00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500300395 | RETAINER RETAINER | 1 | |
| 2 | 98496655 | SUPPORT SUPPORT | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 4 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 98480769 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 4836699 | THREADED PIN THREADED PIN | 2 | |
| 8 | 16606024 | SCREW SCREW | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 11 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 98480768 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 |
