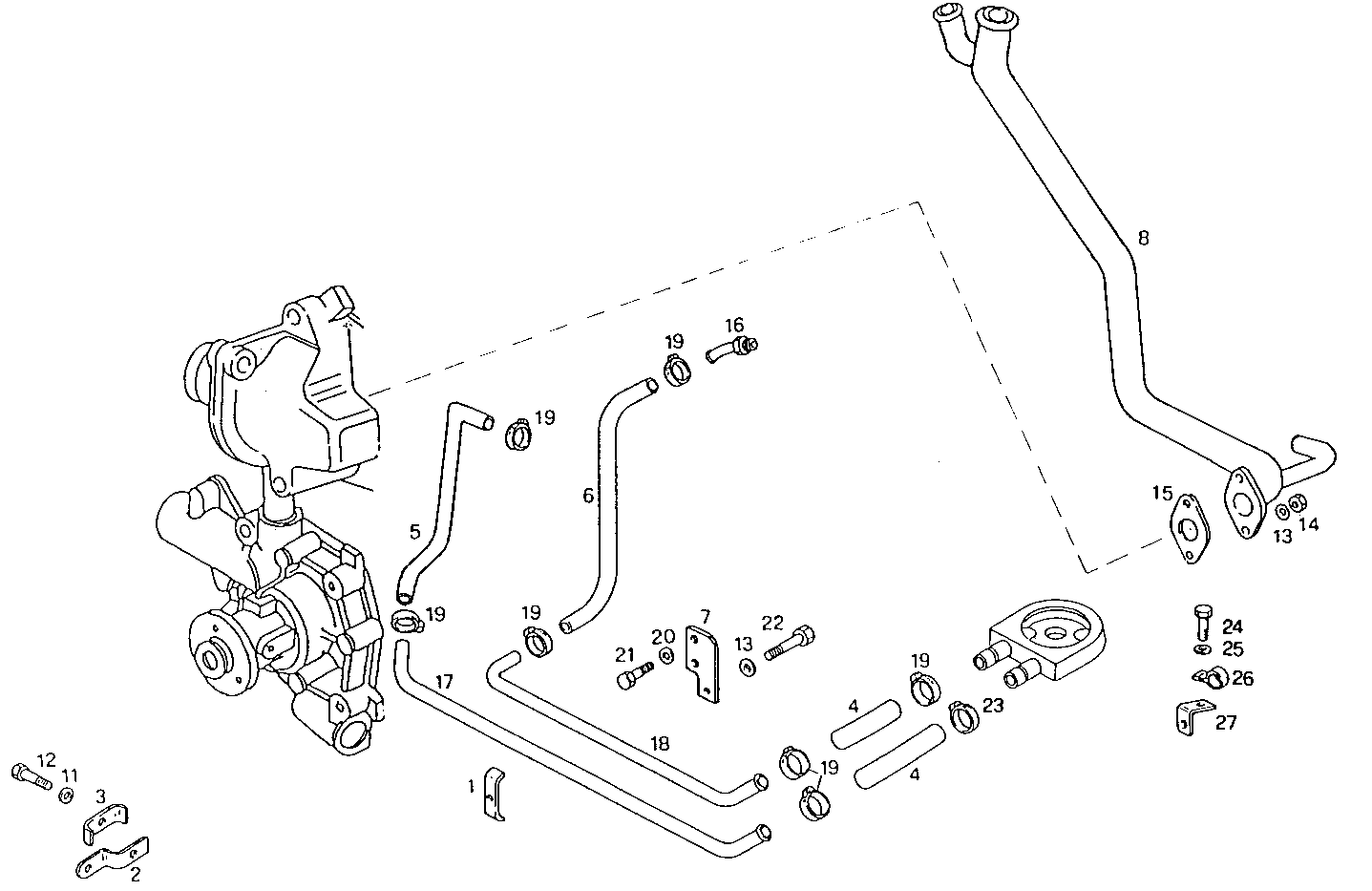

WATER LINES
8140C00.00A006 — 8140C00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4852221 | RETAINER RETAINER | 1 | |
| 2 | 4852220 | RETAINER RETAINER | 1 | |
| 3 | 4852223 | RETAINER RETAINER | 1 | |
| 4 | 8089134 | WATER HOSE WATER HOSE | 2 | |
| 5 | 4852226 | WATER HOSE WATER HOSE | 1 | |
| 6 | 99461491 | WATER HOSE WATER HOSE | 1 | |
| 7 | 4852219 | RETAINER RETAINER | 2 | |
| 8 | 99443658 | WATER PIPE WATER PIPE | 1 | |
| 11 | 17088974 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 10902721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 16 | 99447076 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 17 | 98434049 | WATER PIPE WATER PIPE | 1 | |
| 18 | 98434054 | WATER PIPE WATER PIPE | 1 | |
| 19 | 98463347 | CLIP CLIP | 8 | |
| 20 | 17090074 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 23 | 18088391 | CLIP CLIP | 1 | |
| 24 | 16605424 | SCREW SCREW | 1 | |
| 25 | 17089774 | SPRING WASHER SPRING WASHER | 1 | |
| 26 | 4936279 | CLIP CLIP | 2 | |
| 27 | 8110294 | RETAINER RETAINER | 1 |
