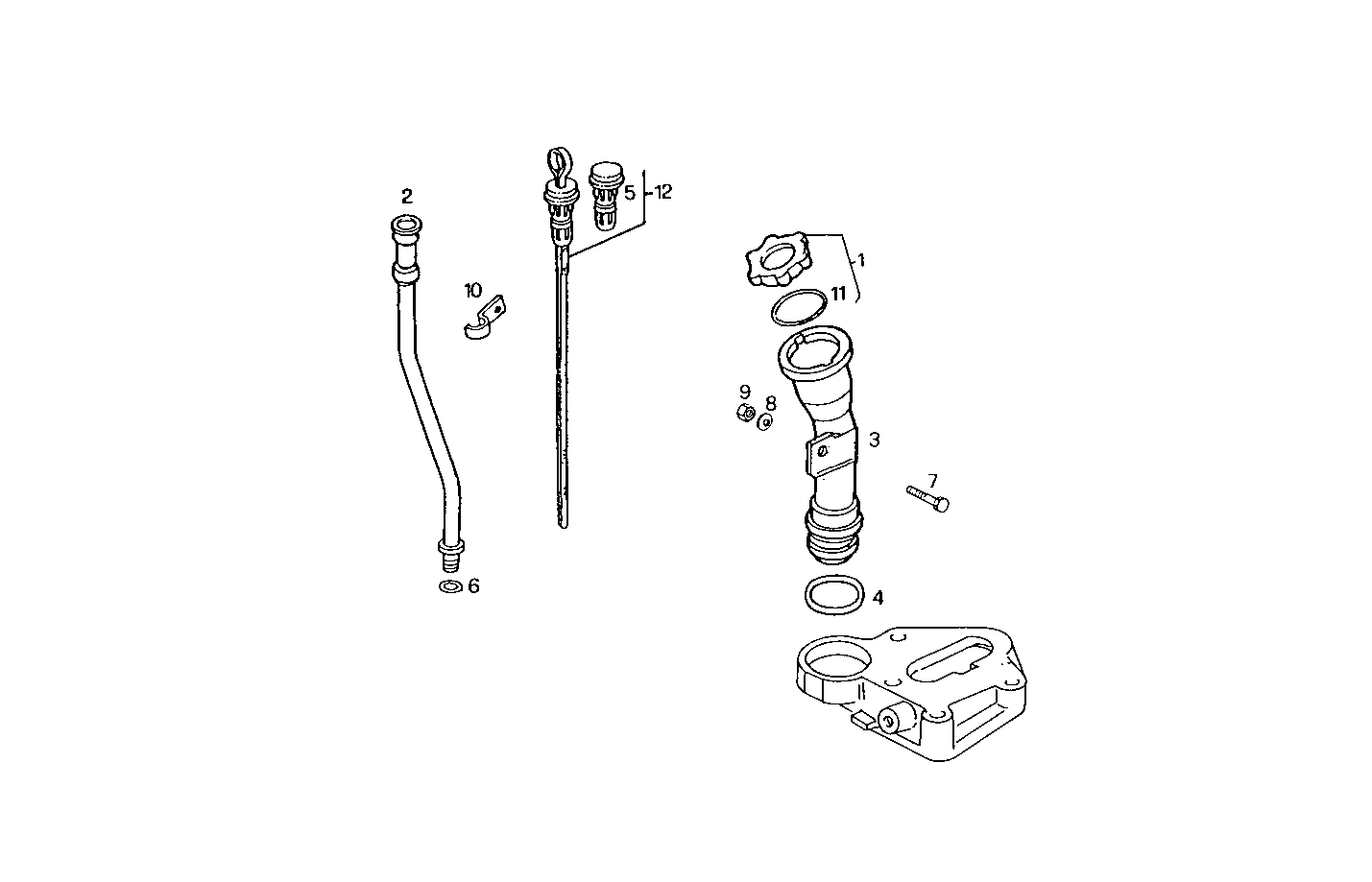

OIL DIPSTICK
8140SC00.60 — 8140SC00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418980 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 98414631 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 98410030 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 4 | 17282681 | O-RING O-RING | 1 | |
| 5 | 4820870 | RUBBER GASKET RUBBER GASKET | 1 | |
| 6 | 17277981 | O-RING O-RING | 2 | |
| 7 | 16043324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 17316590 | PIPE CLIP PIPE CLIP | 1 | |
| 11 | 98418978 | GASKET GASKET | 1 | |
| 12 | 98414630 | OIL DIPSTICK OIL DIPSTICK | 1 |
