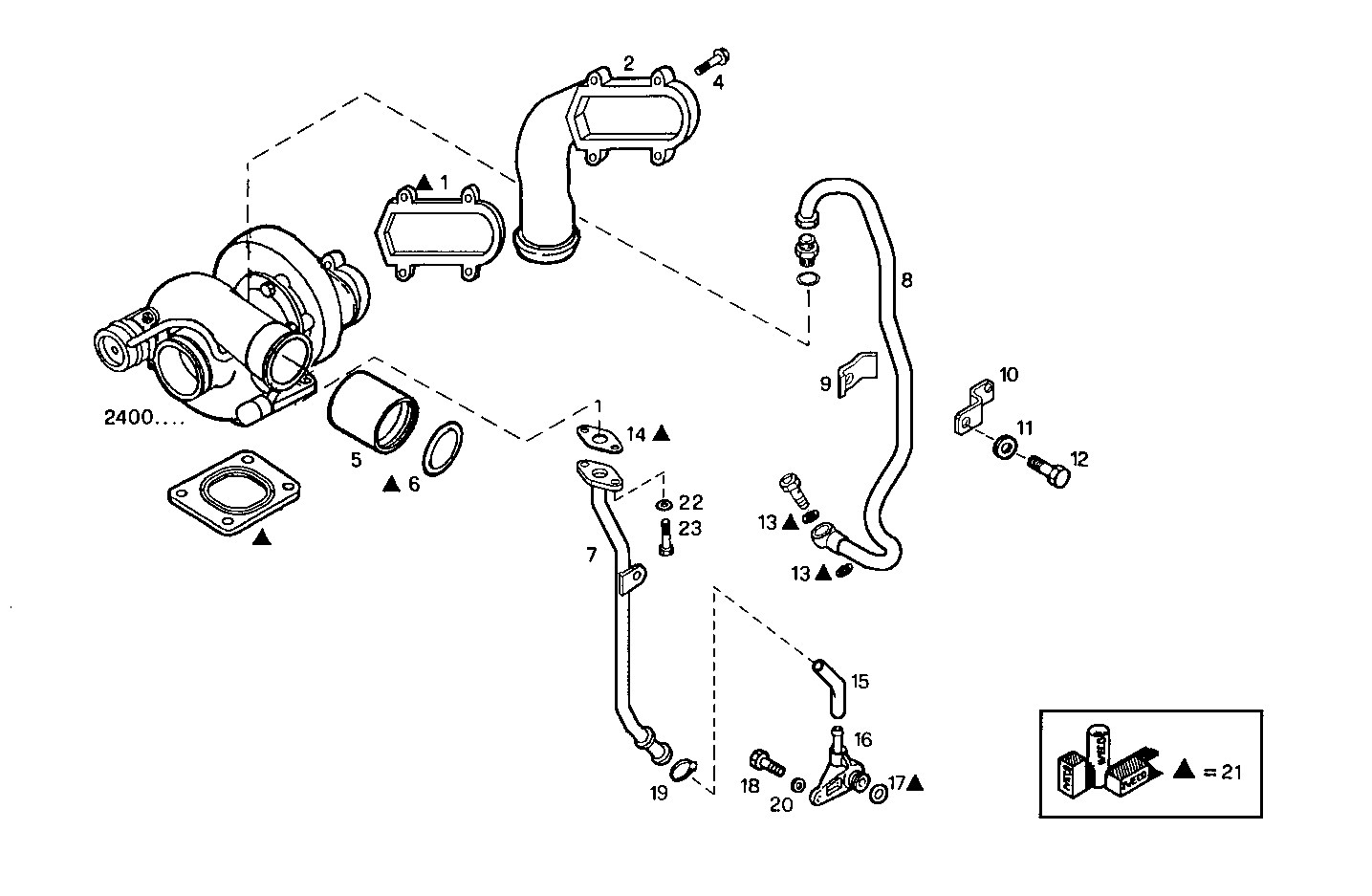

SUPERCHARGING LINES
8140SC23.00 — 8140SC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98484659 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 99436004 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 99441800 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 7302186 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 6 | 17289781 | O-RING O-RING | 1 | |
| 7 | 99470360 | OIL LINE OIL LINE | 1 | |
| 8 | 99443853 | OIL LINE OIL LINE | 1 | |
| 9 | 98485520 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 10 | 98485521 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 17094714 | WASHER WASHER | 1 | |
| 12 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 99436992 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 99470366 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 98499352 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 17 | 14462881 | O-RING O-RING | 2 | |
| 18 | 16288424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 98463346 | CLIP CLIP | 1 | |
| 20 | 17095104 | WASHER WASHER | 1 | |
| 21 | 99477121 | KIT-SEAL.GASKETS KIT-SEAL.GASKETS | 1 | |
| 22 | 17088474 | WASHER WASHER | 2 | |
| 23 | 16585724 | HEXAGON BOLT HEXAGON BOLT | 2 |
