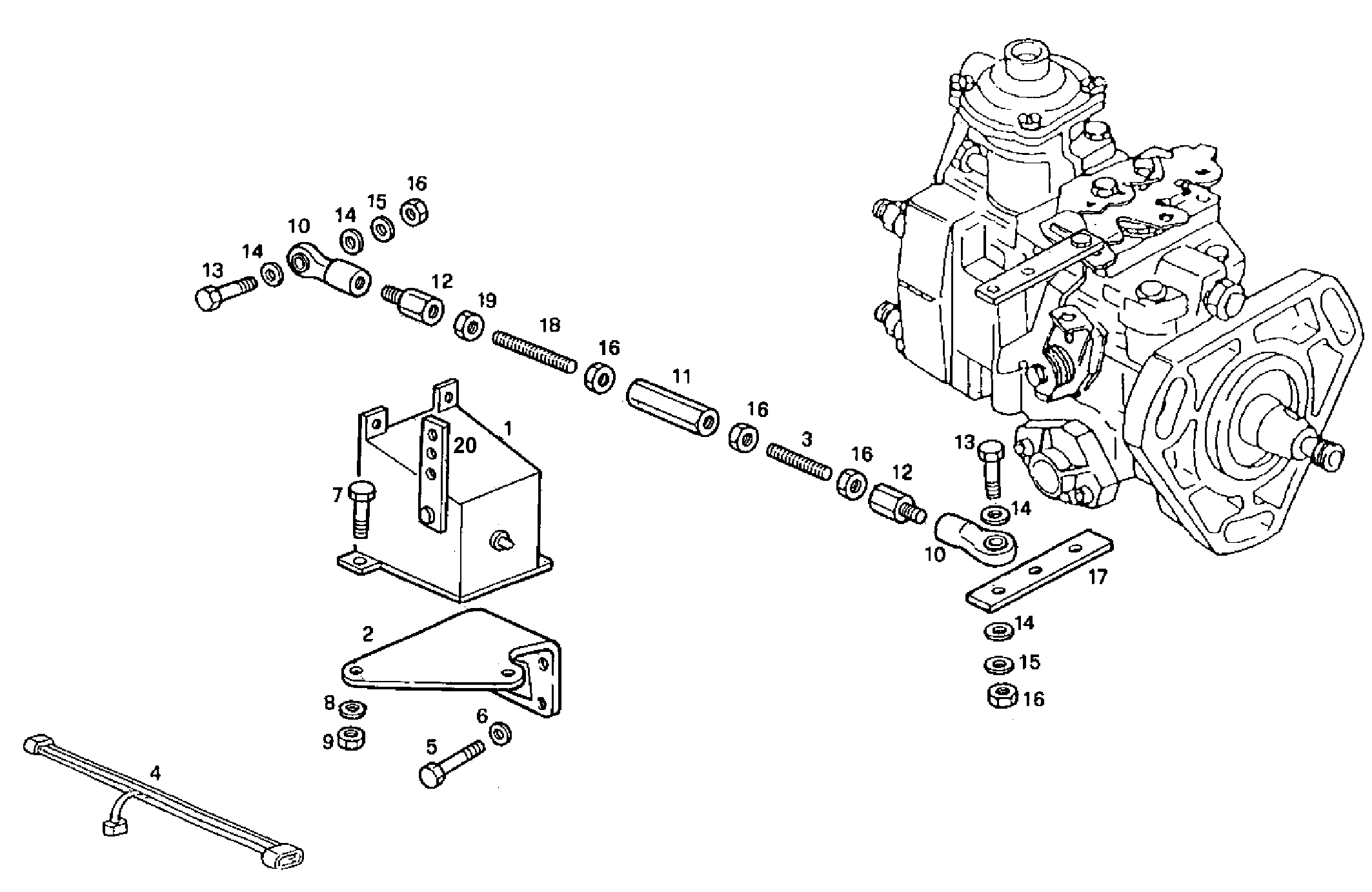

ELECTRONIC SPEED GOVERNOR
8140SC23.00A005 — 8140SC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021744 | ENGINE ACTUATOR ENGINE ACTUATOR | 1 | |
| 2 | 8022436 | RETAINER RETAINER | 1 | |
| 3 | 8100610 | TIE ROD TIE ROD | 1 | |
| 4 | 8018968 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 5 | 15540324 | SCREW SCREW | 4 | |
| 6 | 17091074 | WASHER WASHER | 4 | |
| 7 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 4934541 | BALL HEAD BALL HEAD | 2 | |
| 11 | 8016413 | TIE ROD TIE ROD | 1 | |
| 12 | 8105581 | STUD STUD | 2 | |
| 13 | 10902321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17094714 | WASHER WASHER | 4 | |
| 15 | 17088474 | WASHER WASHER | 2 | |
| 16 | 17037821 | HEXAGON NUT HEXAGON NUT | 5 | |
| 17 | 8015506 | LEVER LEVER | 1 | |
| 18 | 4936705 | TIE ROD TIE ROD | 1 | |
| 19 | 16981731 | NUT NUT | 1 | |
| 20 | 8031536 | LEVER LEVER | 1 |
