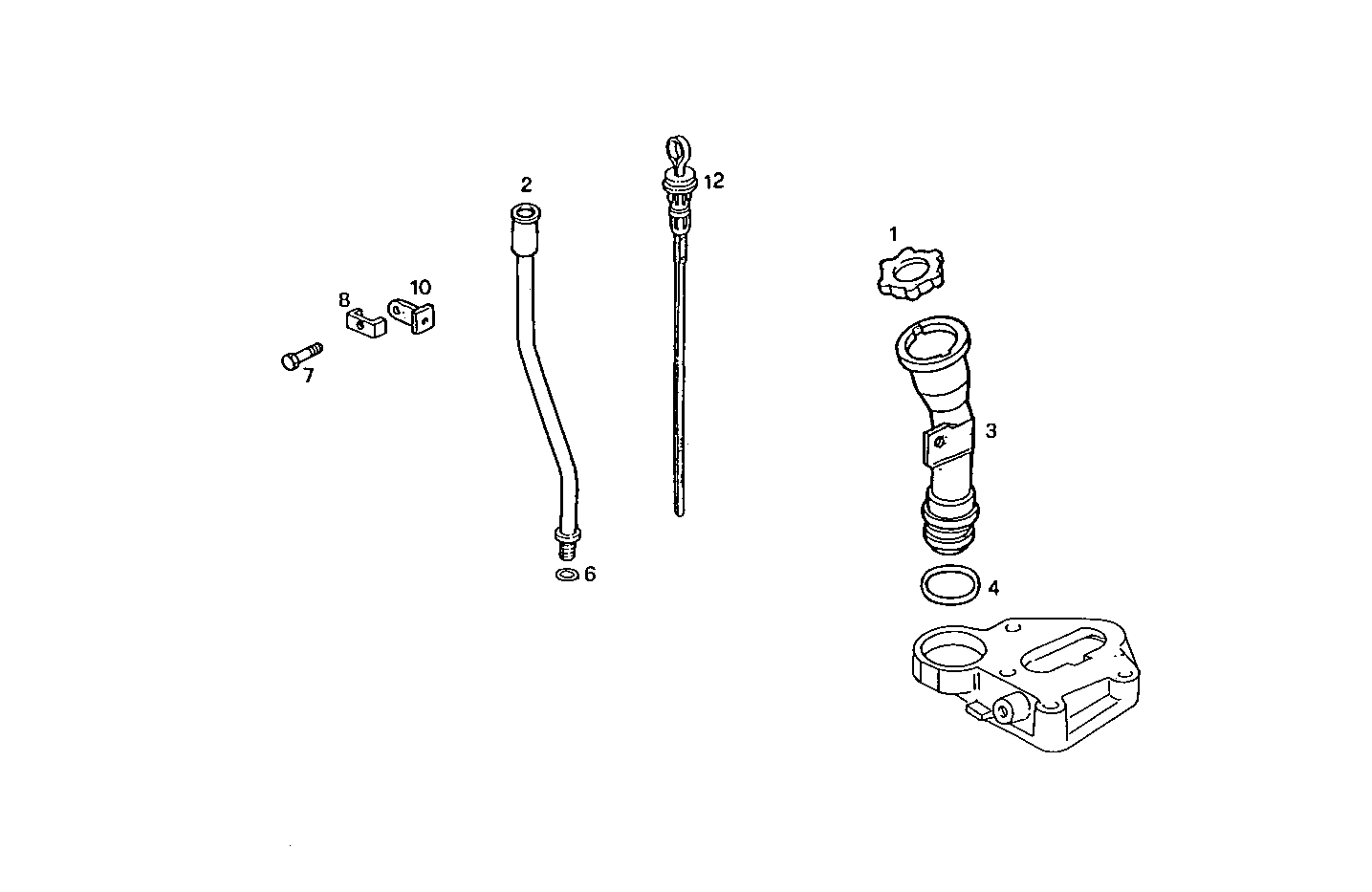

OIL DIPSTICK
8140SC23.00A005 — 8140SC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 7302234 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 99459927 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 4 | 17282681 | O-RING O-RING | 1 | |
| 6 | 17277981 | O-RING O-RING | 2 | |
| 7 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 4716870 | RETAINER RETAINER | 1 | |
| 10 | 500302199 | RETAINER RETAINER | 1 | |
| 12 | 8020639 | OIL DIPSTICK OIL DIPSTICK | 1 |
