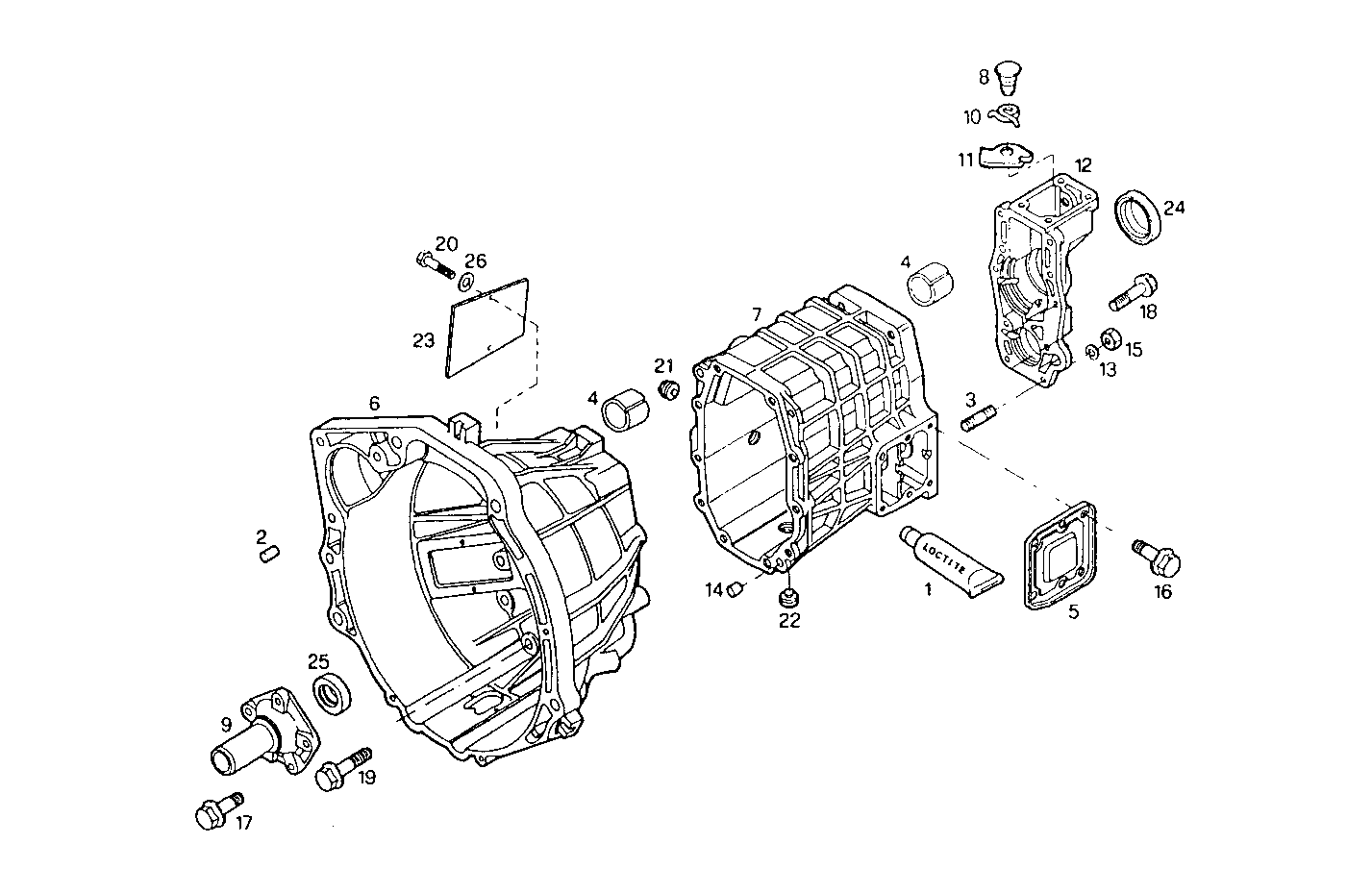

TRANSMISSION GROUP
8140SC23.00A010 — 8140SC23
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1905685 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 | |
| 2 | 4647524 | DOWEL PIN DOWEL PIN | 1 | |
| 3 | 8856620 | STUD STUD | 4 | |
| 4 | 8859033 | UPPER G.BOX COVER UPPER G.BOX COVER | 1 | |
| 5 | 8858617 | SIDE G.BOX COVER SIDE G.BOX COVER | 1 | |
| 6 | 8858900 | CLUTCH HOUSING CLUTCH HOUSING | 1 | |
| 7 | 8859879 | TRANSMISSION CASE TRANSMISSION CASE | 1 | |
| 8 | 8858898 | PIN PIN | 1 | |
| 9 | 8858638 | FRONT G.BOX COVER FRONT G.BOX COVER | 1 | |
| 10 | 8859479 | SPRING SPRING | 1 | |
| 11 | 8859480 | STOP STOP | 1 | |
| 12 | 8859389 | REAR G.BOX COVER REAR G.BOX COVER | 1 | |
| 13 | 10571771 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 10839810 | DOWEL PIN DOWEL PIN | 2 | |
| 15 | 16100815 | HEXAGON NUT HEXAGON NUT | 4 | |
| 16 | 16586324 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 17 | 16586421 | SCREW SCREW | 5 | |
| 18 | 16586524 | HEXAGON BOLT HEXAGON BOLT | 16 | |
| 19 | 16592824 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 20 | 16785704 | SCREW SCREW | 2 | |
| 21 | 16996511 | THREADED PLUG THREADED PLUG | 1 | |
| 22 | 16998511 | THREADED PLUG THREADED PLUG | 1 | |
| 23 | 93809284 | COVER COVER | 1 | |
| 24 | 40000160 | SHAFT SEAL SHAFT SEAL | 1 | |
| 25 | 40100791 | SHAFT SEAL SHAFT SEAL | 1 | |
| 26 | 17800174 | WASHER WASHER | 2 |
