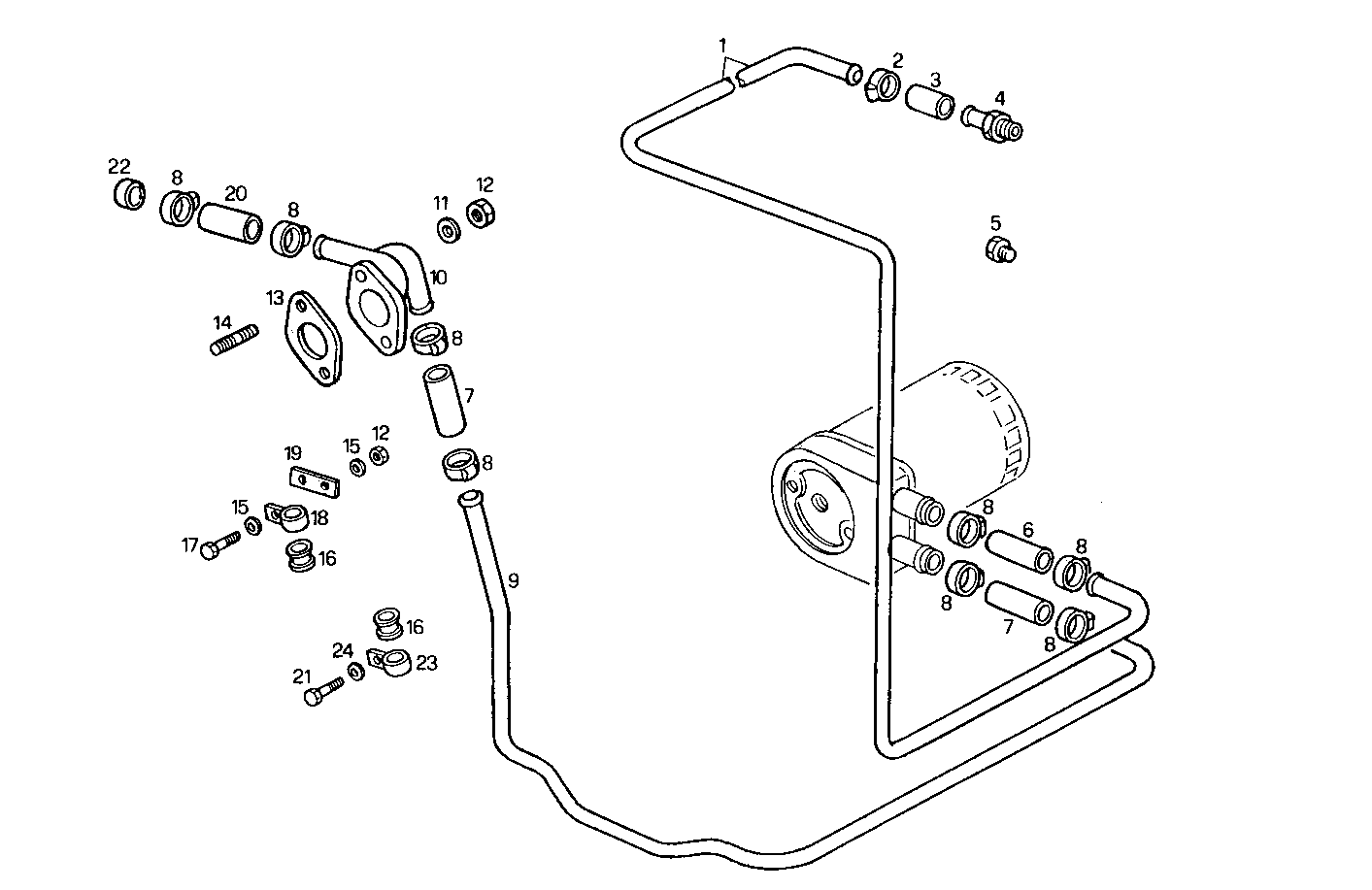

WATER LINES
8140SE00.00 — 8140SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99456322 | WATER PIPE WATER PIPE | 1 | |
| 2 | 98463347 | CLIP CLIP | 2 | |
| 3 | 99443116 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 99447076 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 5 | 16997411 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 8016113 | WATER HOSE WATER HOSE | 1 | |
| 7 | 8013466 | WATER HOSE WATER HOSE | 2 | |
| 8 | 17764592 | CLIP CLIP | 8 | |
| 9 | 8023809 | WATER PIPE WATER PIPE | 1 | |
| 10 | 98433830 | WATER PIPE WATER PIPE | 1 | |
| 11 | 11193874 | WASHER WASHER | 2 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 13 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 14 | 13543524 | STUD STUD | 2 | |
| 15 | 17089774 | SPRING WASHER SPRING WASHER | 2 | |
| 16 | 4757122 | RUBBER PAD RUBBER PAD | 2 | |
| 17 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 4763804 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 19 | 4929652 | RETAINER RETAINER | 1 | |
| 20 | 17737487 | WATER HOSE WATER HOSE | 1 | |
| 21 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 22 | 8107339 | PLUG PLUG | 1 | |
| 23 | 8111710 | CLIP CLIP | 1 | |
| 24 | 17090174 | SPRING WASHER SPRING WASHER | 1 |
