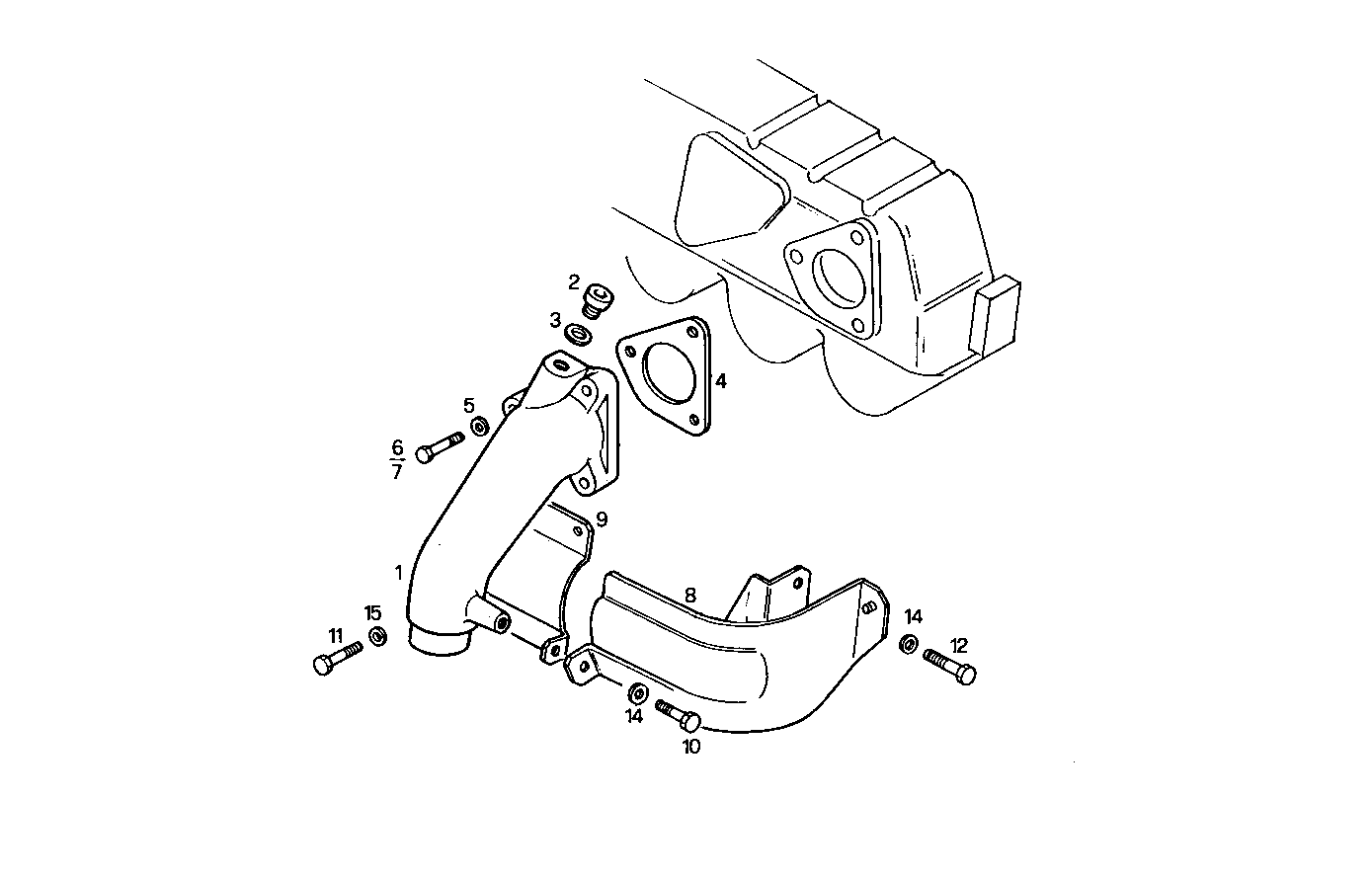

SUPERCHARGING LINES
8140SE00.00A012 — 8140SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98443350 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 4827588 | PLUG PLUG | 1 | |
| 3 | 10263360 | SEAL GASKET SEAL GASKET | 1 | |
| 4 | 98421281 | GASKET GASKET | 1 | |
| 5 | 11193874 | WASHER WASHER | 3 | |
| 6 | 16606021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16605721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 7303232 | PROTECTION PROTECTION | 1 | |
| 9 | 7302056 | PROTECTION PROTECTION | 1 | |
| 10 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 16603524 | SCREW SCREW | 2 | |
| 12 | 16043124 | SCREW SCREW | 1 | |
| 14 | 17797774 | WASHER WASHER | 2 | |
| 15 | 17088474 | WASHER WASHER | 2 |
