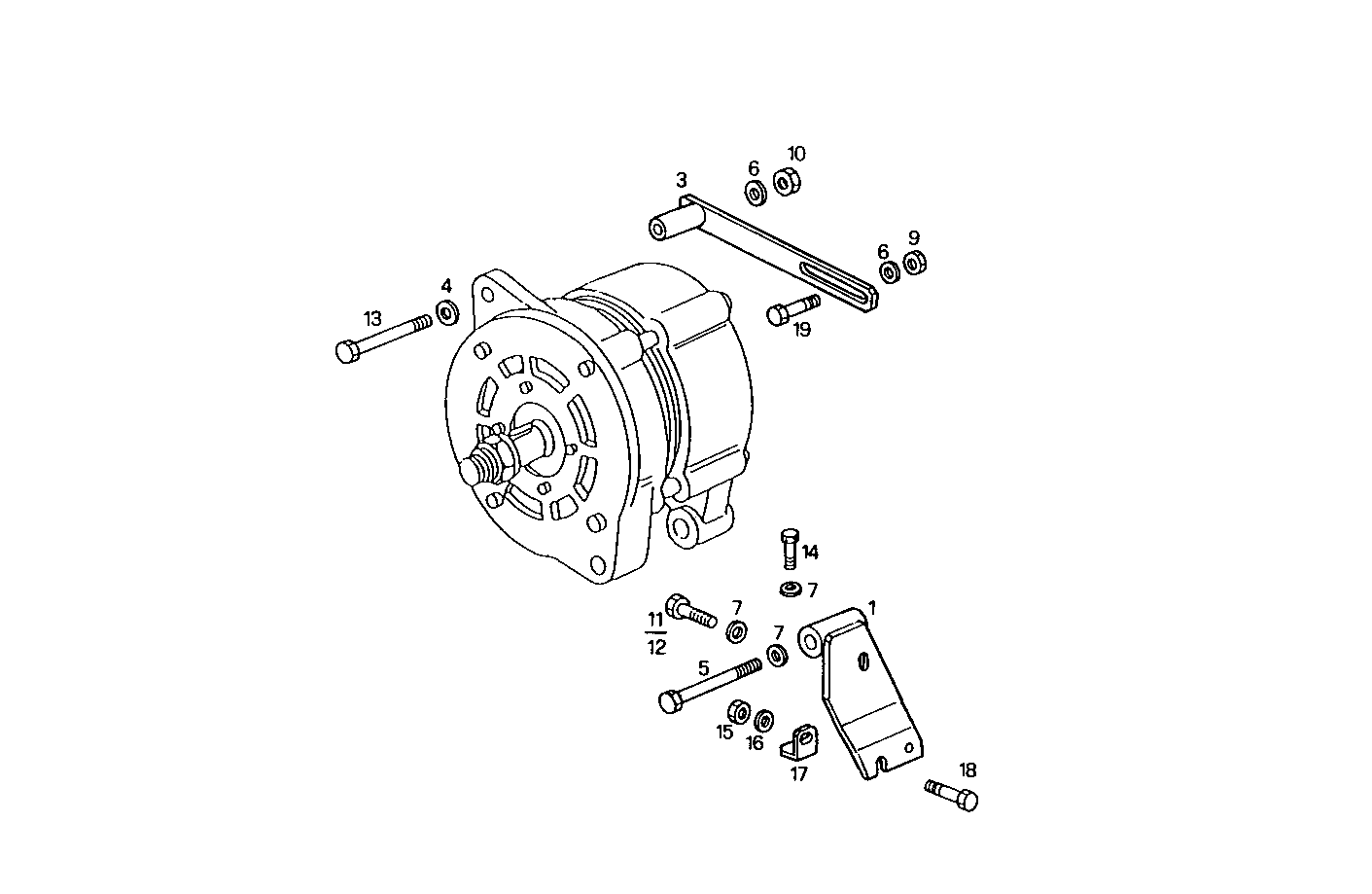

MOUNT
8140SE00.00A016 — 8140SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8027760 | SUPPORT SUPPORT | 1 | |
| 3 | 8027754 | BELT TENSIONER BELT TENSIONER | 1 | |
| 4 | 7300040 | WASHER WASHER | 1 | |
| 5 | 16611124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 17091074 | WASHER WASHER | 1 | |
| 9 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 17153021 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 16607174 | SCREW SCREW | 1 | |
| 13 | 15971421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 8101125 | SCREW SCREW | 1 | |
| 15 | 17037981 | NUT NUT | 1 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 8027786 | RETAINER RETAINER | 1 | |
| 18 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 16607624 | SCREW SCREW | 1 |
