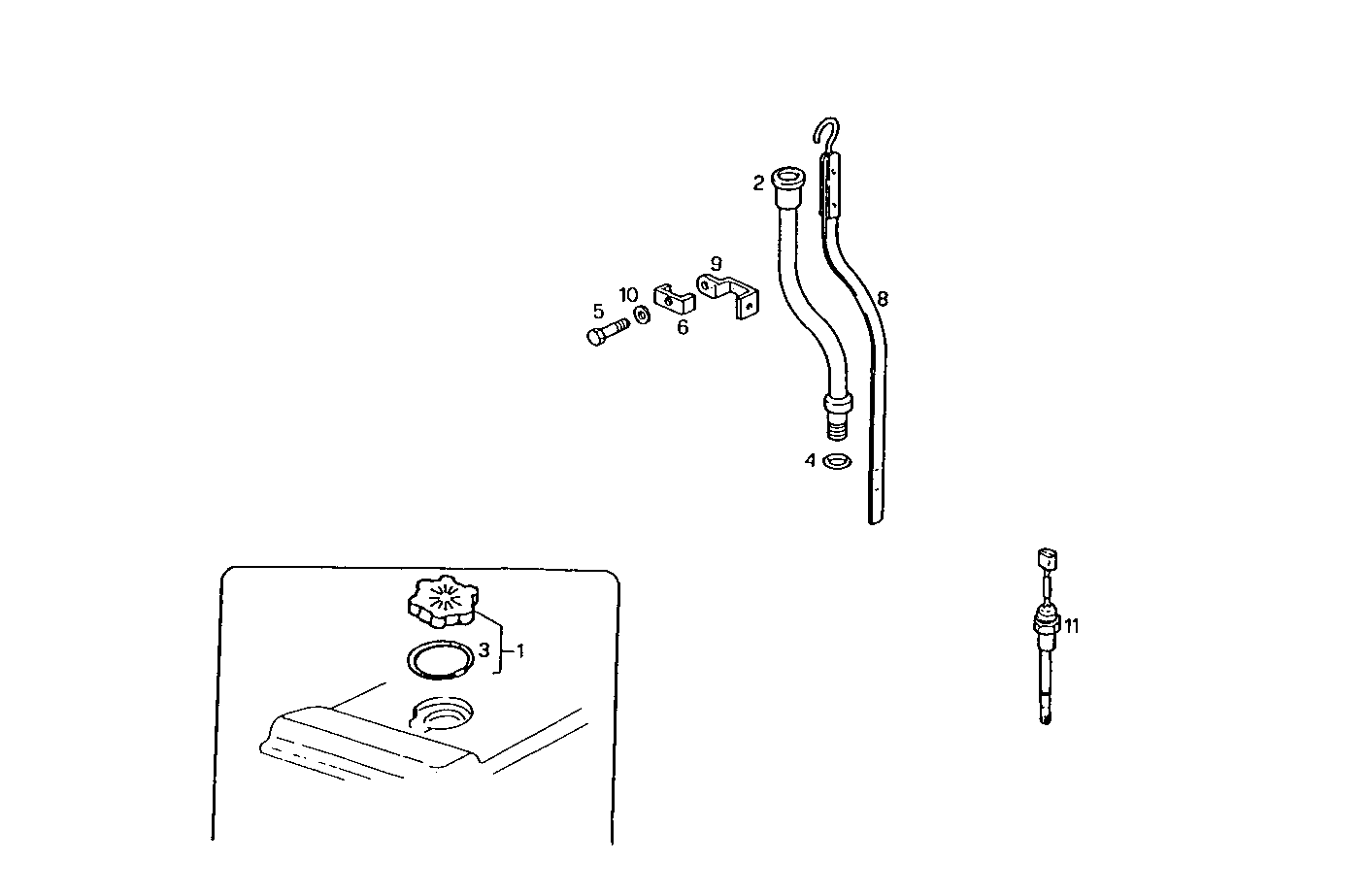

OIL DIPSTICK
8140SE00.00A016 — 8140SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98442027 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 8027725 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 98412146 | GASKET GASKET | 1 | |
| 4 | 17277981 | O-RING O-RING | 2 | |
| 5 | 16586424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 4716870 | RETAINER RETAINER | 1 | |
| 8 | 8020639 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 9 | 7303600 | RETAINER RETAINER | 1 | |
| 10 | 11193874 | WASHER WASHER | 1 | |
| 11 | 99444825 | SENSOR SENSOR | 1 |
