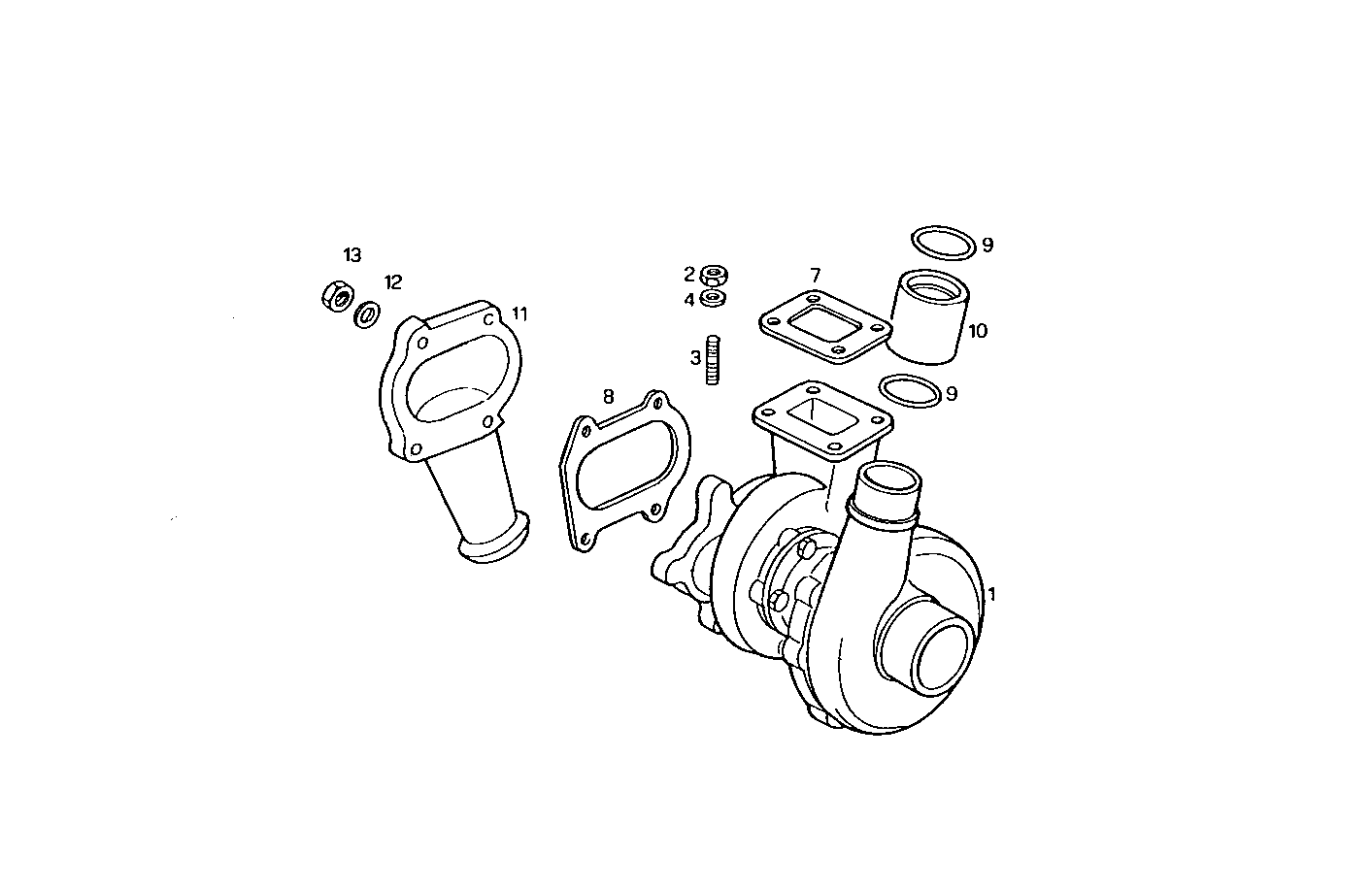

TURBOCHARGER
8140SE00.00A016 — 8140SE00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99455591 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 14061711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 3 | 98492637 | STUD STUD | 4 | |
| 4 | 17094914 | WASHER WASHER | 4 | |
| 7 | 99436990 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 98484659 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 14464381 | O-RING O-RING | 2 | |
| 10 | 7302186 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 11 | 8027615 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 13 | 500322677 | HEXAGON NUT HEXAGON NUT | 4 |
