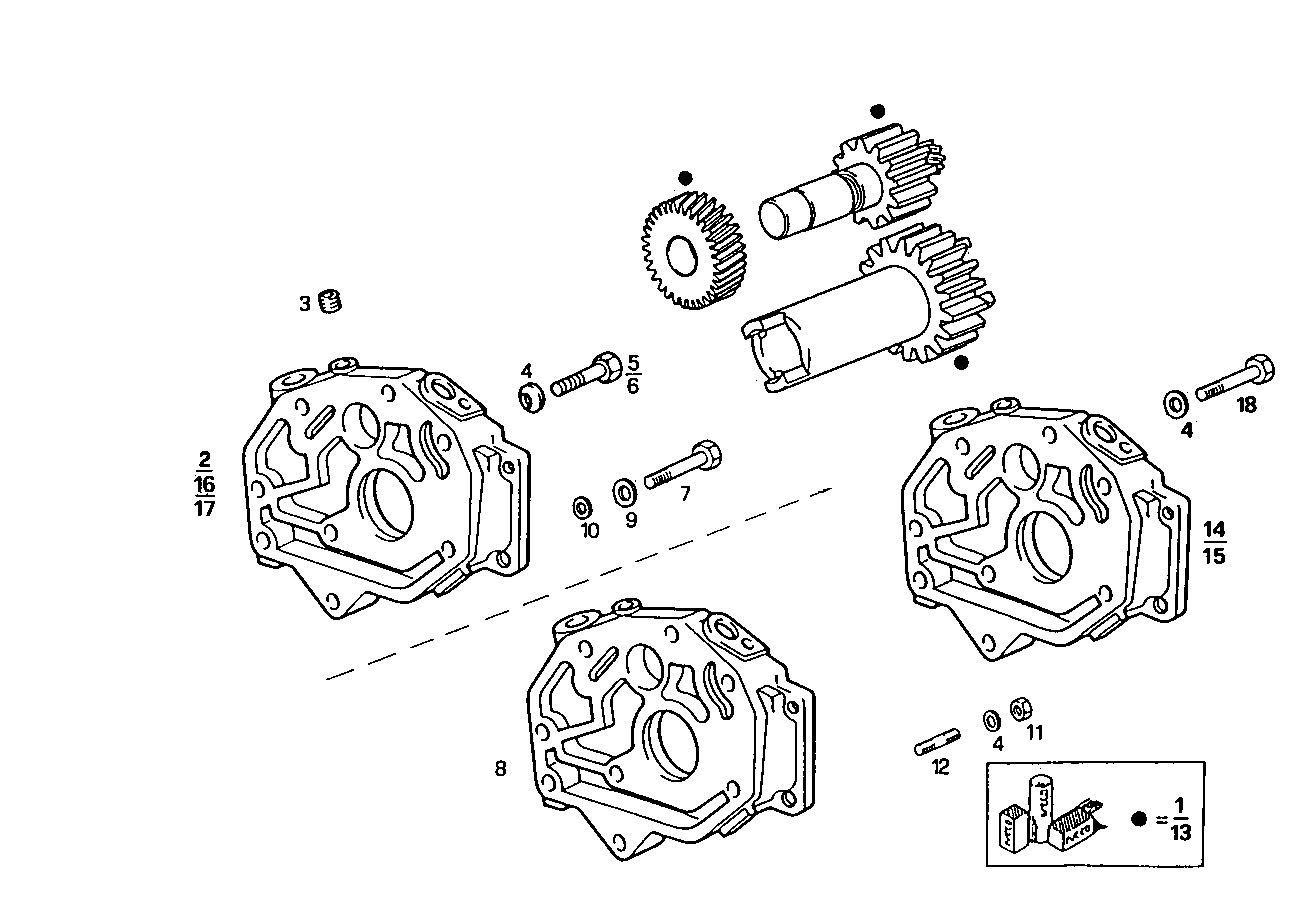

OIL PUMP
8140SRC20.10 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4856602 | KIT-OIL PUMP GEARS KIT-OIL PUMP GEARS | 1 | |
| 2 | 4710883 | COVER COVER | 1 | |
| 3 | 14326001 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 5 | 16605924 | SCREW SCREW | 4 | |
| 6 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 10902633 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 500309868 | COVER COVER | 1 | |
| 9 | 17088474 | WASHER WASHER | 1 | |
| 10 | 12643721 | WASHER WASHER | 1 | |
| 11 | 17042531 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 13516921 | STUD STUD | 1 | |
| 13 | 4856601 | KIT-OIL PUMP GEARS KIT-OIL PUMP GEARS | 1 | |
| 14 | 500354826 | COVER COVER | 1 | |
| 15 | 500334155 | COVER COVER | 1 | |
| 16 | 99431266 | COVER COVER | 1 | |
| 17 | 98468168 | OIL PUMP COVER OIL PUMP COVER | 1 | |
| 18 | 16043521 | SCREW SCREW | 6 |
