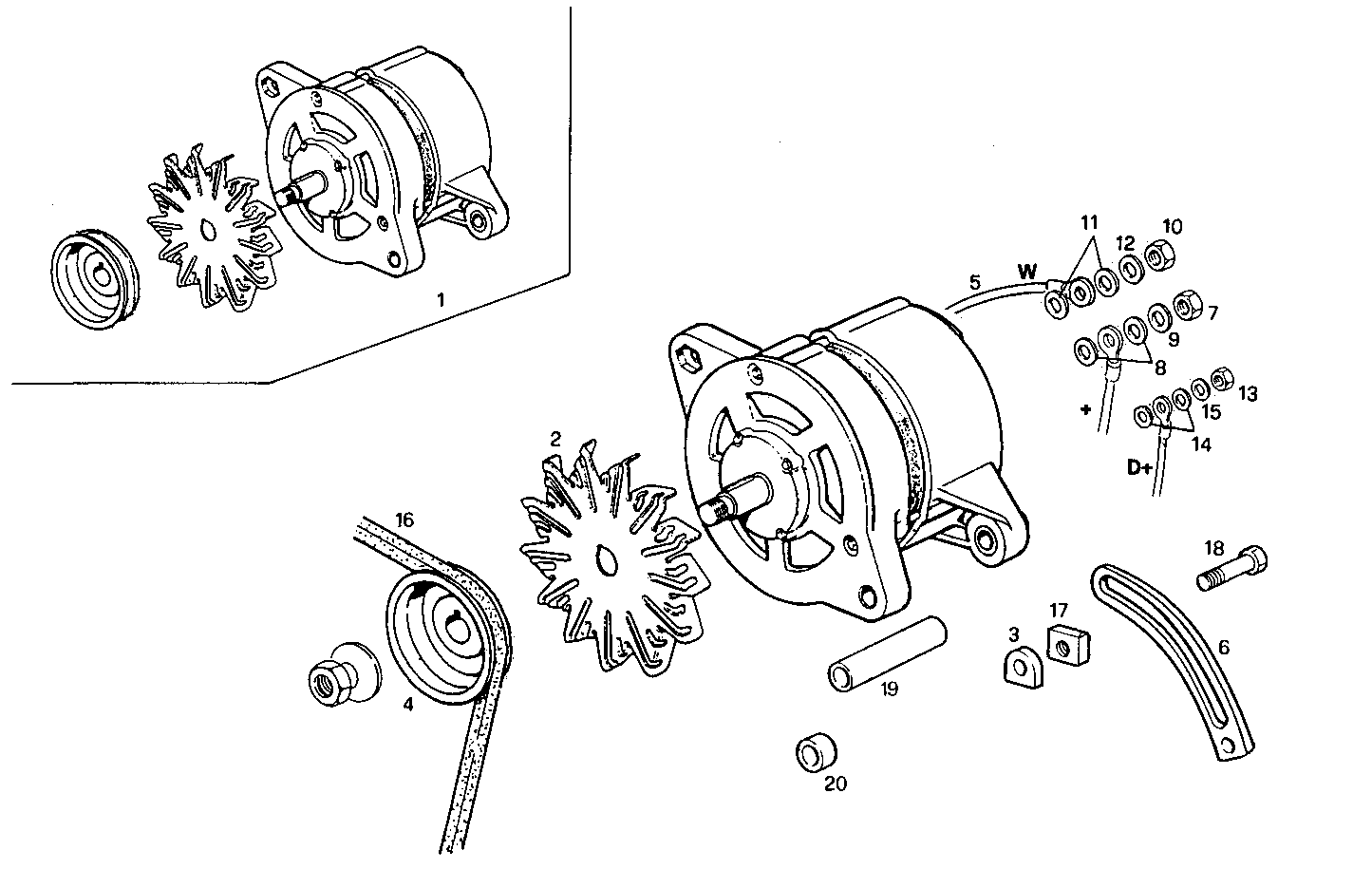

SELF-REGULATED ALTERNATOR
8140SRC20.10 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020155 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 4757196 | GENERATOR FAN GENERATOR FAN | 1 | |
| 3 | 98424122 | SPACING BAR SPACING BAR | 1 | |
| 4 | 98486484 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 5 | 8019531 | WIRE/CABLE WIRE/CABLE | 1 | |
| 6 | 8024801 | BELT TENSIONER BELT TENSIONER | 1 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 8 | 17094914 | WASHER WASHER | 2 | |
| 9 | 17094834 | WASHER WASHER | 1 | |
| 10 | 17037721 | NUT NUT | 1 | |
| 11 | 17094504 | WASHER WASHER | 2 | |
| 12 | 10615379 | TOOTHED WASHER TOOTHED WASHER | 1 | |
| 13 | 17037621 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 17094204 | WASHER WASHER | 2 | |
| 15 | 10615279 | WASHER WASHER | 1 | |
| 16 | 99454341 | V-BELT V-BELT | 1 | |
| 17 | 98424121 | LOCKING PLATE LOCKING PLATE | 1 | |
| 18 | 14307921 | SCREW SCREW | 1 | |
| 19 | 8020484 | REDUCER INSERT REDUCER INSERT | 1 | |
| 20 | 8101581 | SPACING BAR SPACING BAR | 1 |
