THERMO-STARTER
8140SRC20.10 — 8140SRC20

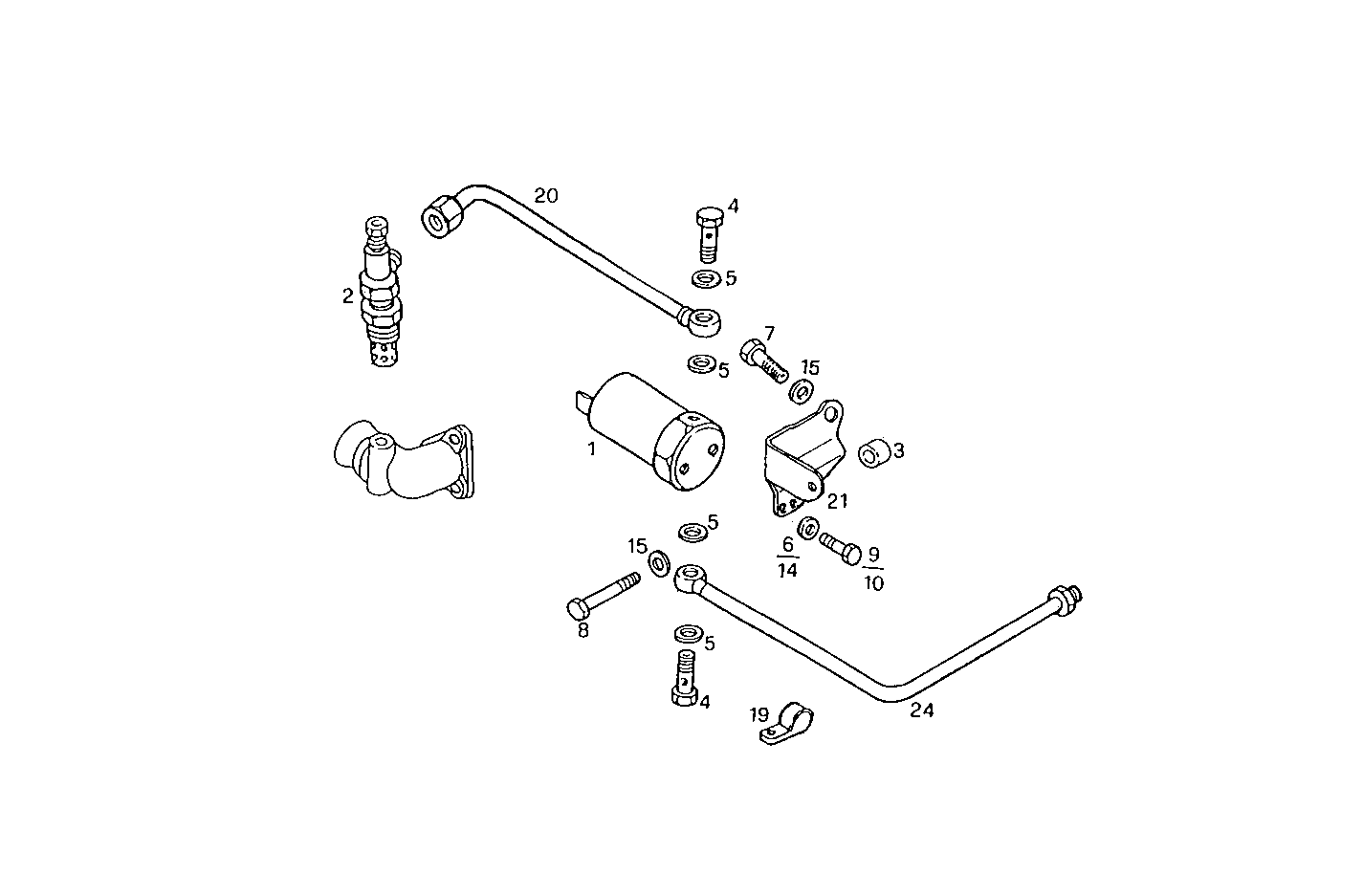

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4832277 | ELECTROVALVE ELECTROVALVE | 1 | |
| 2 | 4849601 | THERMO-STARTER THERMO-STARTER | 1 | |
| 3 | 4853864 | SPACING BAR SPACING BAR | 1 | |
| 4 | 7303136 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 5 | 10260160 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 11181574 | WASHER WASHER | 1 | |
| 7 | 16043724 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 8 | 16044924 | SCREW SCREW | 8 | |
| 9 | 16602024 | SCREW SCREW | 1 | |
| 10 | 16603524 | SCREW SCREW | 1 | |
| 14 | 17088474 | WASHER WASHER | 1 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 19 | 17314590 | RETAINER RETAINER | 2 | |
| 20 | 98437434 | FUEL LINE FUEL LINE | 1 | |
| 21 | 98451780 | RETAINER RETAINER | 1 | |
| 24 | 4862446 | FUEL LINE FUEL LINE | 1 |
