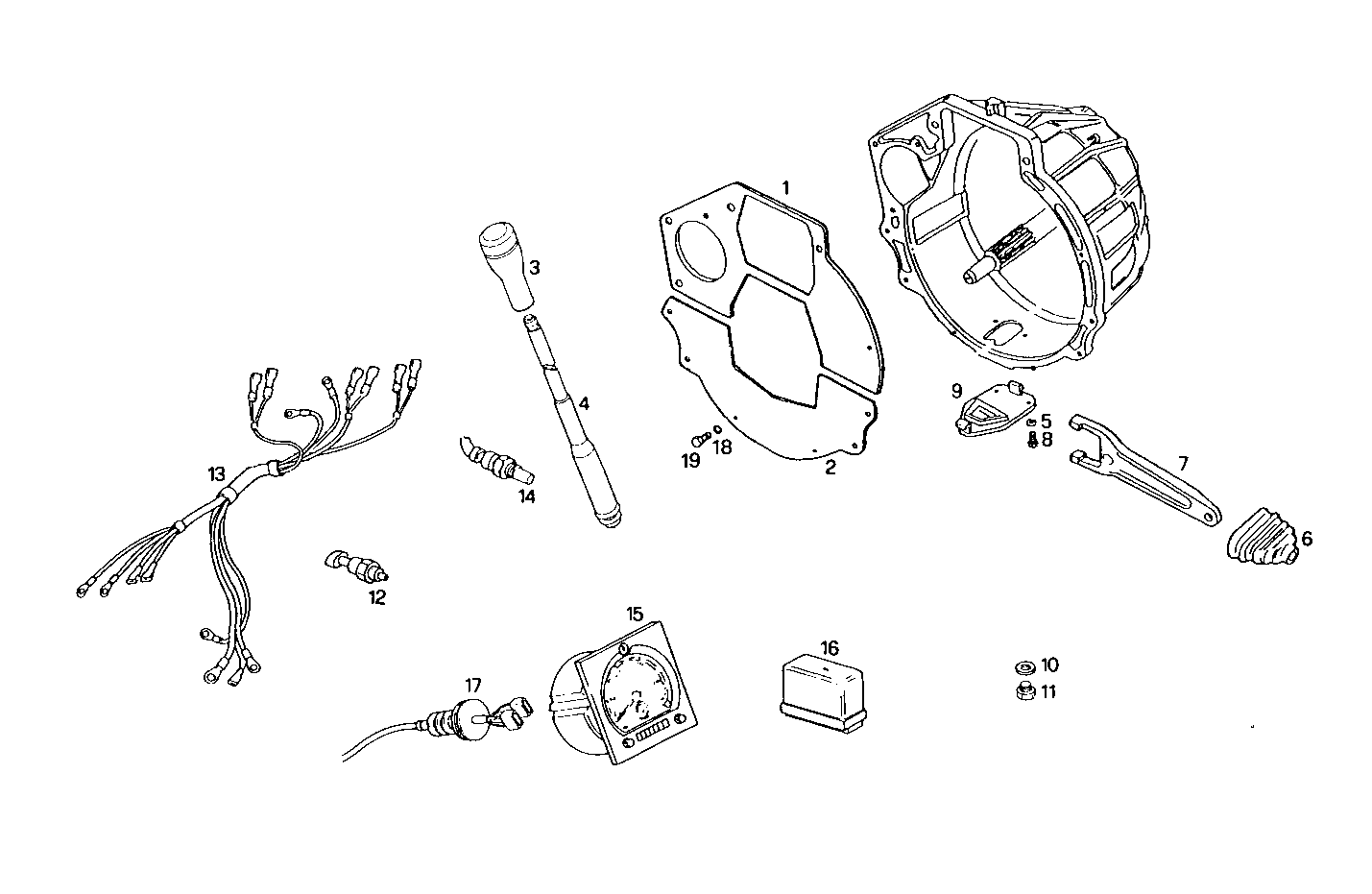

TRANSMISSION GROUP
8140SRC20.10 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 93801370 | PROTECTION PROTECTION | 1 | |
| 2 | 8867988 | PROTECTION PROTECTION | 1 | |
| 3 | 8576824 | LEVER KNOB LEVER KNOB | 1 | |
| 4 | 8868254 | ROD ROD | 1 | |
| 5 | 17088474 | WASHER WASHER | 3 | |
| 6 | 42116732 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 7 | 42116731 | LEVER LEVER | 1 | |
| 8 | 16603524 | SCREW SCREW | 3 | |
| 9 | 98441226 | COVER COVER | 1 | |
| 10 | 98429280 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 8007695 | PLUG PLUG | 2 | |
| 12 | 4846676 | REAR LIGHT SWITCH REAR LIGHT SWITCH | 1 | |
| 13 | 8023684 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 14 | 4834987 | TRANSMITTER TRANSMITTER | 1 | |
| 15 | 500304485 | SPEEDOMETER SPEEDOMETER | 1 | |
| 16 | 98418150 | ADAPTER ADAPTER | 1 | |
| 17 | 8014720 | WIRE/CABLE WIRE/CABLE | 1 | |
| 18 | 17088474 | WASHER WASHER | 3 | |
| 19 | 16603524 | SCREW SCREW | 3 |
