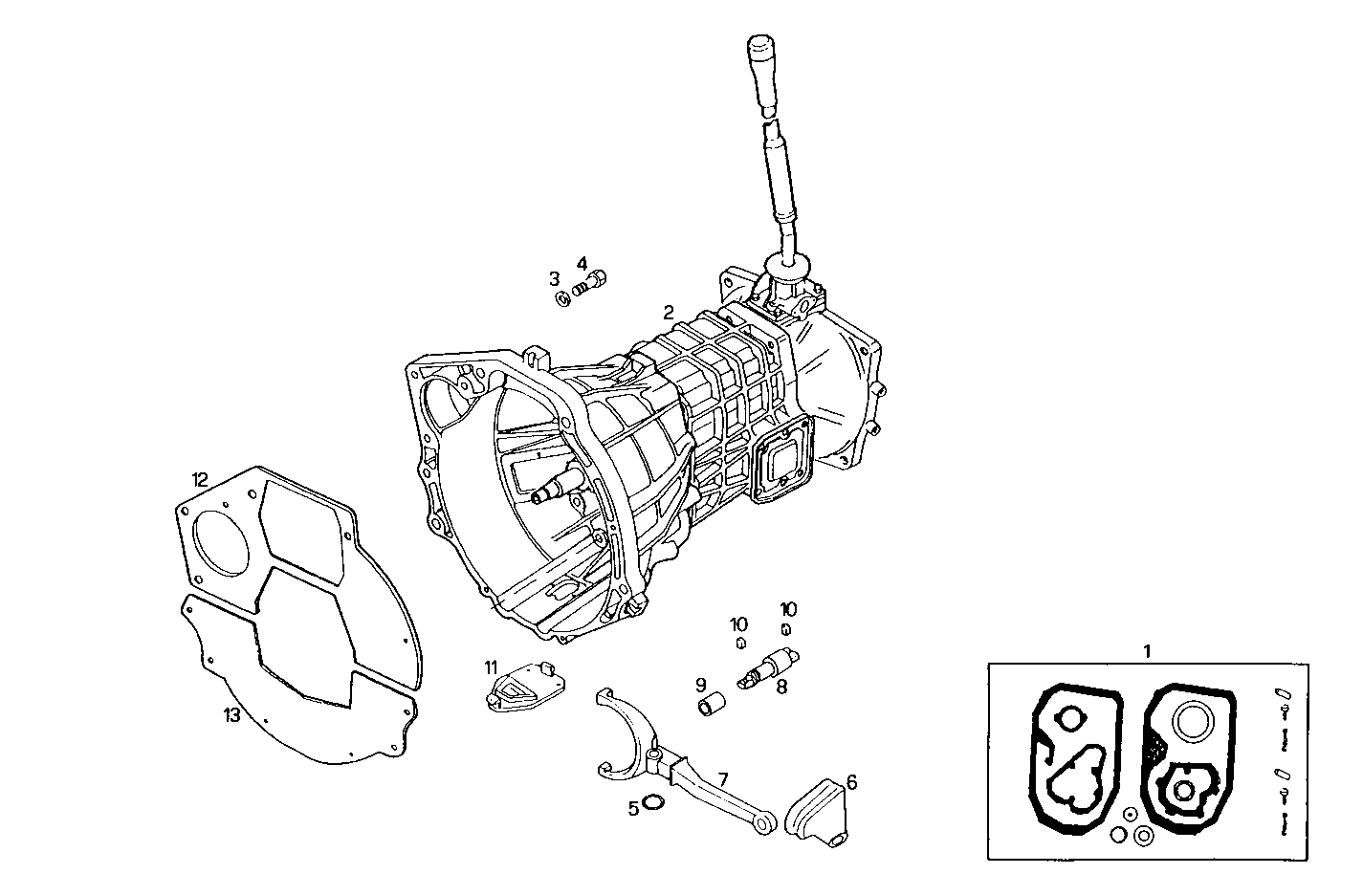

TRANSMISSION GROUP
8140SRC20.30 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8859615 | KIT-GEAR BOX KIT-GEAR BOX | 1 | |
| 2 | 8868233 | GEAR BOX/I GEAR BOX/I | 1 | |
| 3 | 17091074 | WASHER WASHER | 6 | |
| 4 | 15540921 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 5 | 16865873 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 6 | 42116732 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 7 | 42116734 | CLUTCH LEVER CLUTCH LEVER | 1 | |
| 8 | 42116735 | LEVER SHAFT LEVER SHAFT | 1 | |
| 9 | 42116740 | BUSH BUSH | 1 | |
| 10 | 42118054 | DOWEL PIN DOWEL PIN | 2 | |
| 11 | 98441226 | COVER COVER | 1 | |
| 12 | 93801370 | PROTECTION PROTECTION | 1 | |
| 13 | 8868444 | PROTECTION PROTECTION | 1 |
