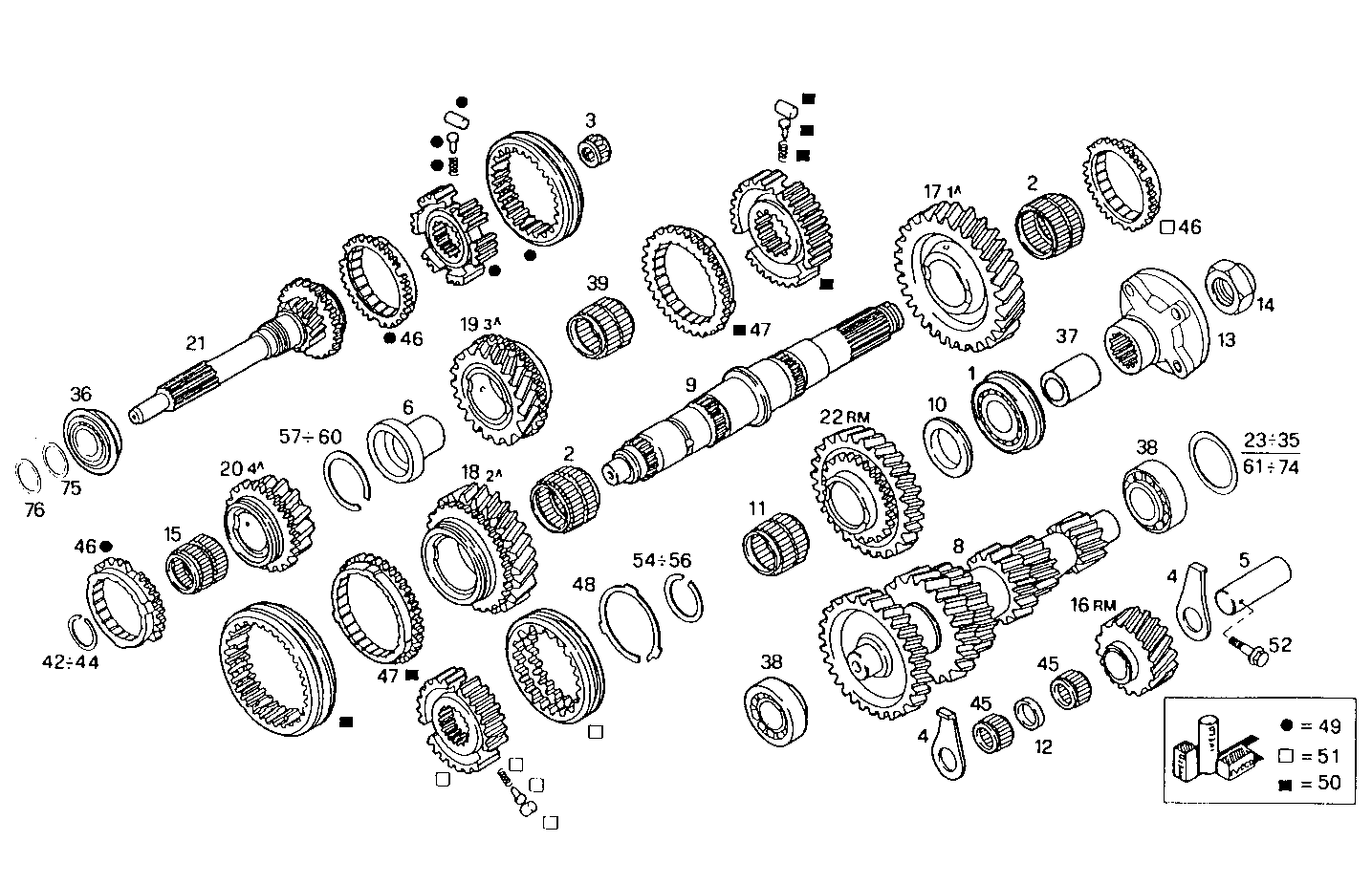

TRANSMISSION GROUP
8140SRC20.30 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1905340 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 2 | 8856975 | ROLLER CAGE ROLLER CAGE | 1 | |
| 3 | 8859074 | ROLLER CAGE ROLLER CAGE | 1 | |
| 4 | 8857305 | STOP WASHER STOP WASHER | 2 | |
| 5 | 8856952 | RETURN SHAFT RETURN SHAFT | 1 | |
| 6 | 8858680 | BUSH BUSH | 2 | |
| 8 | 8858876 | COUNTERSHAFT COUNTERSHAFT | 1 | |
| 9 | 8859641 | MAIN SHAFT MAIN SHAFT | 1 | |
| 10 | 8856970 | STOP WASHER STOP WASHER | 1 | |
| 11 | 8856974 | ROLLER CAGE ROLLER CAGE | 1 | |
| 12 | 8853003 | WASHER WASHER | 1 | |
| 13 | 8859844 | SHIFT SLEEVE SHIFT SLEEVE | 1 | |
| 14 | 8857862 | GROOVED NUT GROOVED NUT | 1 | |
| 15 | 8858644 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 16 | 8856931 | REVERSE GEAR REVERSE GEAR | 1 | |
| 17 | 8858891 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 18 | 8858890 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 19 | 8858880 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 20 | 8858889 | SPLITTER GEAR SPLITTER GEAR | 1 | |
| 21 | 8867926 | INPUT SHAFT INPUT SHAFT | 1 | |
| 22 | 8858847 | REVERSE GEAR REVERSE GEAR | 1 | |
| 23 | 8857028 | ADJUSTING RING ADJUSTING RING | 1 | |
| 24 | 8857029 | ADJUSTING RING ADJUSTING RING | 1 | |
| 25 | 8857030 | ADJUSTING RING ADJUSTING RING | 1 | |
| 26 | 8857031 | ADJUSTING RING ADJUSTING RING | 1 | |
| 27 | 8857032 | ADJUSTING RING ADJUSTING RING | 1 | |
| 28 | 8857033 | ADJUSTING RING ADJUSTING RING | 1 | |
| 29 | 8857034 | ADJUSTING RING ADJUSTING RING | 1 | |
| 30 | 8857035 | ADJUSTING RING ADJUSTING RING | 1 | |
| 31 | 8857036 | ADJUSTING RING ADJUSTING RING | 1 | |
| 32 | 8857037 | ADJUSTING RING ADJUSTING RING | 1 | |
| 33 | 8857795 | ADJUSTING RING ADJUSTING RING | 1 | |
| 34 | 8857796 | ADJUSTING RING ADJUSTING RING | 1 | |
| 35 | 8857797 | ADJUSTING RING ADJUSTING RING | 1 | |
| 36 | 1905341 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 37 | 8583606 | SPACING BAR SPACING BAR | 1 | |
| 38 | 1905291 | GEARBOX BEARINGS GEARBOX BEARINGS | 2 | |
| 39 | 8859288 | GEARBOX BEARINGS GEARBOX BEARINGS | 2 | |
| 42 | 8857018 | CIRCLIP CIRCLIP | 1 | |
| 43 | 8857019 | CIRCLIP CIRCLIP | 1 | |
| 44 | 8857020 | CIRCLIP CIRCLIP | 1 | |
| 45 | 1905292 | ROLLER CAGE ROLLER CAGE | 2 | |
| 46 | 8858923 | SYNCHRONIZER SYNCHRONIZER | 3 | |
| 47 | 8858711 | SYNCHRONIZER SYNCHRONIZER | 2 | |
| 48 | 8859395 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 49 | 8859605 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 50 | 8859606 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 51 | 8859607 | KIT-SYNCHRONIZER KIT-SYNCHRONIZER | 1 | |
| 52 | 16585824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 54 | 8857015 | CIRCLIP CIRCLIP | 1 | |
| 55 | 8857016 | CIRCLIP CIRCLIP | 1 | |
| 56 | 8857017 | CIRCLIP CIRCLIP | 1 | |
| 57 | 8859365 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 58 | 8859366 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 59 | 8859367 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 60 | 8859368 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 61 | 8857798 | ADJUSTING RING ADJUSTING RING | 1 | |
| 62 | 8857799 | ADJUSTING RING ADJUSTING RING | 1 | |
| 63 | 8857800 | ADJUSTING RING ADJUSTING RING | 1 | |
| 64 | 8857801 | ADJUSTING RING ADJUSTING RING | 1 | |
| 65 | 8857802 | ADJUSTING RING ADJUSTING RING | 1 | |
| 66 | 8857803 | ADJUSTING RING ADJUSTING RING | 1 | |
| 67 | 8859653 | ADJUSTING RING ADJUSTING RING | 1 | |
| 68 | 8859654 | ADJUSTING RING ADJUSTING RING | 1 | |
| 69 | 8859655 | ADJUSTING RING ADJUSTING RING | 1 | |
| 70 | 8859656 | ADJUSTING RING ADJUSTING RING | 1 | |
| 71 | 8859657 | ADJUSTING RING ADJUSTING RING | 1 | |
| 72 | 8859658 | ADJUSTING RING ADJUSTING RING | 1 | |
| 73 | 8859659 | ADJUSTING RING ADJUSTING RING | 1 | |
| 74 | 8859660 | ADJUSTING RING ADJUSTING RING | 1 | |
| 75 | 8868295 | SET OF SHIMS SET OF SHIMS | 1 | |
| 76 | 8868304 | STOP WASHER STOP WASHER | 1 |
