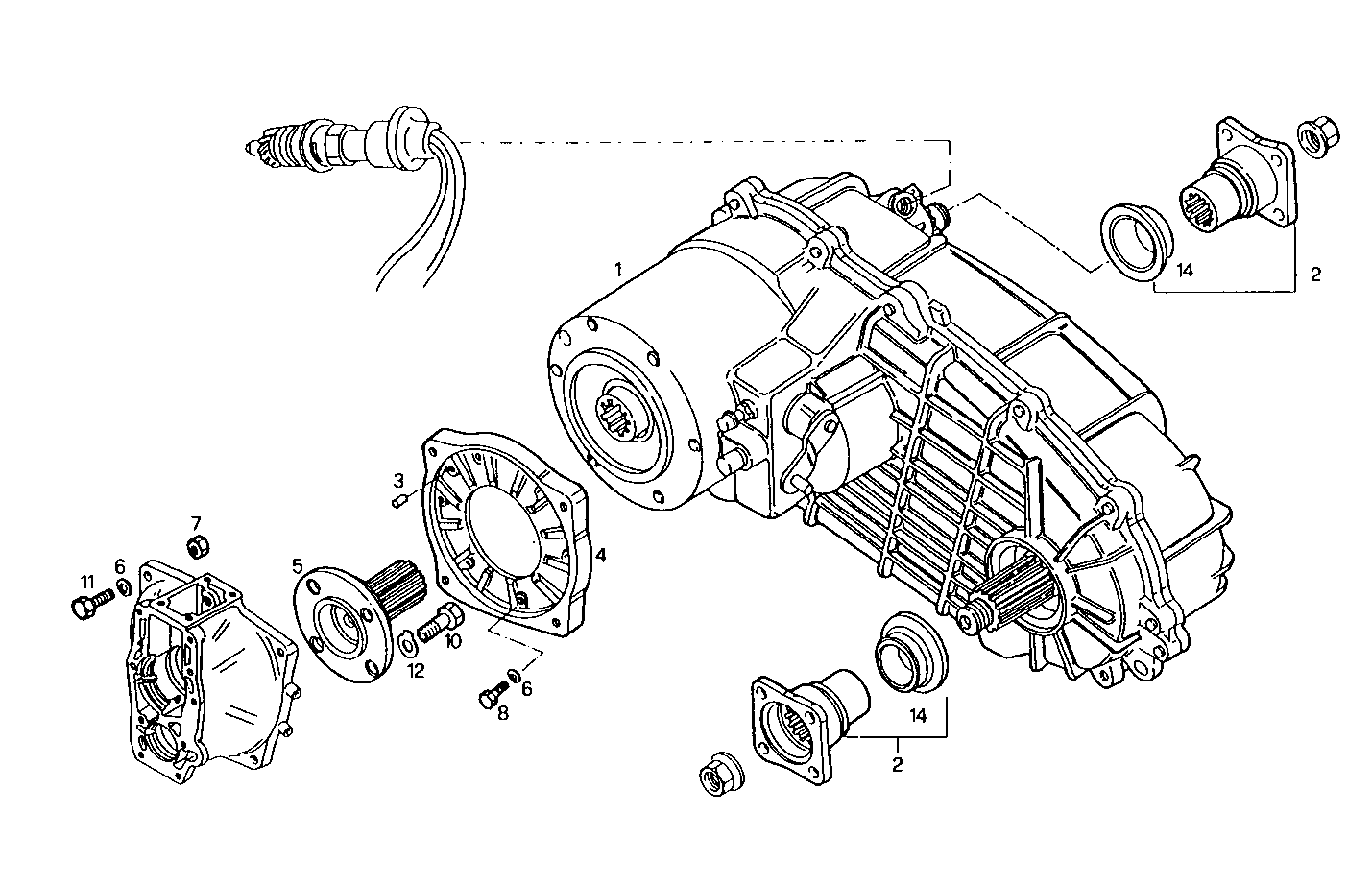

TRANSMISSION GROUP
8140SRC20.30 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8851320 | POWER DIVIDER UNIT POWER DIVIDER UNIT | 1 | |
| 2 | 8850467 | SHIFT SLEEVE SHIFT SLEEVE | 2 | |
| 3 | 8577410 | DOWEL PIN DOWEL PIN | 1 | |
| 4 | 8583600 | REAR G.BOX COVER REAR G.BOX COVER | 1 | |
| 5 | 8850403 | SPLIT SHAFT SPLIT SHAFT | 1 | |
| 6 | 17798374 | SPRING WASHER SPRING WASHER | 10 | |
| 7 | 16979731 | NUT NUT | 4 | |
| 8 | 11106621 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 10 | 11540421 | SCREW SCREW | 4 | |
| 11 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 14198901 | LOCKING PLATE LOCKING PLATE | 4 | |
| 14 | 8850468 | RING RING | 2 |
