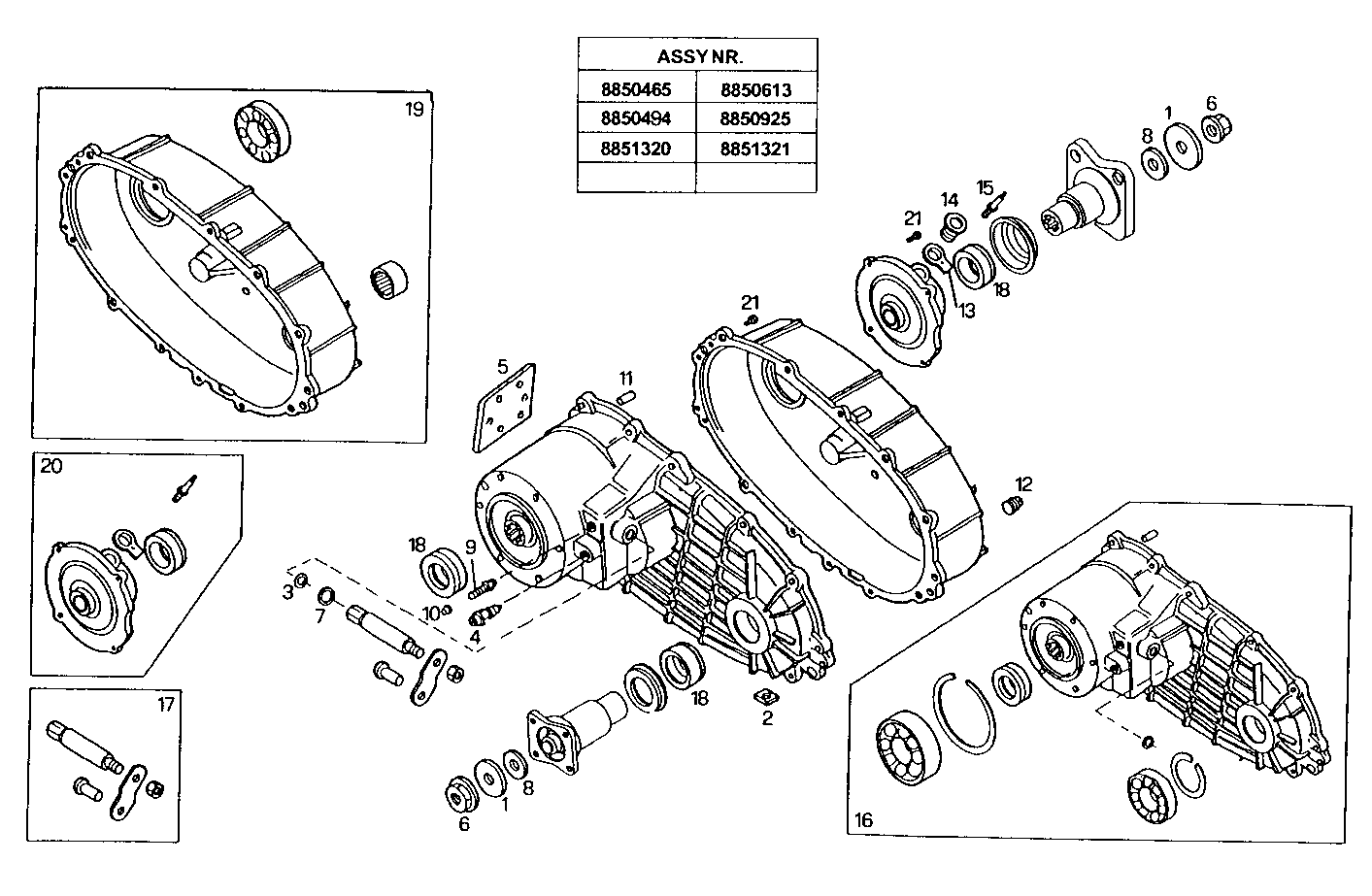

TRANSMISSION GROUP
8140SRC20.30 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8121475 | WASHER WASHER | 2 | |
| 2 | 8121476 | LOCKING PLATE LOCKING PLATE | 1 | |
| 3 | 8121497 | CIRCLIP CIRCLIP | 1 | |
| 4 | 4858666 | SWITCH SWITCH | 1 | |
| 5 | 42531528 | COVER COVER | 1 | |
| 6 | 8851425 | WING NUT WING NUT | 2 | |
| 7 | 8198736 | WASHER WASHER | 1 | |
| 8 | 8851424 | WASHER WASHER | 2 | |
| 9 | 8198738 | BREATHER CONN. BREATHER CONN. | 1 | |
| 10 | 8198739 | PLUG PLUG | 1 | |
| 11 | 8198741 | PIN PIN | 2 | |
| 12 | 8198743 | THREADED PLUG THREADED PLUG | 1 | |
| 13 | 8198746 | PLATE PLATE | 1 | |
| 14 | 8198747 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 8198748 | PIN PIN | 1 | |
| 16 | 93193215 | TRANSFER BOX CASE TRANSFER BOX CASE | 1 | |
| 17 | 93156723 | SHAFT SHAFT | 1 | |
| 18 | 93192159 | WASHER WASHER | 3 | |
| 19 | 93156725 | TRANSF.CASE COVER TRANSF.CASE COVER | 1 | |
| 20 | 93156726 | COVER COVER | 1 | |
| 21 | 93155065 | SCREW SCREW | 16 |
