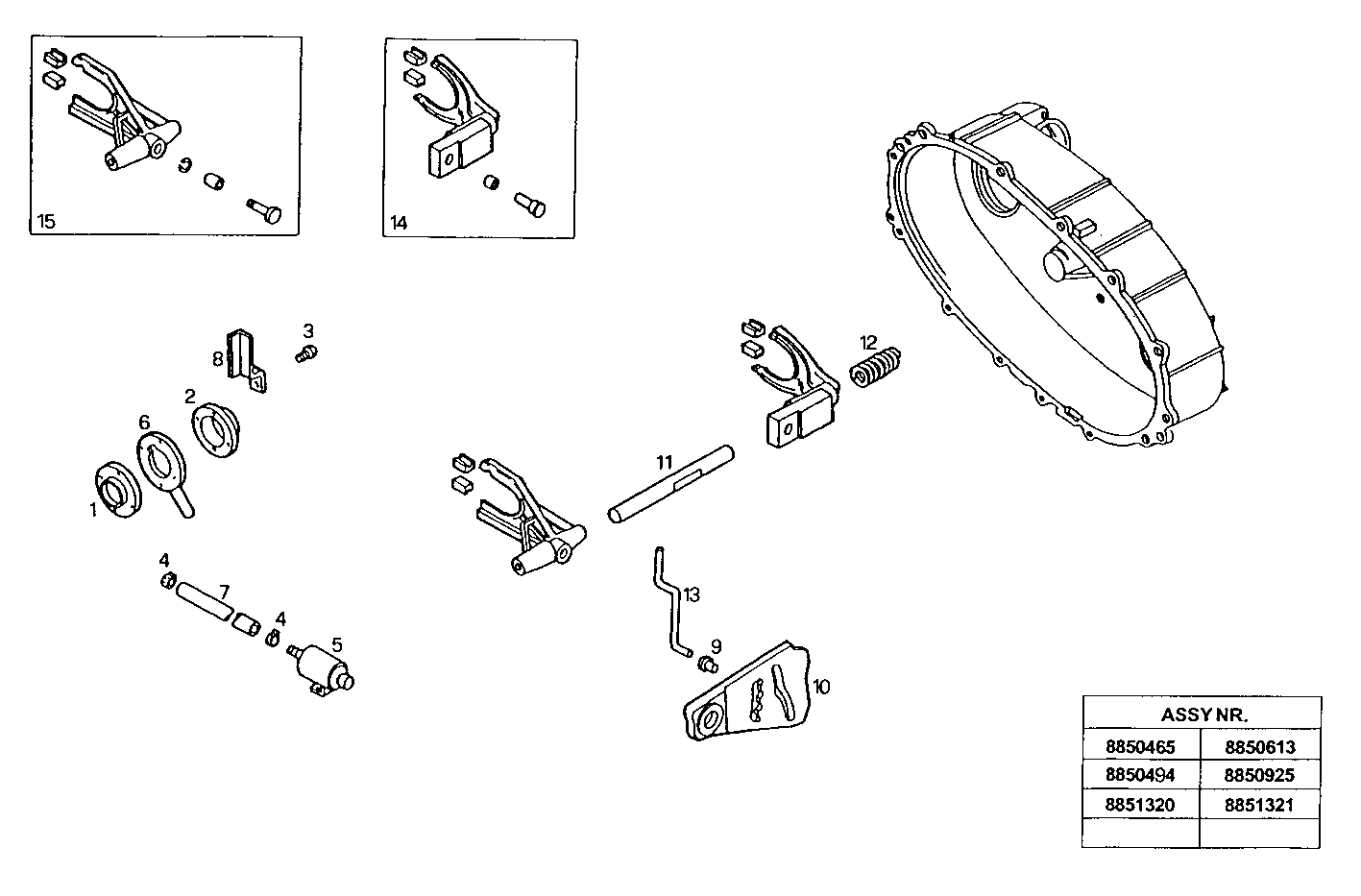

TRANSMISSION GROUP
8140SRC20.30 — 8140SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8121480 | COVER COVER | 1 | |
| 2 | 8121482 | COVER COVER | 1 | |
| 3 | 8121483 | SCREW SCREW | 1 | |
| 4 | 8121485 | CLIP CLIP | 2 | |
| 5 | 8121487 | FILTER FILTER | 1 | |
| 6 | 8190521 | PUMP HOUSING PUMP HOUSING | 1 | |
| 7 | 8198749 | PIPE PIPE | 1 | |
| 8 | 8198750 | PLATE PLATE | 1 | |
| 9 | 8198753 | PIN PIN | 1 | |
| 10 | 93193227 | PLATE PLATE | 1 | |
| 11 | 8198757 | SHIFT FORK ROD SHIFT FORK ROD | 1 | |
| 12 | 93191678 | SPRING SPRING | 1 | |
| 13 | 8198761 | SPRING SPRING | 1 | |
| 14 | 93190886 | SHIFT FORK SHIFT FORK | 1 | |
| 15 | 93190887 | SHIFT FORK SHIFT FORK | 1 |
