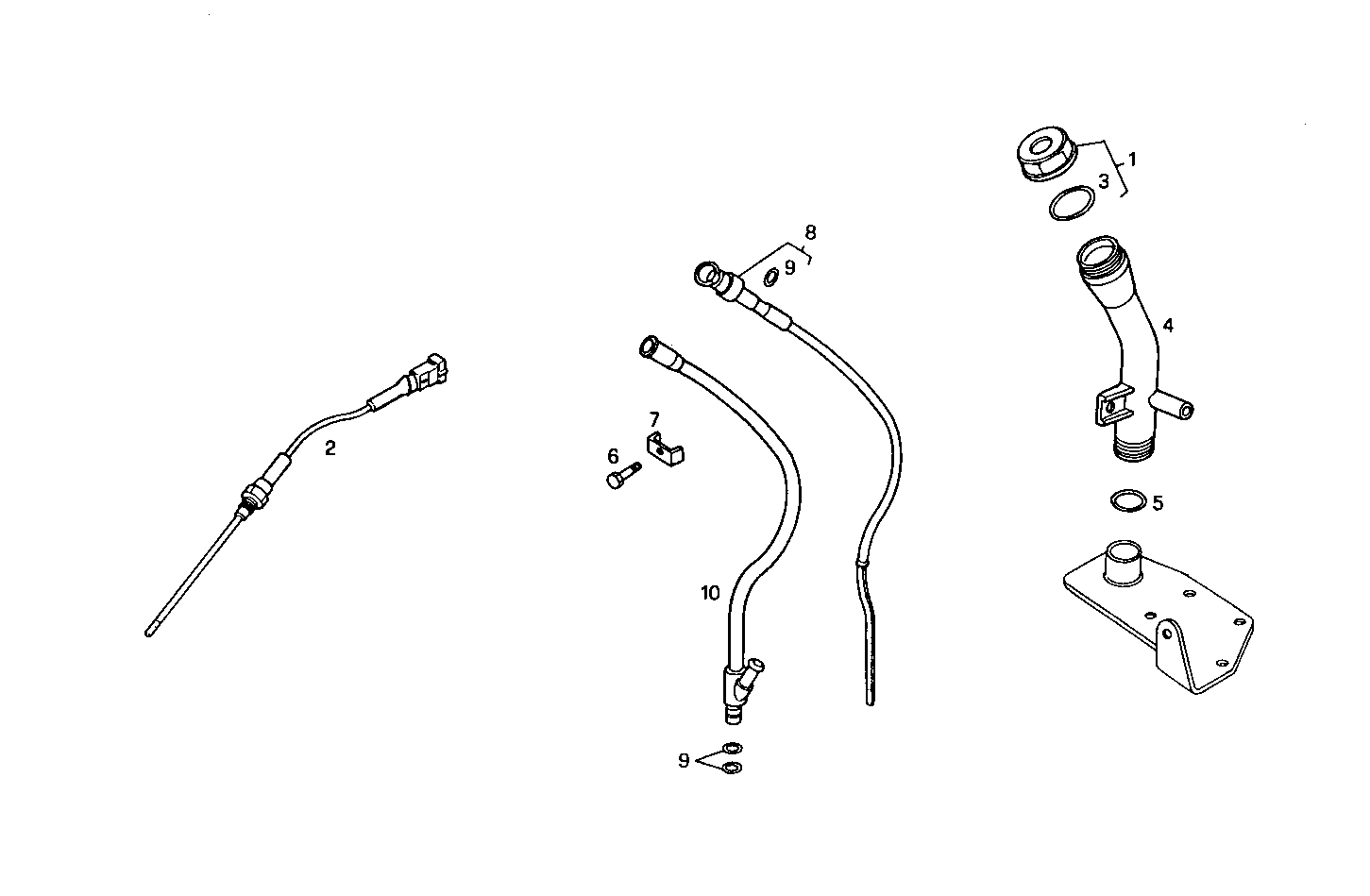

OIL DIPSTICK
8140SRC21.00 — 8140SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 500325018 | OIL LEVEL SENSOR OIL LEVEL SENSOR | 1 | |
| 3 | 17295480 | O-RING O-RING | 1 | |
| 4 | 99470999 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 5 | 17282581 | O-RING O-RING | 1 | |
| 6 | 16673734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 4716870 | RETAINER RETAINER | 1 | |
| 8 | 500352874 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 9 | 17277981 | O-RING O-RING | 3 | |
| 10 | 500352877 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 |
