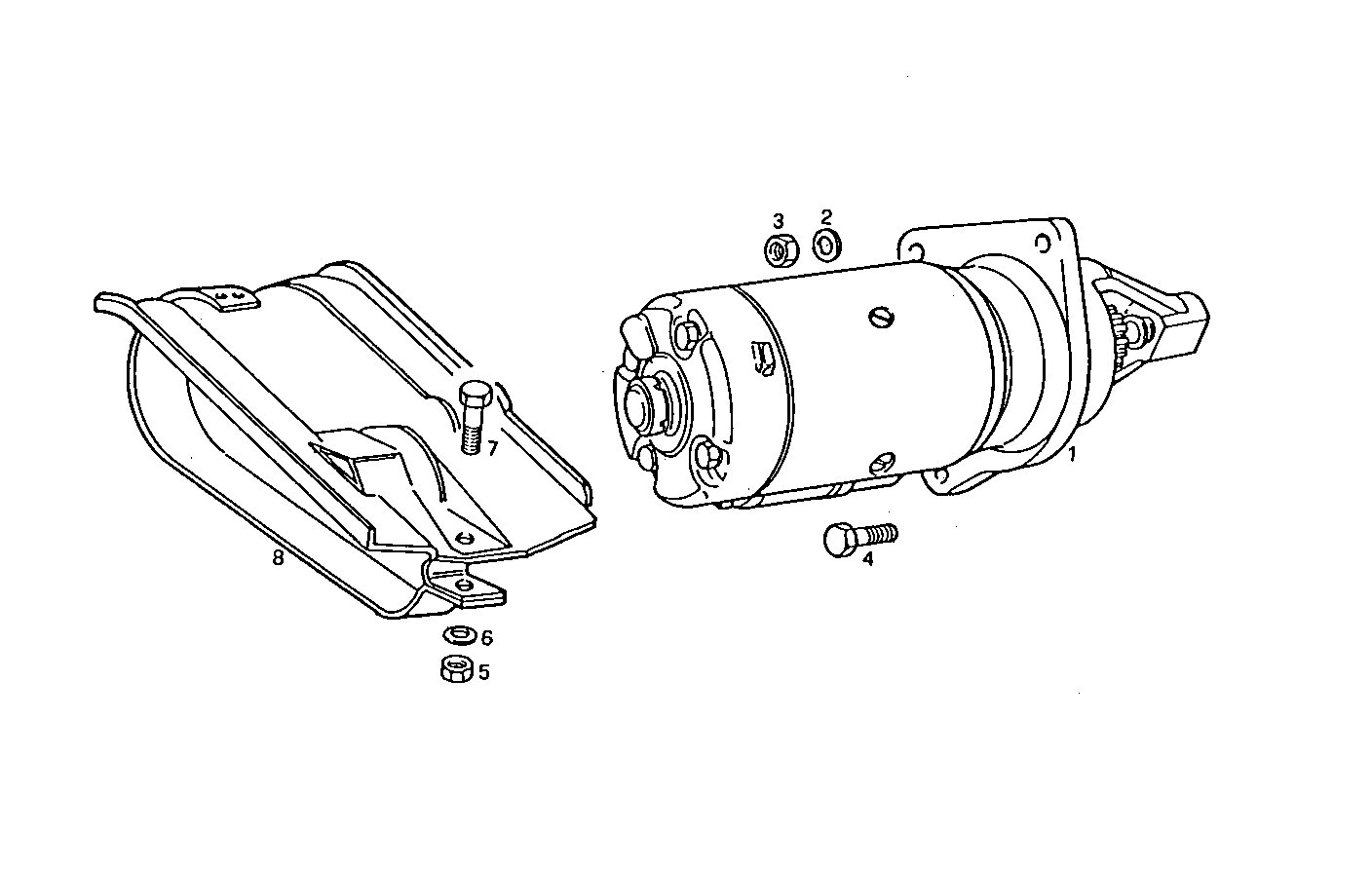

STARTER MOTOR - 24V
8140SRC30.00 — 8140SRC30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4807379 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 3 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 98473354 | BRACKET BRACKET | 1 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 11306921 | SCREW SCREW | 1 | |
| 8 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 8029324 | WATER PIPE WATER PIPE | 1 | |
| 10 | 17764591 | CLIP CLIP | 2 |
