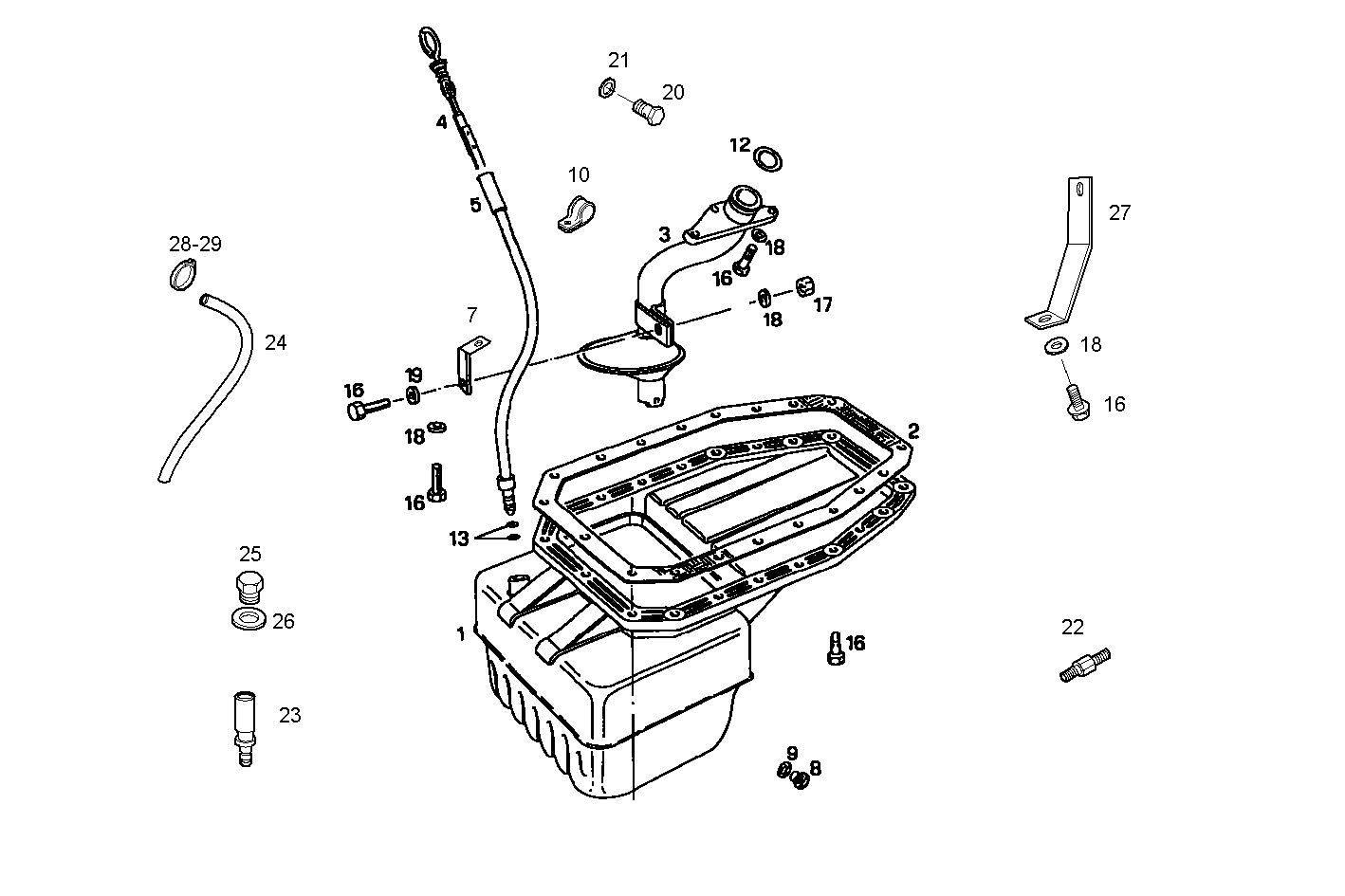

OIL SUMP
8140SRC30.20A002 — 8140SRC30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007544 | OIL SUMP OIL SUMP | 1 | |
| 2 | 99488483 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 7300542 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 4 | 8016591 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 5 | 8039908 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 7 | 8031803 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 10263460 | WASHER WASHER | 1 | |
| 10 | 17316690 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 12 | 17282221 | O-RING O-RING | 1 | |
| 13 | 17277981 | O-RING O-RING | 4 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 17 | 17152821 | NUT NUT | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 19 | 17094914 | WASHER WASHER | 1 | |
| 20 | 16605424 | SCREW SCREW | 1 | |
| 21 | 17044721 | HEXAGON NUT HEXAGON NUT | 1 | |
| 22 | 8025264 | STUD STUD | 1 | |
| 23 | 8019206 | OIL LINE OIL LINE | 1 | |
| 24 | 500368999 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 11903211 | LOCK PLUG LOCK PLUG | 1 | |
| 26 | 4858607 | WASHER WASHER | 1 | |
| 27 | 8019884 | RETAINER RETAINER | 1 | |
| 28 | 18088391 | CLIP CLIP | 1 | |
| 29 | 18088491 | CLIP CLIP | 1 |
