ACCESSORIES
8140SRC30.20A003 — 8140SRC30

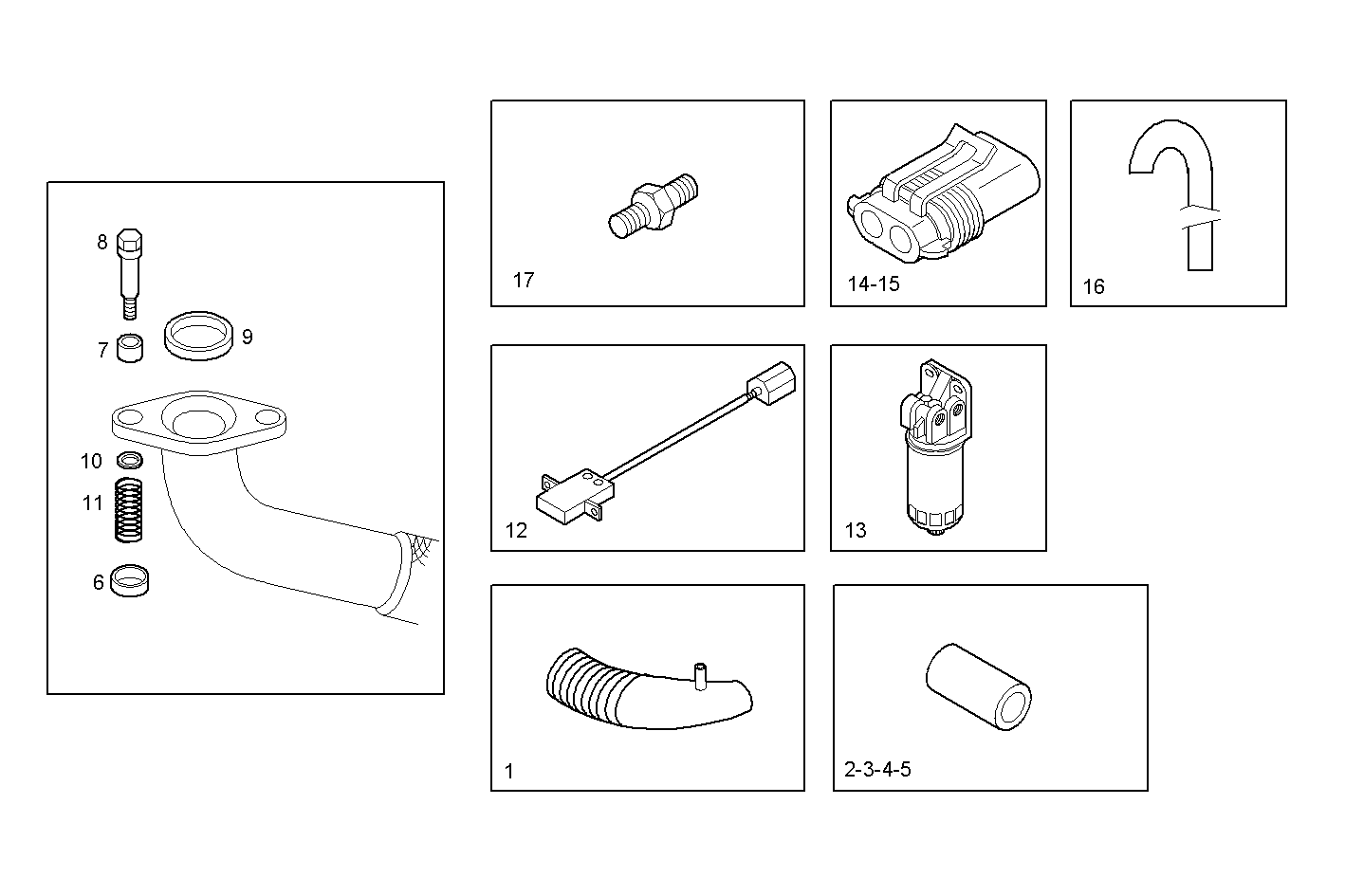

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500366843 | FILTER HOSE FILTER HOSE | 1 | |
| 2 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 98438633 | WATER HOSE WATER HOSE | 1 | |
| 4 | 93809147 | WATER HOSE WATER HOSE | 1 | |
| 5 | 93811591 | WATER HOSE WATER HOSE | 1 | |
| 6 | 9150917480 | COVER COVER | 2 | |
| 7 | 9150951680 | BUSH BUSH | 2 | |
| 8 | 9152127080 | SCREW SCREW | 2 | |
| 9 | 9603895480 | RING RING | 1 | |
| 10 | 42533772 | WASHER WASHER | 2 | |
| 11 | 9607970680 | SPRING SPRING | 2 | |
| 12 | 99464594 | SWITCH SWITCH | 1 | |
| 13 | 504044712 | FUEL FILTER FUEL FILTER | 1 | |
| 14 | 8030573 | CONNECTION CONNECTION | 3 | |
| 15 | 8030572 | CONNECTION CONNECTION | 1 | |
| 16 | 500365202 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 17 | 500344936 | THREADED UNION THREADED UNION | 1 |
