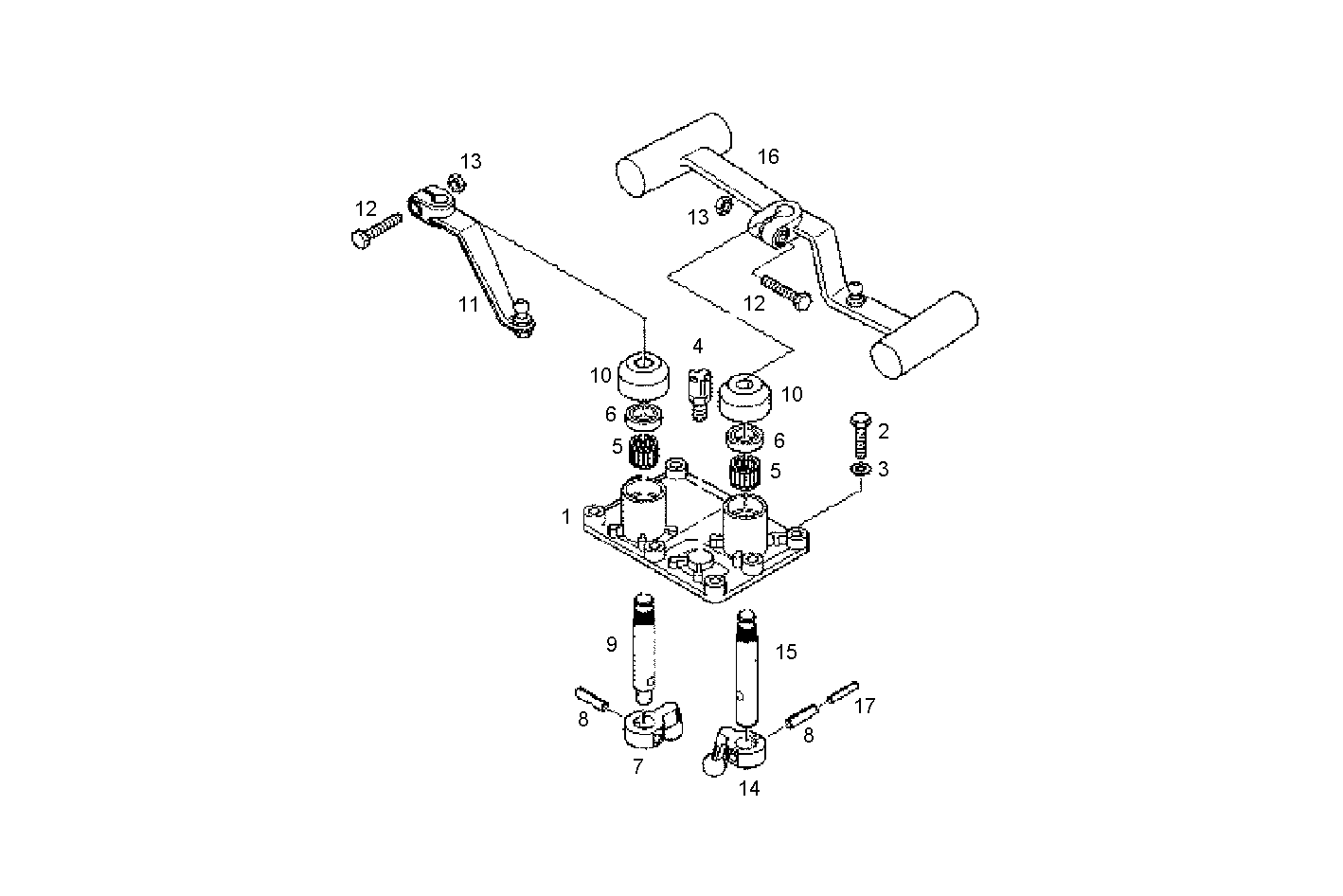

TRANSMISSION
8140SRC30.20A003 — 8140SRC30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8868879 | HOUSING HOUSING | 1 | |
| 2 | 1100233 | SCREW SCREW | 8 | |
| 3 | 14488821 | WASHER WASHER | 8 | |
| 4 | 17999691 | BREATHER BREATHER | 1 | |
| 5 | 8869714 | ROLLER CAGE ROLLER CAGE | 2 | |
| 6 | 40102753 | SHAFT SEAL SHAFT SEAL | 2 | |
| 7 | 42538164 | LEVER LEVER | 1 | |
| 8 | 17259470 | DOWEL PIN DOWEL PIN | 2 | |
| 9 | 8868878 | GEAR SHIFT SHAFT GEAR SHIFT SHAFT | 1 | |
| 10 | 8868600 | CAP CAP | 2 | |
| 11 | 8871235 | GEARSHIFT LEVER GEARSHIFT LEVER | 1 | |
| 12 | 42534977 | SCREW SCREW | 2 | |
| 13 | 9984331 | NUT NUT | 2 | |
| 14 | 42538158 | LEVER LEVER | 1 | |
| 15 | 8868877 | GEAR SHIFT SHAFT GEAR SHIFT SHAFT | 1 | |
| 16 | 500342963 | GEARSHIFT LEVER GEARSHIFT LEVER | 1 | |
| 17 | 17256070 | DOWEL PIN DOWEL PIN | 1 |
