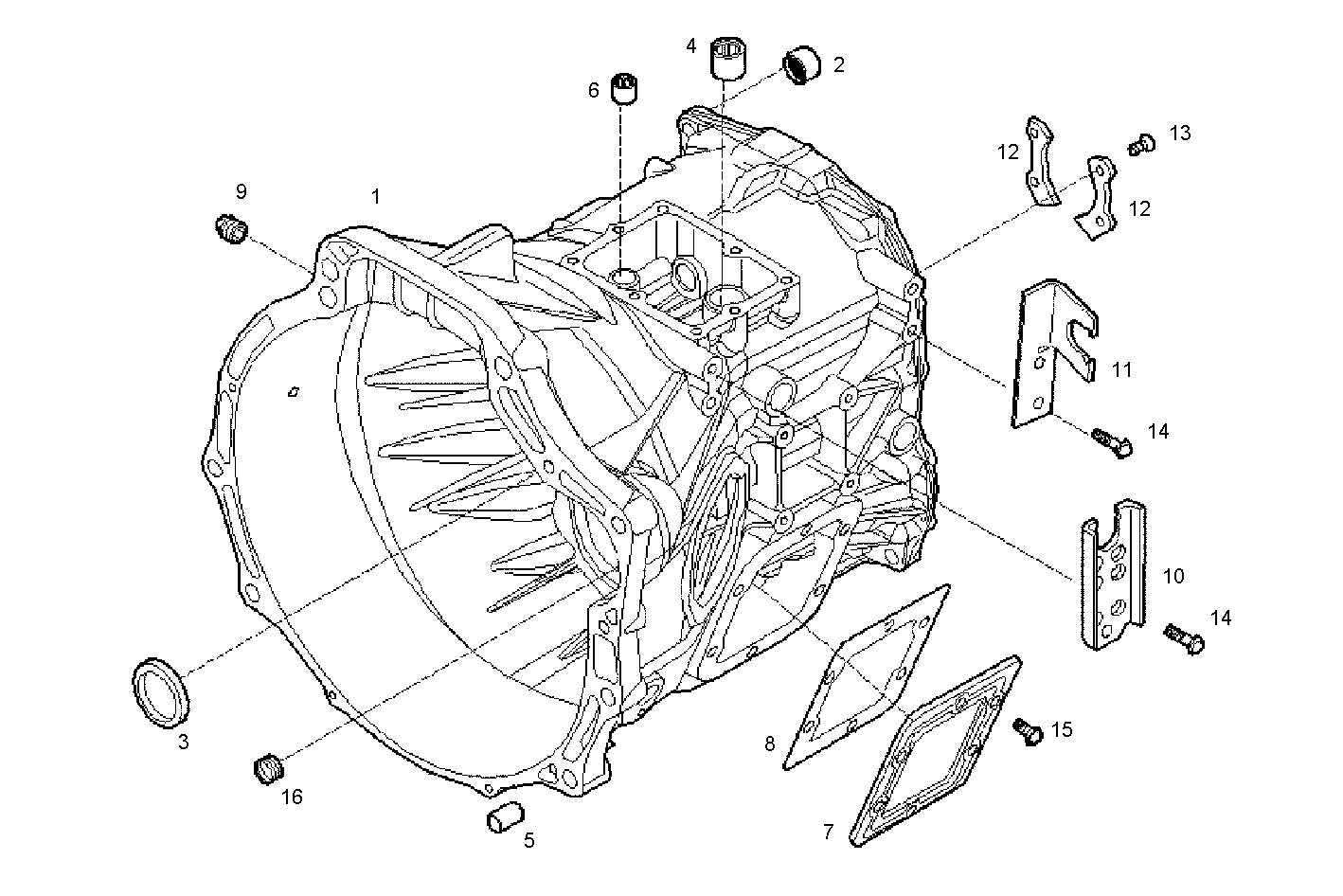

TRANSMISSION
8140SRC30.20A005 — 8140SRC30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 42534930 | TRANSMISSION CASE TRANSMISSION CASE | 1 | |
| 2 | 42534931 | BALL CAGE BALL CAGE | 1 | |
| 3 | 42534932 | SHAFT SEAL SHAFT SEAL | 1 | |
| 4 | 9920781 | GEARBOX BEARINGS GEARBOX BEARINGS | 1 | |
| 5 | 8869098 | DOWEL PIN DOWEL PIN | 1 | |
| 6 | 42534933 | ROLLER CAGE ROLLER CAGE | 1 | |
| 7 | 42531475 | LOWER G.BOX COVER LOWER G.BOX COVER | 1 | |
| 8 | 8190937 | FLAT GEARBOX GKT FLAT GEARBOX GKT | 1 | |
| 9 | 42534935 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 8868800 | SUPPORT SUPPORT | 1 | |
| 11 | 42534936 | SUPPORT SUPPORT | 1 | |
| 12 | 42534937 | LOCKING PLATE LOCKING PLATE | 2 | |
| 13 | 42534934 | SCREW SCREW | 4 | |
| 14 | 93160889 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 1127052 | HEXAGON BOLT HEXAGON BOLT | 6 |
