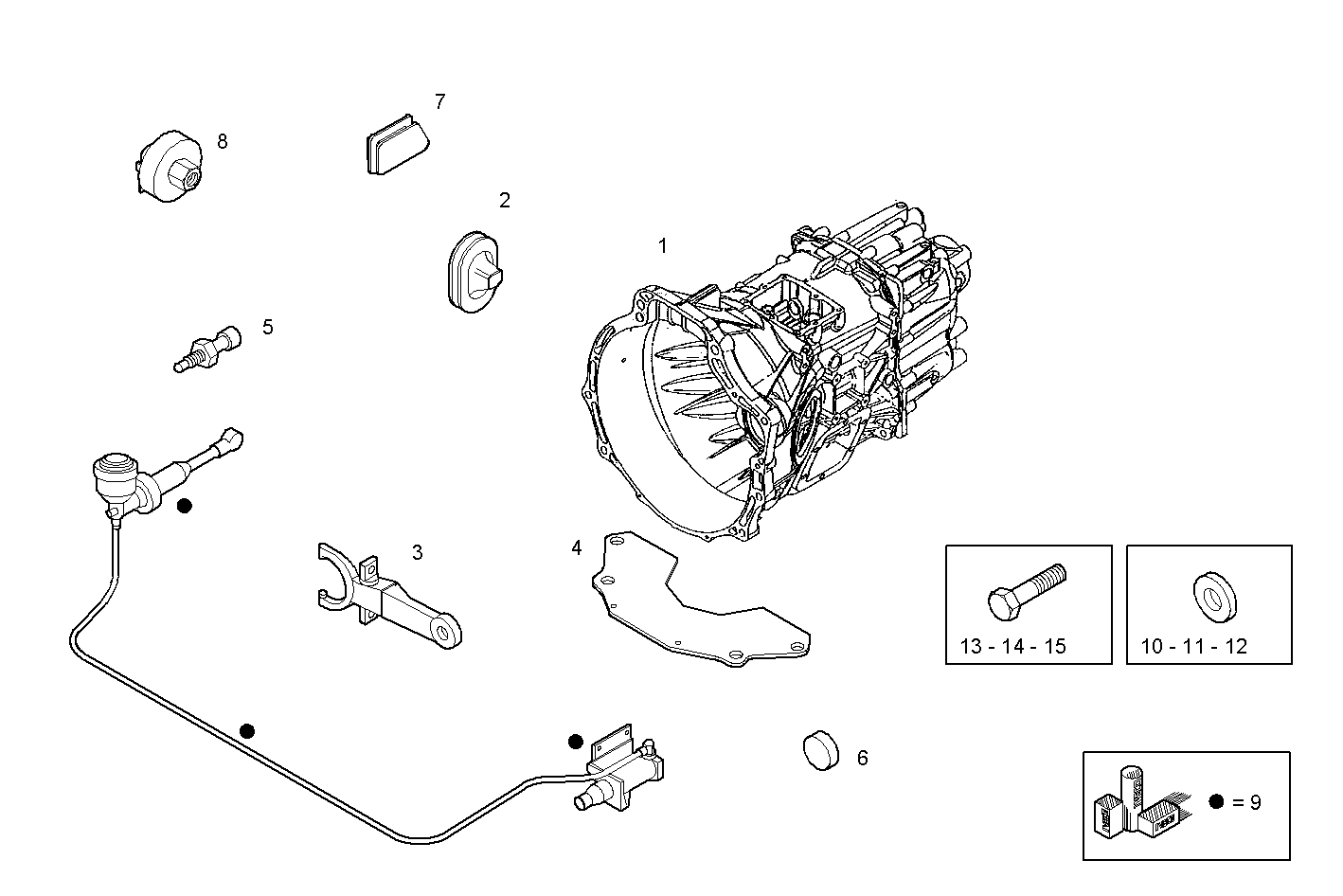

TRANSMISSION
8140SRC30.40A001 — 8140SRC30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8871859 | GEAR BOX/I GEAR BOX/I | 1 | |
| 2 | 99479450 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 3 | 99479447 | SUPPORT SUPPORT | 1 | |
| 4 | 8867988 | PROTECTION PROTECTION | 1 | |
| 5 | 504075820 | ELECTRON.TRANSMITT ELECTRON.TRANSMITT | 1 | |
| 6 | 504066904 | PLUG PLUG | 1 | |
| 7 | 500361500 | RUBBER PLUG RUBBER PLUG | 1 | |
| 8 | 500335678 | REAR LIGHT SWITCH REAR LIGHT SWITCH | 1 | |
| 9 | 500334937 | KIT-HYDRAULIC CLUTCH CYL. KIT-HYDRAULIC CLUTCH CYL. | 1 | |
| 10 | 17091074 | WASHER WASHER | 6 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17088774 | WASHER WASHER | 3 | |
| 13 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 16603525 | SCREW SCREW | 3 | |
| 15 | 15540924 | HEXAGON BOLT HEXAGON BOLT | 6 |
