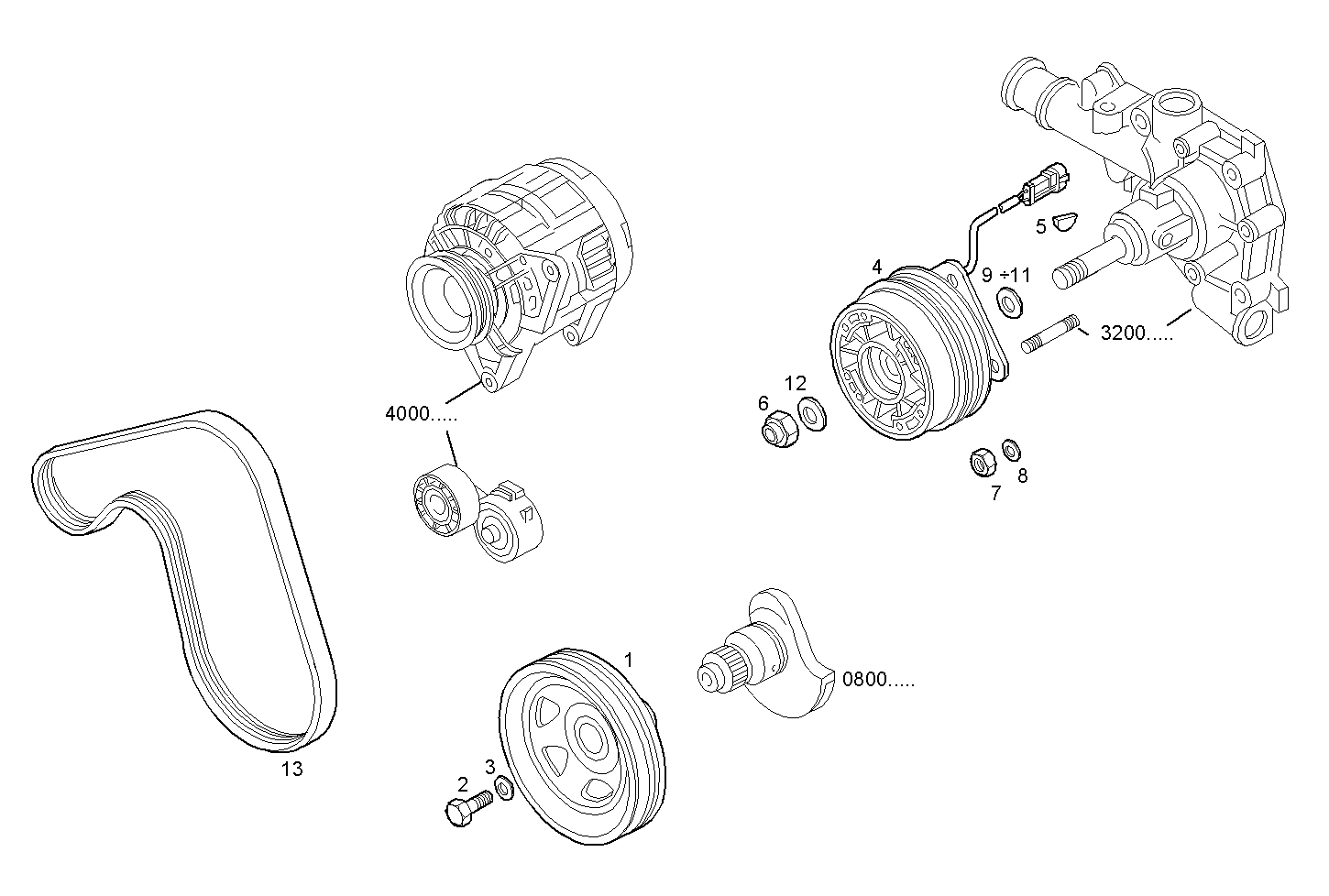

WATER PUMP DRIVE
8140SRC30.40A001 — 8140SRC30
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500332296 | CRANKSHAFT PULLEY CRANKSHAFT PULLEY | 1 | |
| 2 | 98419203 | SCREW SCREW | 1 | |
| 3 | 500346011 | SPACING BAR SPACING BAR | 1 | |
| 4 | 99473900 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 5 | 10205710 | KEY KEY | 1 | |
| 6 | 500333918 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 98493778 | WASHER WASHER | 1 | |
| 10 | 98437565 | WASHER WASHER | 1 | |
| 11 | 98493779 | WASHER WASHER | 1 | |
| 12 | 17092074 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 500368902 | WATER PUMP BELT WATER PUMP BELT | 1 |
