ACCESSORIES
8140SRC31.35A001- 1D — 8140SRC31

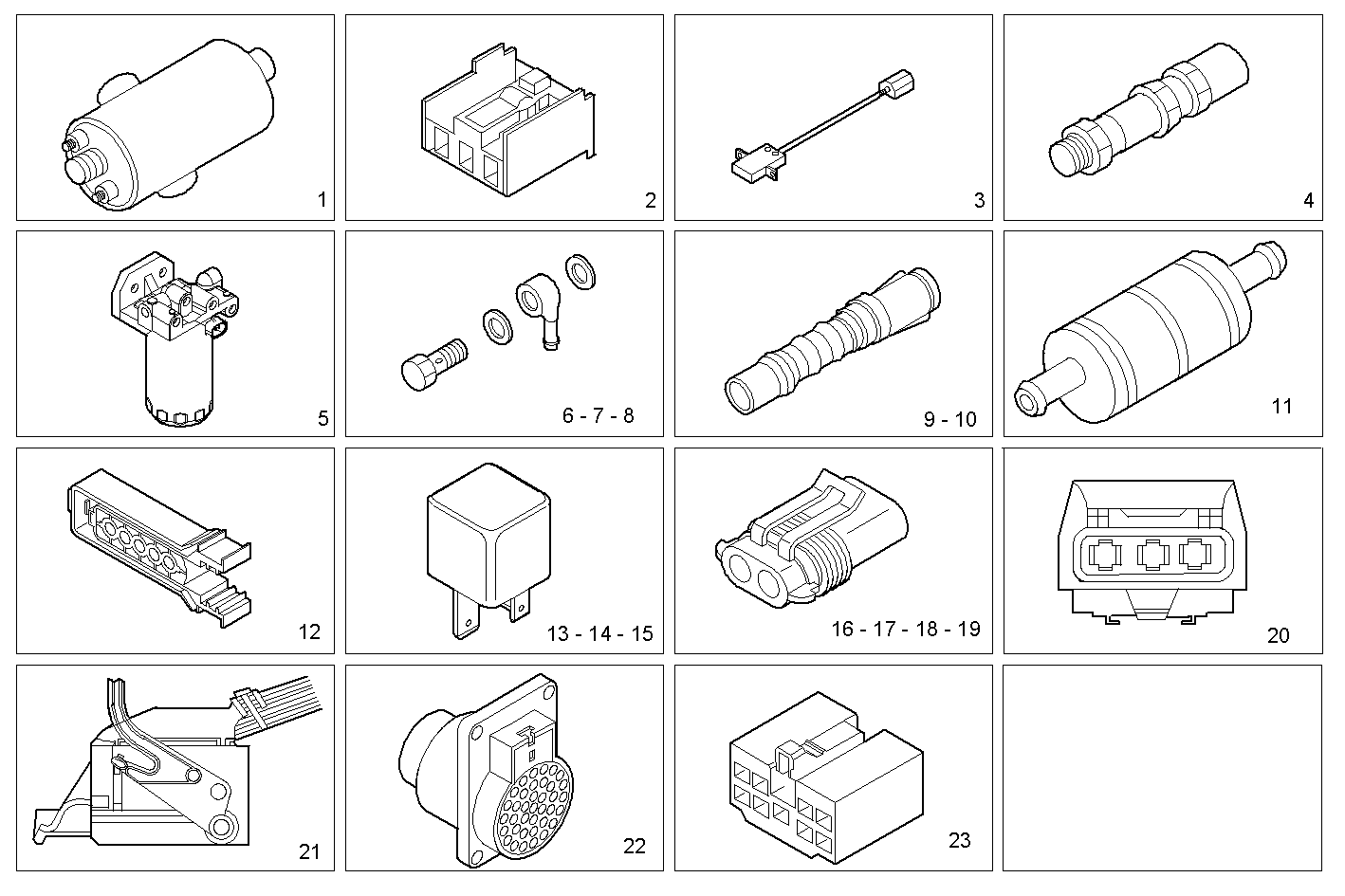

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500358094 | FUEL PUMP FUEL PUMP | 1 | |
| 2 | 8031430 | CONNECTION CONNECTION | 2 | |
| 3 | 99464594 | SWITCH SWITCH | 1 | |
| 4 | 500319244 | LIGHT STOP SWITCH LIGHT STOP SWITCH | 1 | |
| 5 | 504034184 | FUEL FILTER FUEL FILTER | 1 | |
| 6 | 4864071 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 9 | 500373710 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 500373711 | PIPE SOCKET PIPE SOCKET | 2 | |
| 11 | 500318246 | PREFILTER PREFILTER | 1 | |
| 12 | 8030193 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 13 | 500326618 | RELAY RELAY | 1 | |
| 14 | 500341925 | RELAY RELAY | 1 | |
| 15 | 500326610 | RELAY RELAY | 5 | |
| 16 | 8030572 | CONNECTION CONNECTION | 1 | |
| 17 | 8030573 | CONNECTION CONNECTION | 2 | |
| 18 | 8030571 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 19 | 8030574 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 20 | 8030575 | CONNECTION CONNECTION | 1 | |
| 21 | 8029081 | CONNECTION CONNECTION | 1 | |
| 22 | 8031432 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 23 | 8031431 | WIRE CONNECTOR WIRE CONNECTOR | 1 |
