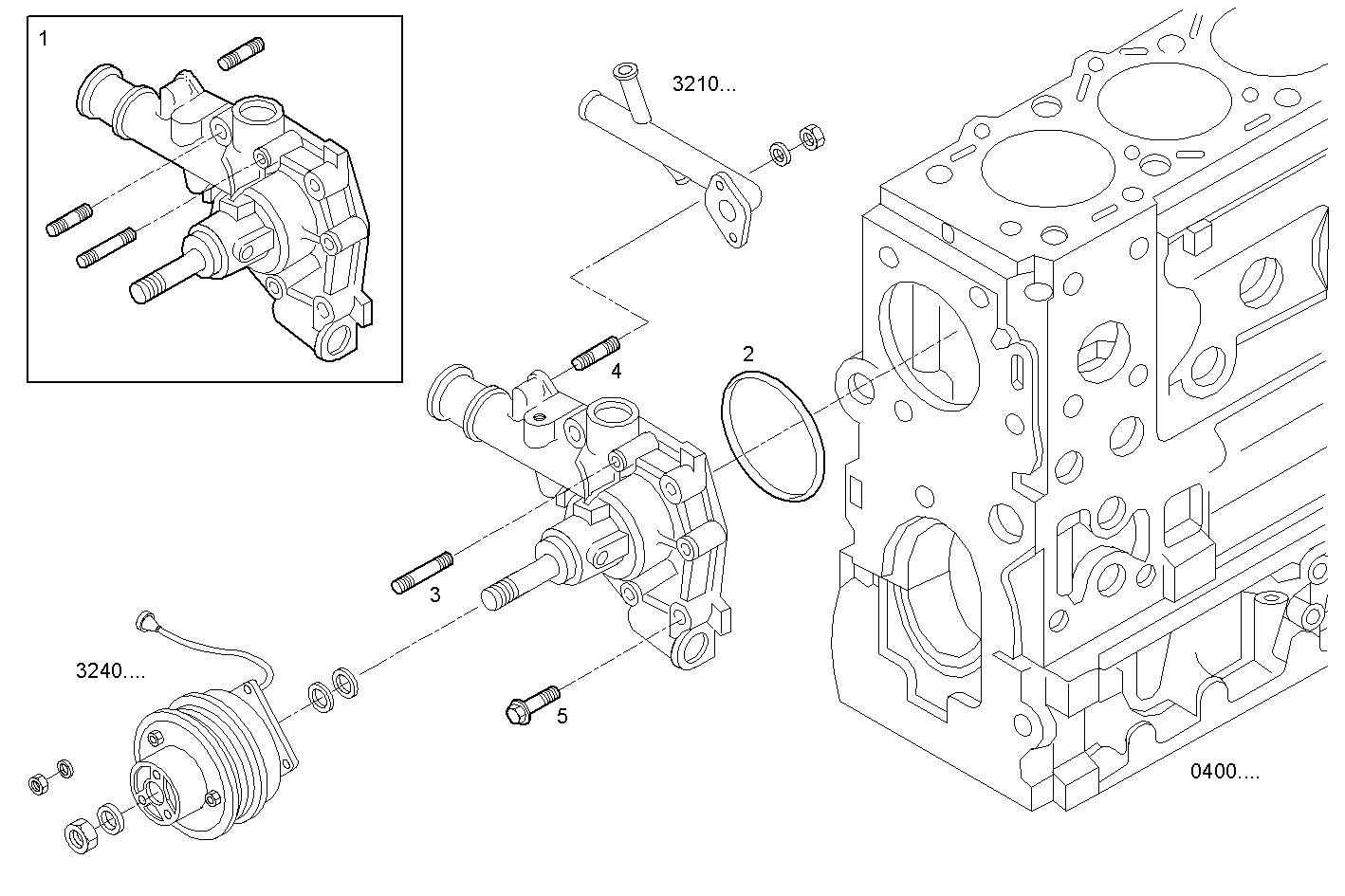

WATER PUMP
8140SRC31.35A001- 1D — 8140SRC31
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504021383 | WATER PUMP WATER PUMP | 1 | |
| 2 | 14472680 | O-RING O-RING | 1 | |
| 3 | 16745124 | STUD STUD | 4 | |
| 4 | 13543524 | STUD STUD | 2 | |
| 5 | 98494125 | HEXAGON BOLT HEXAGON BOLT | 4 |
8140SRC31.35A001- 1D — 8140SRC31
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504021383 | WATER PUMP WATER PUMP | 1 | |
| 2 | 14472680 | O-RING O-RING | 1 | |
| 3 | 16745124 | STUD STUD | 4 | |
| 4 | 13543524 | STUD STUD | 2 | |
| 5 | 98494125 | HEXAGON BOLT HEXAGON BOLT | 4 |
